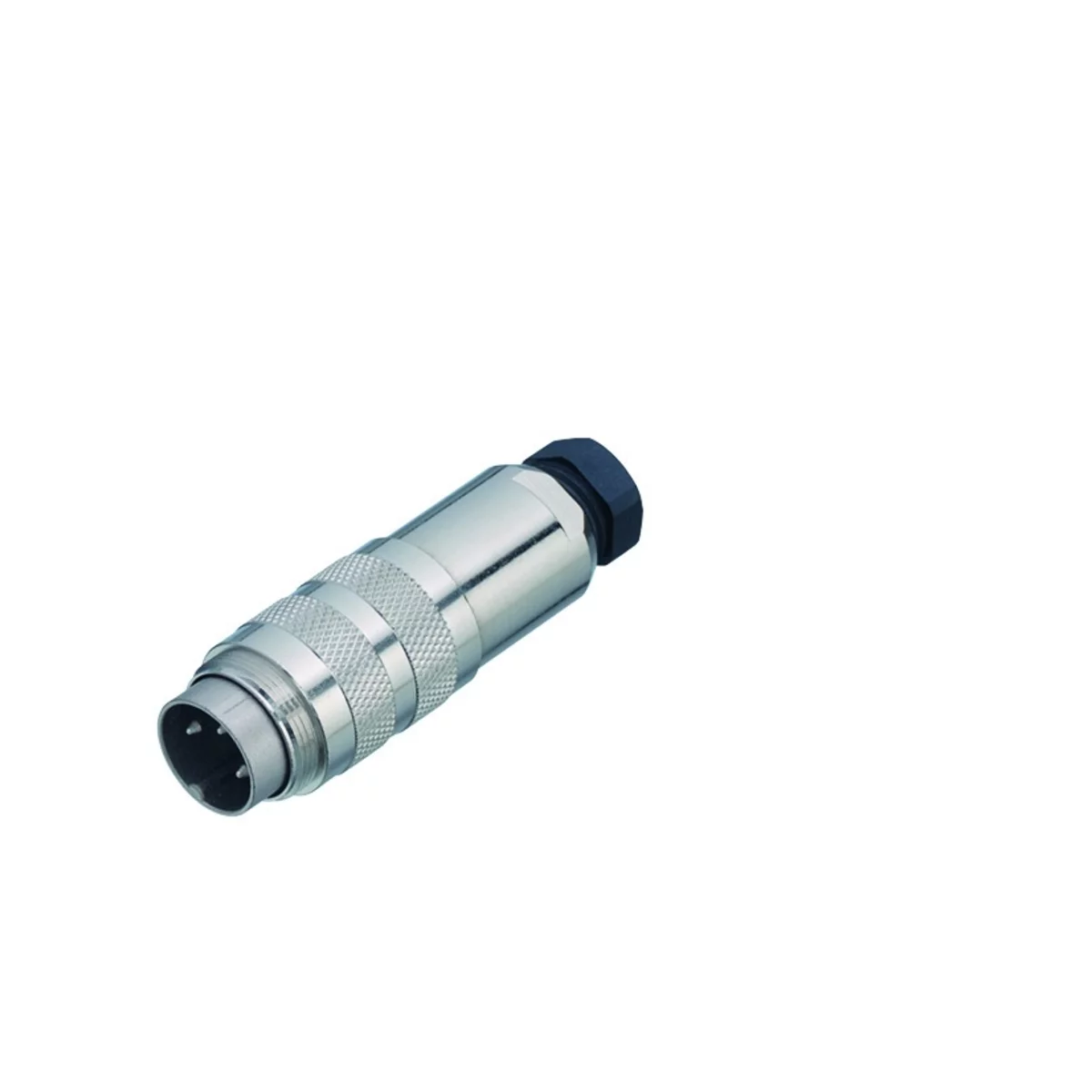

Male cable connector
With shielding ring, shieldable
UL-approval
99 5105 15 03
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Solder |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |

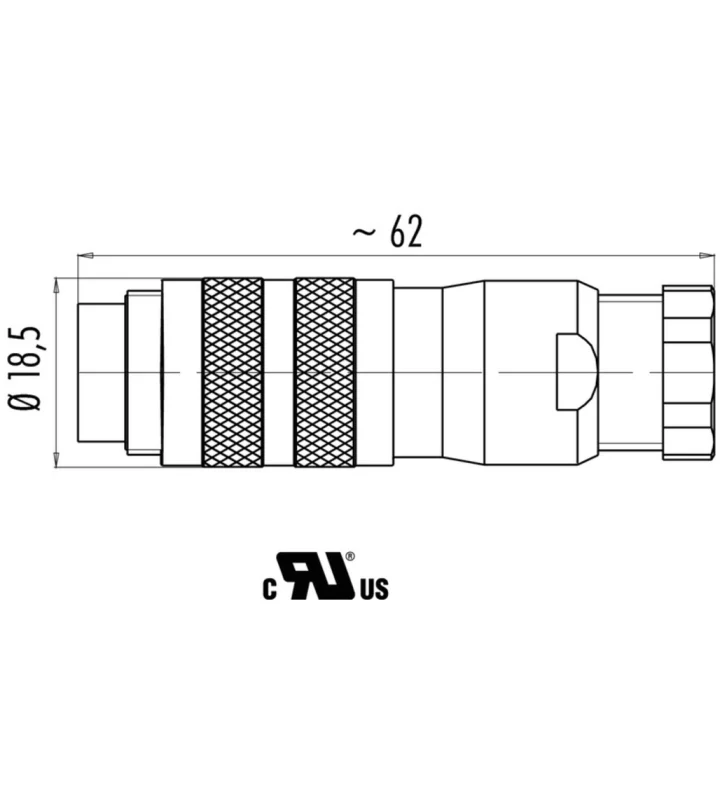

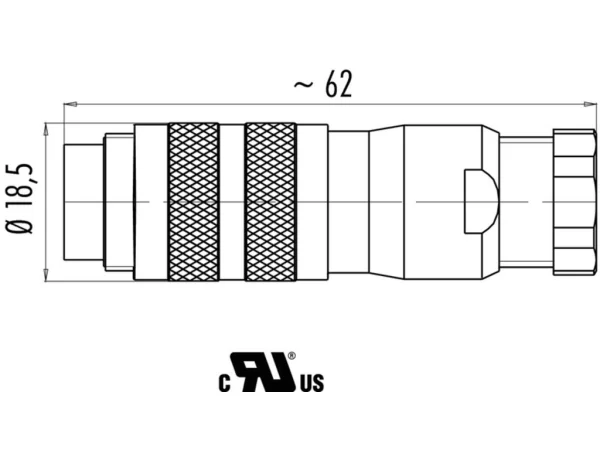

| Connector Diameter | 18.5 mm |
| Cable outlet | 4-6 mm |
| Wire-section | 0.75 mm² |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 7 A |
|---|---|
| Nominal voltage | 250 (32) V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | CuZn (Brass, nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 99 5101 15 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5109 15 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5113 15 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5117 15 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5121 15 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5125 15 07 | ≤5 A | 7 | 125 (32) V | 800 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5181 15 07 | ≤5 A | 7 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5171 15 08 | ≤5 A | 8 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5101 19 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5105 19 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5109 19 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5113 19 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5117 19 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 5 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5121 19 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5125 19 07 | ≤5 A | 7 | 125 (32) V | 800 V | 5 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5171 19 08 | ≤5 A | 8 | 60 (32) V | 500 V | 5 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5129 15 12 | ≤5 A | 12 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5451 15 14 | ≤5 A | 14 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5461 15 19 | ≤5 A | 19 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5495 15 24 | ≤5 A | 24 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.14 mm² |
