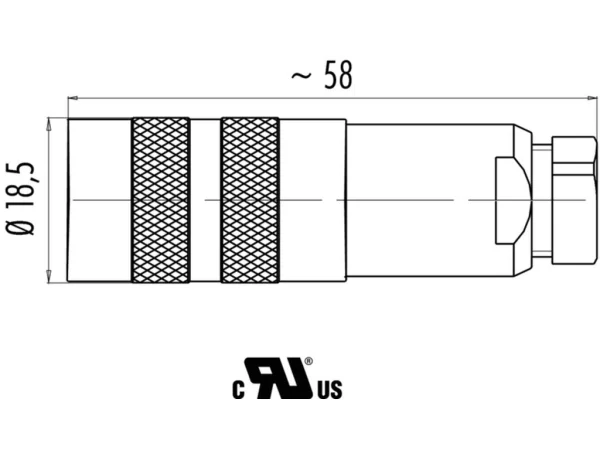

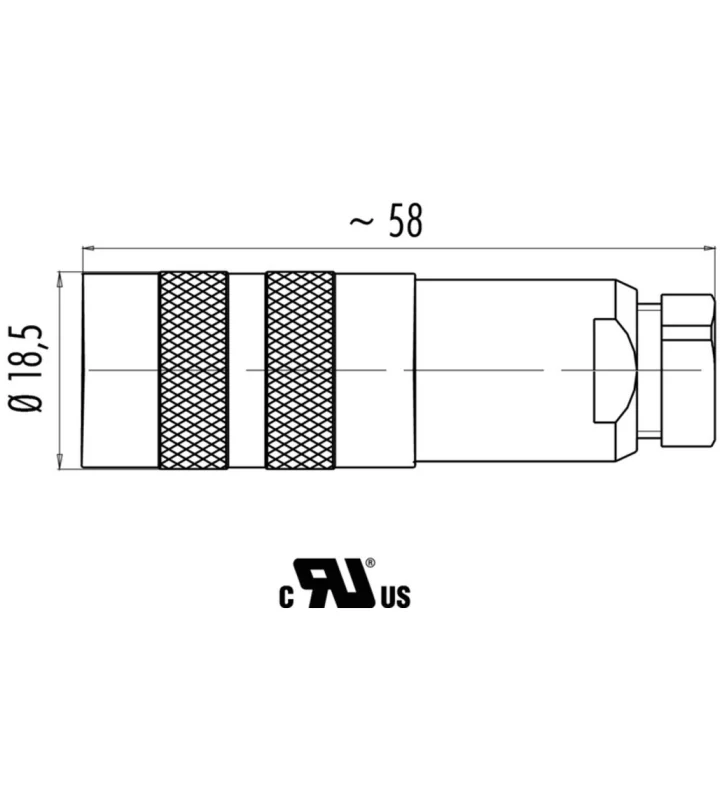

Female cable connector
With cable clamp, shieldable
UL-approval
99 5122 09 06
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423 |
| Gender | Female |
| Number of contacts | 6 |
| Contact terminal | Solder |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 18.5 mm |
| Cable outlet | 4-6 mm |
| Wire-section | 0.75 mm² |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 250 (32) V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | CuZn (Brass, nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 99 5102 00 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5106 00 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5110 00 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5114 00 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5118 00 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5122 00 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5126 00 07 | ≤5 A | 7 | 125 (32) V | 800 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5182 00 07 | ≤5 A | 7 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5172 00 08 | ≤5 A | 8 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5102 09 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5106 09 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5110 09 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5114 09 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 3 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5118 09 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5126 09 07 | ≤5 A | 7 | 125 (32) V | 800 V | 3 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5172 09 08 | ≤5 A | 8 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5130 00 12 | ≤5 A | 12 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5452 00 14 | ≤5 A | 14 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5462 00 19 | ≤5 A | 19 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5496 00 24 | ≤5 A | 24 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.14 mm² |
