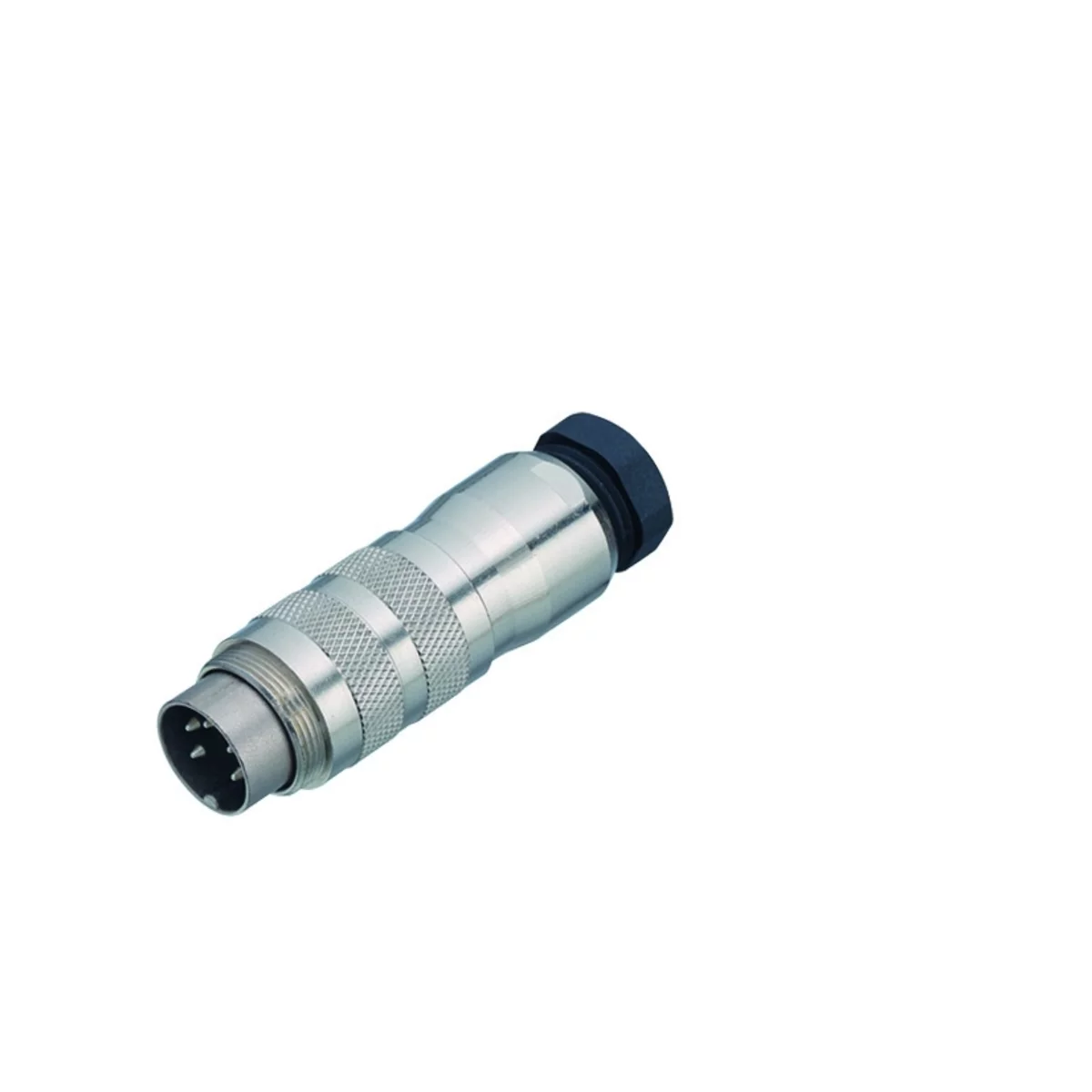

Male cable connector
With shielding ring, shieldable
UL-approval
99 5681 15 07
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423 |
| Gender | Male |
| Number of contacts | 7 |
| Contact terminal | Solder |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |

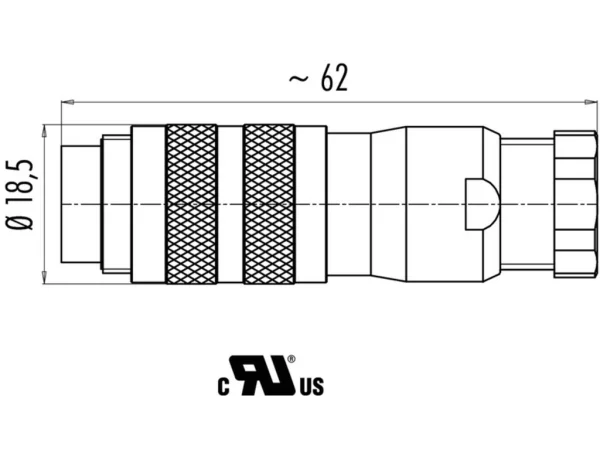

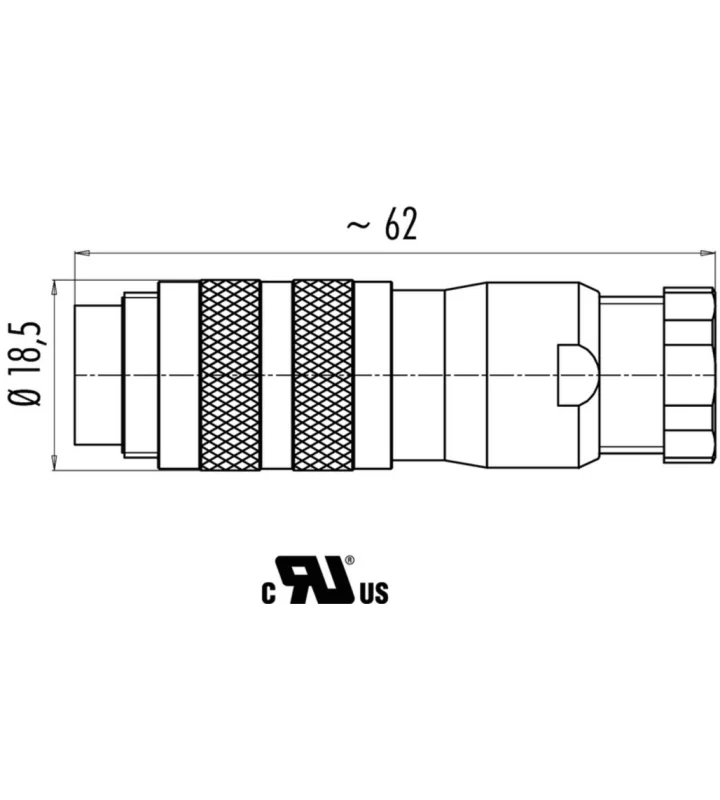

| Connector Diameter | 18.5 mm |
| Cable outlet | 6-8 mm |
| Wire-section | 0.75 mm² |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 60 (32) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | CuZn (Brass, nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 99 5601 15 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5605 15 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5609 15 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5613 15 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5617 15 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5621 15 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 0.75 mm² |
| 99 5625 15 07 | ≤5 A | 7 | 125 (32) V | 800 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5671 15 08 | ≤5 A | 8 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | ≤200 V | 0.75 mm² |
| 99 5601 19 02 | >5 - ≤10 A | 2 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5605 19 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5609 19 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5613 19 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5617 19 05 | >5 - ≤10 A | 5 | 60 (32) V | 500 V | 5 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5621 19 06 | ≤5 A | 6 | 250 (32) V | 1500 V | 5 mΩ | Au (Gold) | >200 - ≤400 V | 0.75 mm² |
| 99 5625 19 07 | ≤5 A | 7 | 125 (32) V | 800 V | 5 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5671 19 08 | ≤5 A | 8 | 60 (32) V | 500 V | 5 mΩ | Au (Gold) | ≤200 V | 0.75 mm² |
| 99 5629 15 12 | ≤5 A | 12 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5651 15 14 | ≤5 A | 14 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5455 15 16 | ≤5 A | 16 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5661 15 19 | ≤5 A | 19 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.25 mm² |
| 99 5695 15 24 | ≤5 A | 24 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | ≤200 V | 0.14 mm² |
