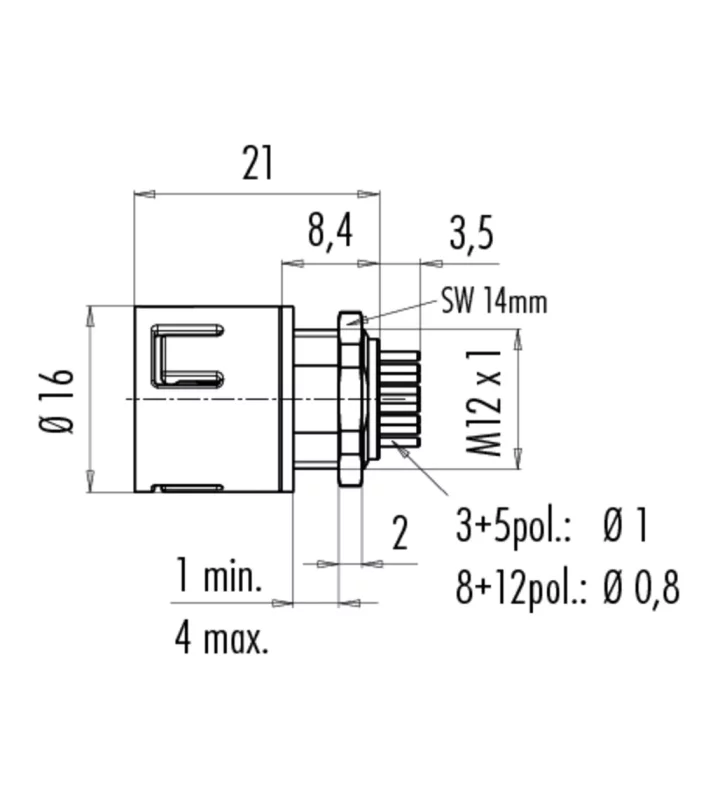

Male panel mount connector
With dip solder termination
Lightgrey
99 9107 490 03
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 720 Medical |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Snap-in |
| Connector Diameter | 16 mm |
Electrical parameters
| Nominal current | 7 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PA (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 99 9115 490 05 | ≤5 A | 5 | 125 V | 1500 V | ≤200 V |
| 99 9127 490 08 | ≤5 A | 8 | 125 V | 1500 V | ≤200 V |
| 99 9135 490 12 | ≤5 A | 12 | 60 V | 800 V | ≤200 V |
