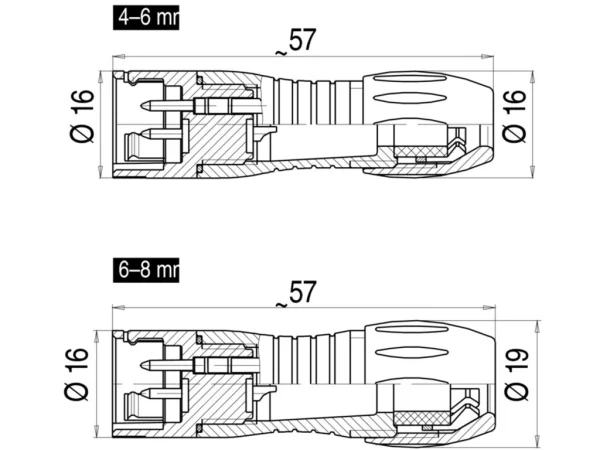

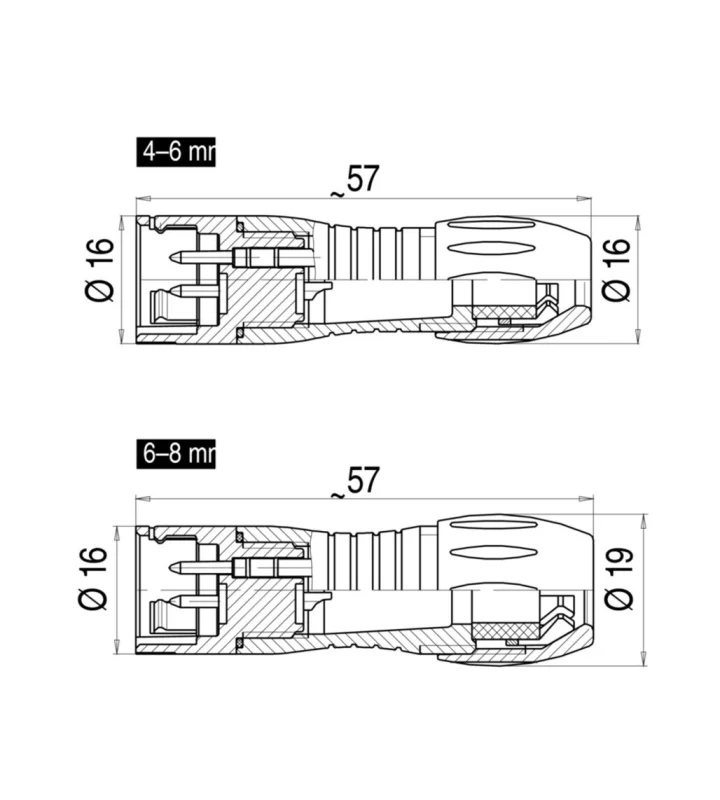

Male cable connector
Color code blue
99 9113 60 05
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 720 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Snap-in |
| Mating cycles | >500 |
| Connector Diameter | 16 mm |
| Cable outlet | 4-6 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PA (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Connector Diameter (mm) | Nominal Voltage | Connector Diameter | Cable outlet | Wire-section |
|---|---|---|---|---|---|---|---|---|---|
| 99 9105 60 03 | >5 - ≤10 A | 3 | 250 V | 2500 V | 16 mm | >200 - ≤400 V | 16 mm | 4-6 mm | 0.75 mm² |
| 99 9125 60 08 | ≤5 A | 8 | 125 V | 2500 V | 16 mm | ≤200 V | 16 mm | 4-6 mm | 0.25 mm² |
| 99 9133 62 12 | ≤5 A | 12 | 60 V | 800 V | 19 mm | ≤200 V | 19 mm | 6-8 mm | 0.25 mm² |
