Female panel mount connector
Color code red
99 9228 050 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 620 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Snap-in |
| Mating cycles | >500 |

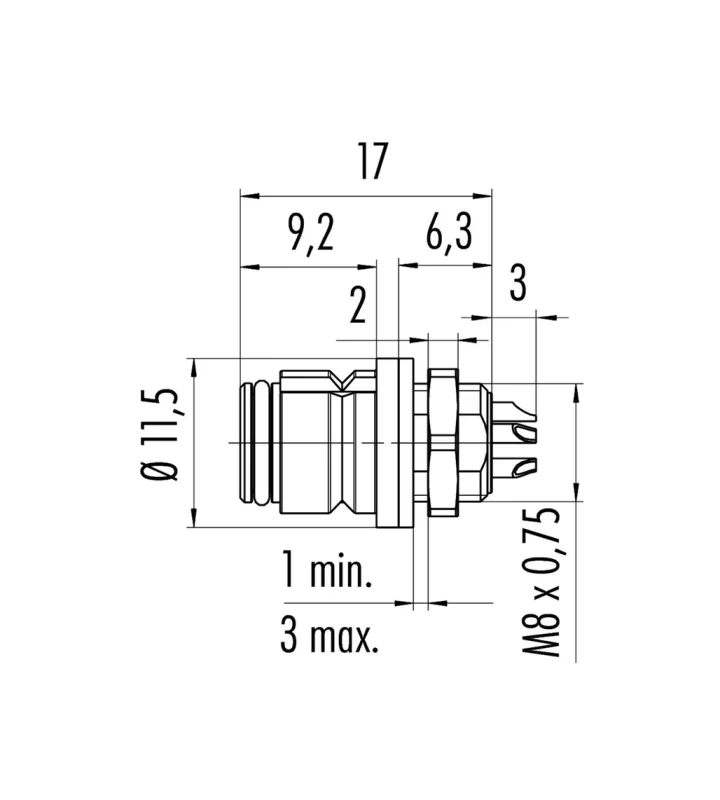

| Connector Diameter | 11.5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 63 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PA (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage |
|---|---|---|---|
| 99 9208 050 03 | 3 | 125 V | 1500 V |
| 99 9212 050 04 | 4 | 125 V | 1500 V |
| 99 9216 050 05 | 5 | 63 V | 800 V |
