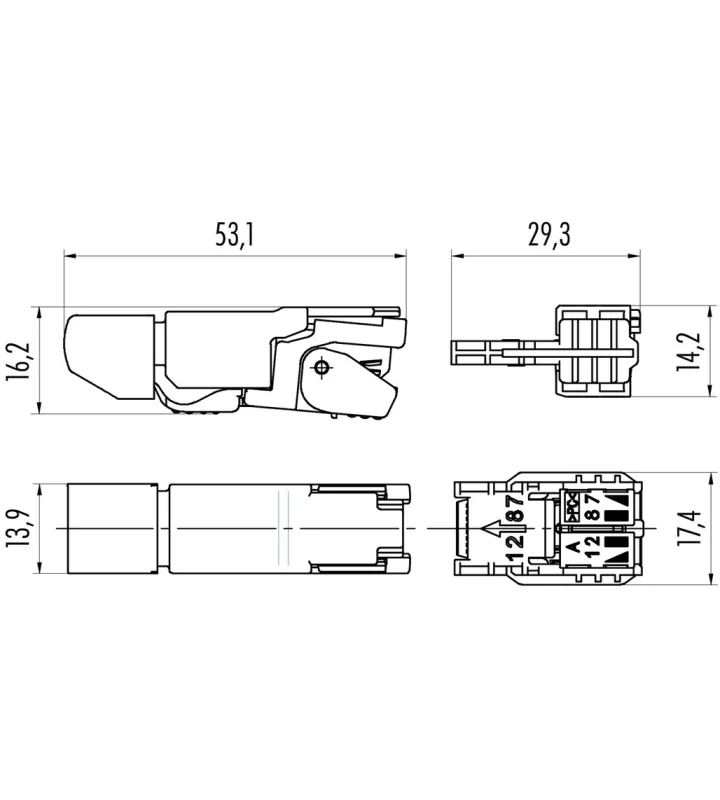

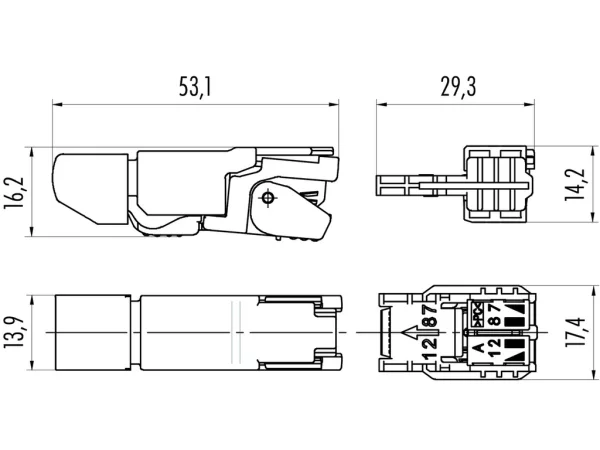

RJ45 male connector
Shieldable, CAT 6A
99 9687 805 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 825 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Penetration technology |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP20 |
| Locking system | Snap-in lock |
| Mating cycles | >750 |
| Cable outlet | 5-9 mm |
| Wire gauge | AWG26/1 - AWG 24/1, AWG27/7 - AWG24/7 |
Electrical parameters
| Nominal current | 1.3 A |
|---|---|
| Nominal voltage | 50 DC |
| Max. contact resistance | 20 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | III |
Material
| Material group | III a |
|---|---|
| Material of insert | PC |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | Spring Steel |
| Plating | Au (Gold) |
Variations
| Item number | Wire gauge |
|---|---|
| 99 9687 810 08 | AWG 24/1 - AWG 22/1, AWG 27/7 - AWG 22/7 |
