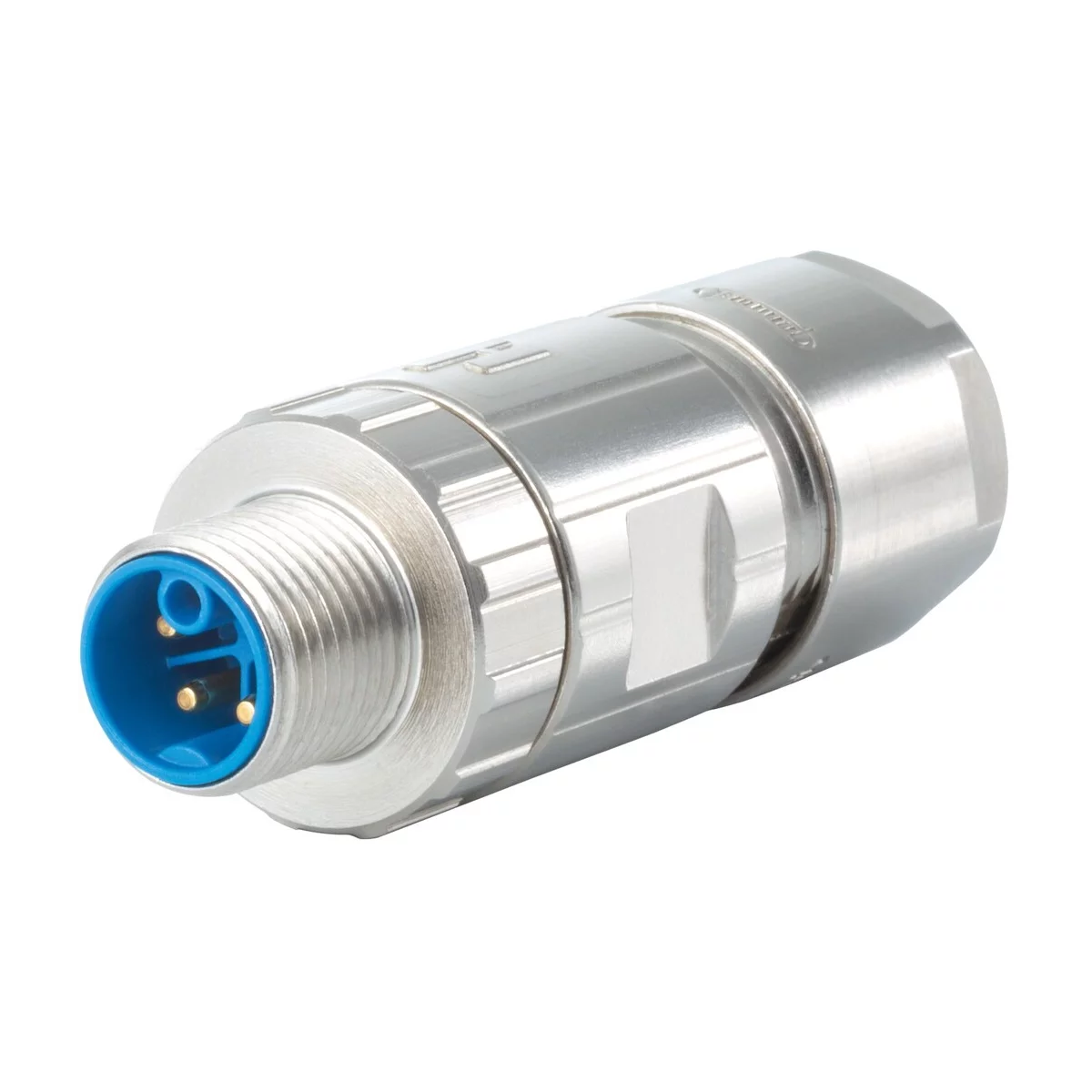

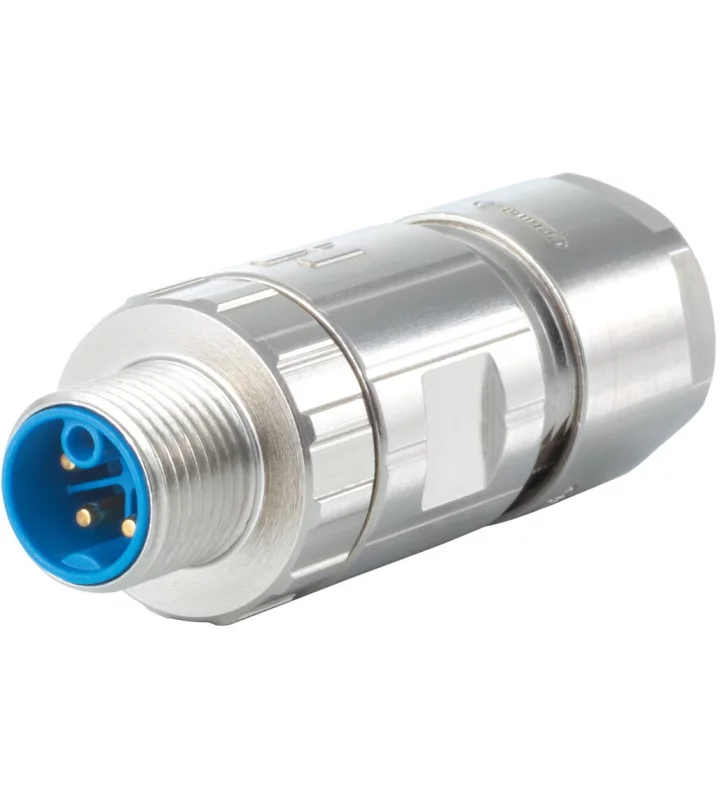

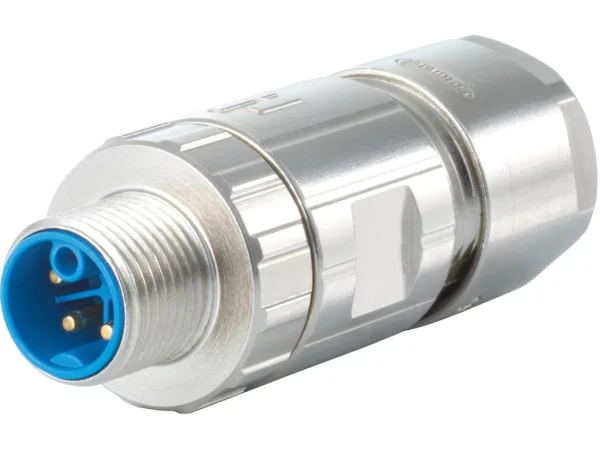

Straight Connector, Male Thread
K,L Coding
A712-7.K20.300.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M12 Power |
|---|---|
| Gender of required insert | Male |

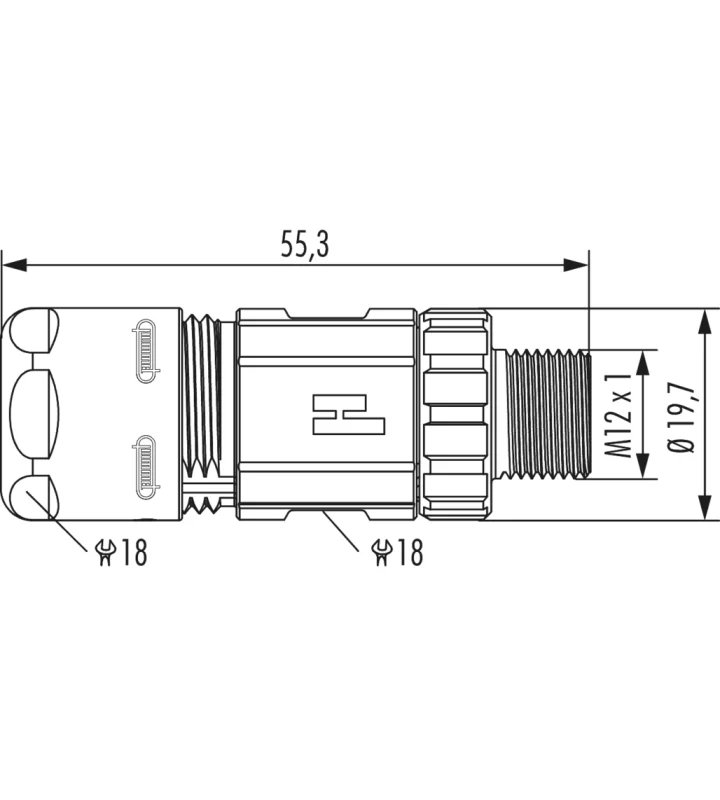

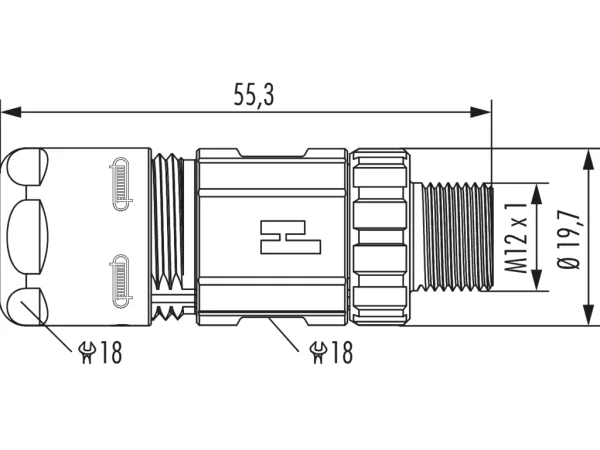

| Connector diameter | 19.7 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Cable diameter | 3-6 mm |
Material
| Housing material | Brass/Die Cast |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| A712-7.K20.400.000 | 5-9 mm | 5-9 mm |
| A712-7.K20.500.000 | 8-11 mm | 8-11 mm |
