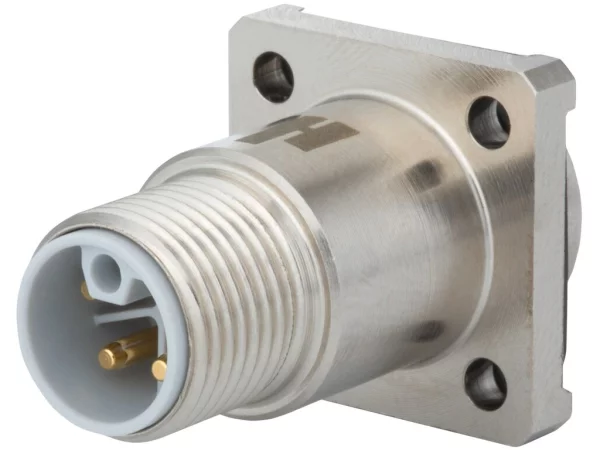

Panel Connector male thread, front mounting
K,L Coding
With flange 20x20mm, 4x2,7mm
A712-7.K40.000.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M12 Power |
|---|---|
| Gender of required insert | Male |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Size flange | 20x20 mm |
Material
| Housing material | Brass/Die Cast |
|---|---|
| Housing plating | Nickel plated |
