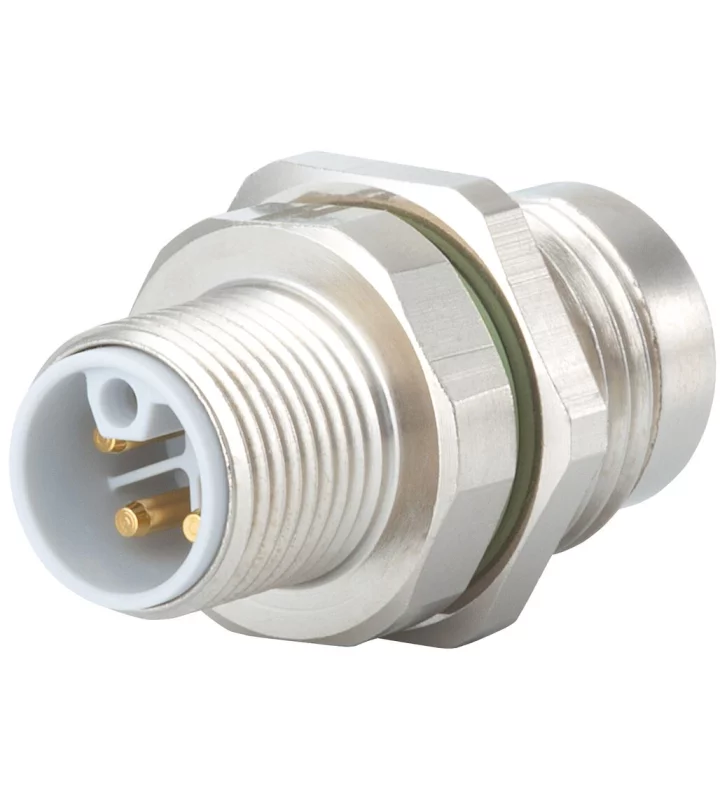

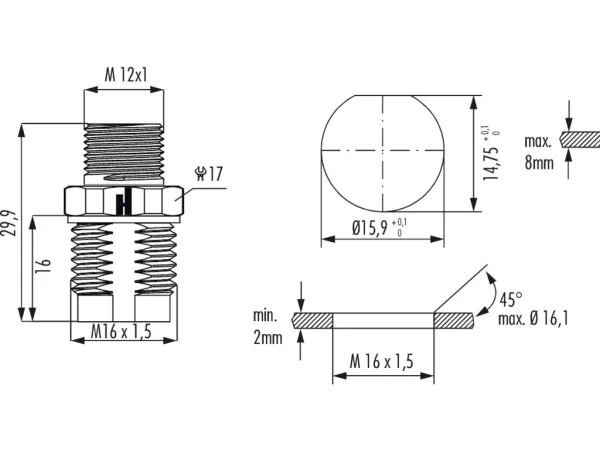

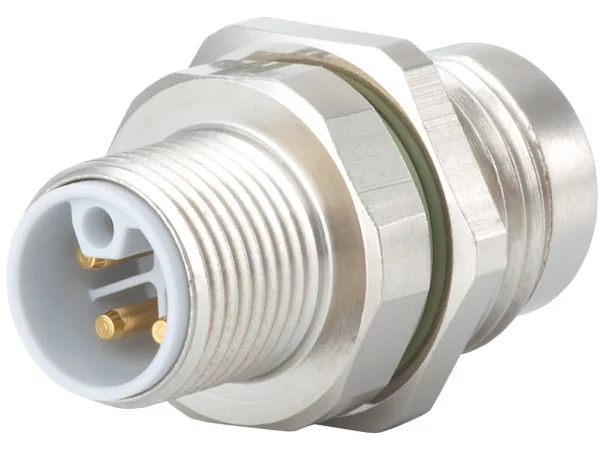

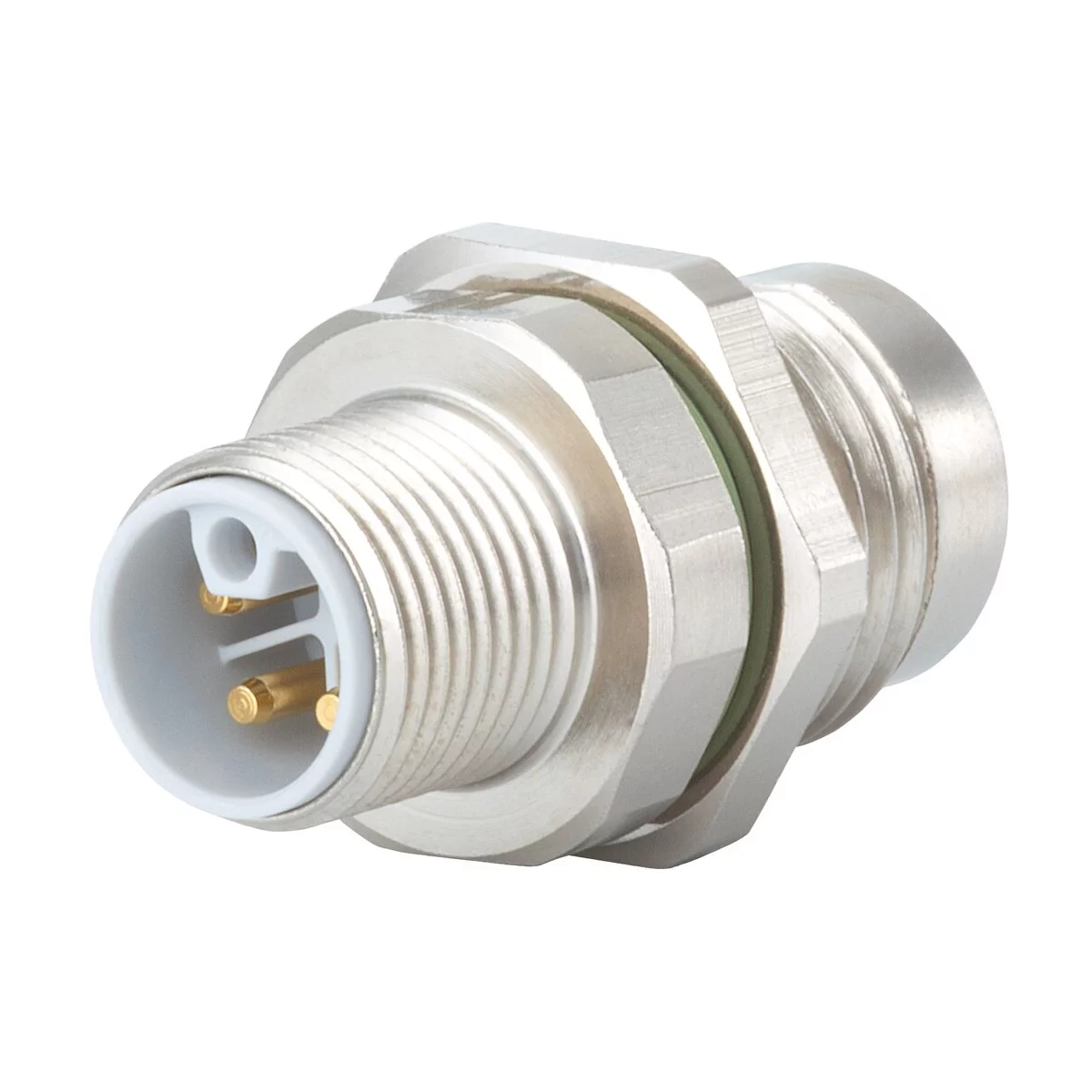

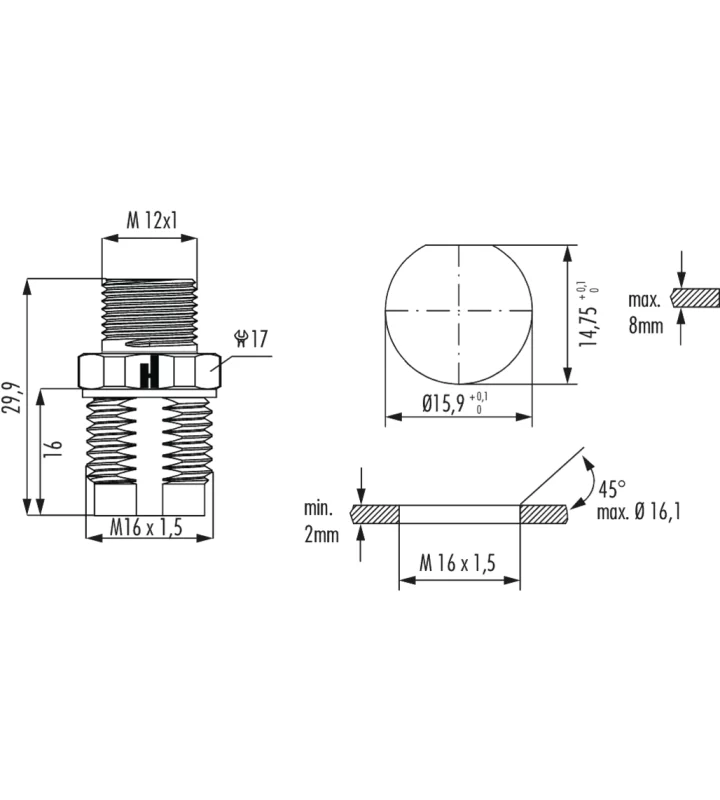

Panel connector male thread, single hole front mounted
K,L Coding
A712-7.K42.100.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M12 Power |
|---|---|
| Gender of required insert | Male |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Thread | M20 |
Material
| Housing material | Brass/Die Cast |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Upper temperature | Thread | Housing thread |
|---|---|---|---|
| A712-7.K42.000.000 | 125 °C | M16 | Male |
