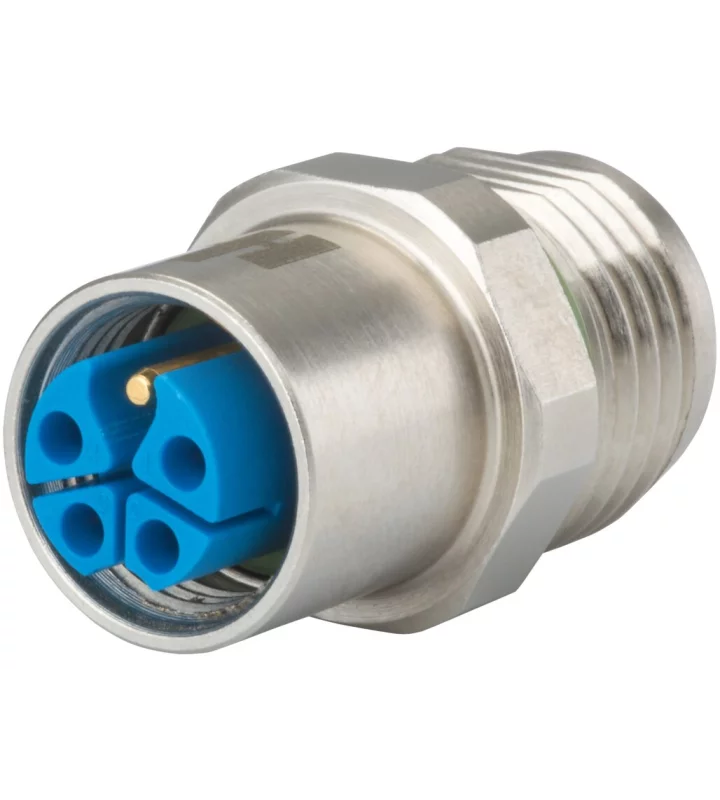

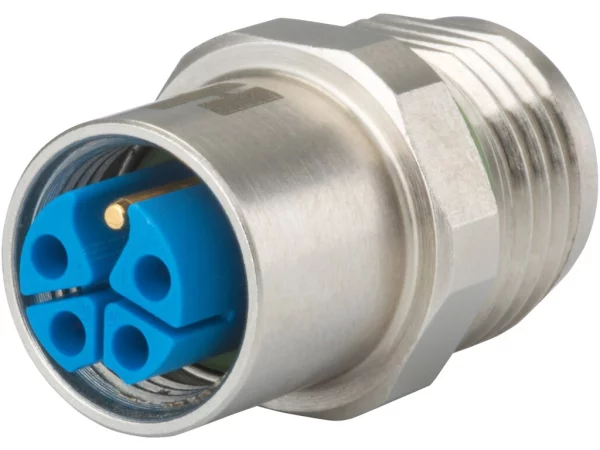

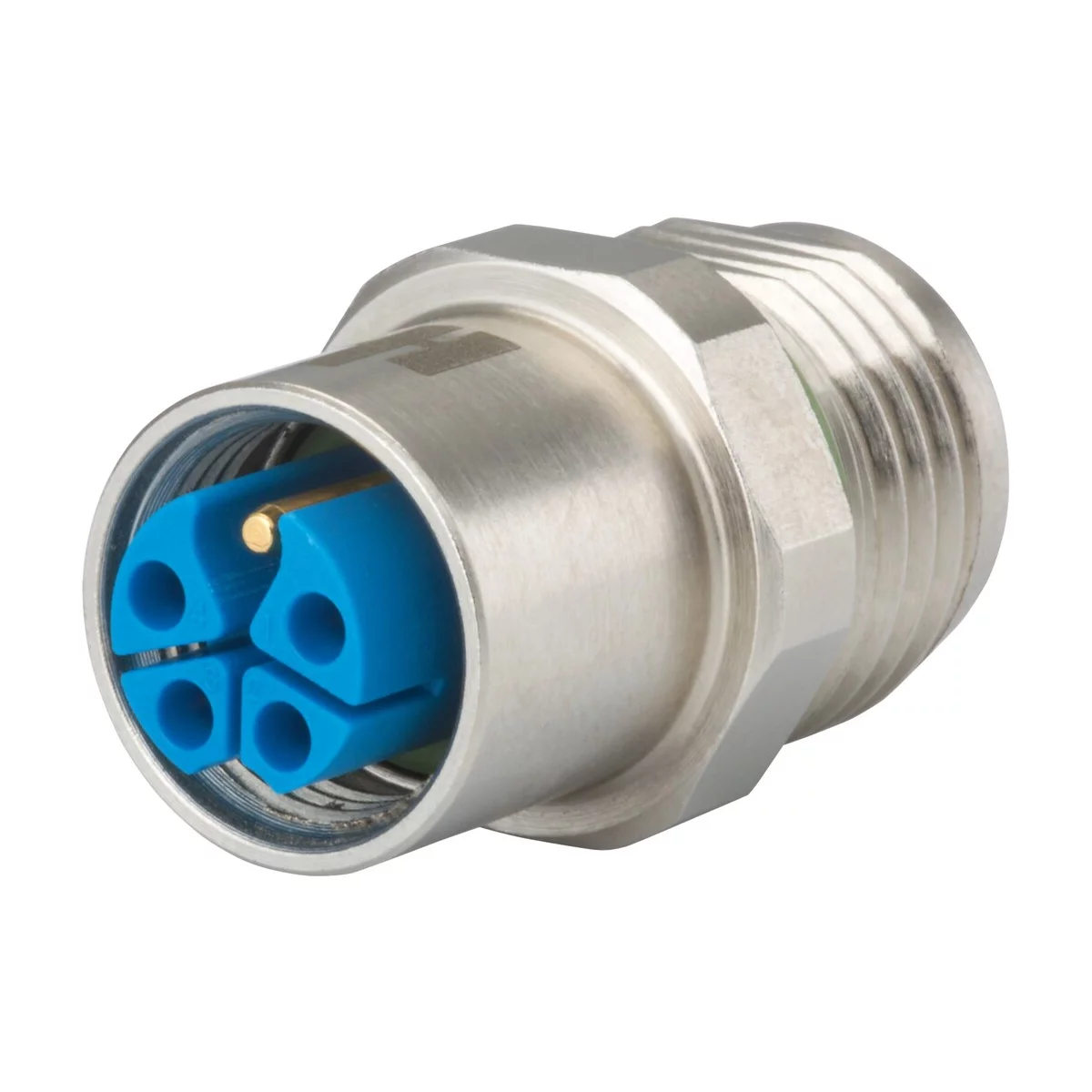

Panel connector female thread, single hole front mounted
K,L Coding, with lock nut "rotation protection"
A712-7.K44.000.00G
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M12 Power |
|---|---|
| Gender of required insert | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Thread | M16 |
Material
| Housing material | Brass/Die Cast |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Thread |
|---|---|
| A712-7.K44.100.00G | M20 |
