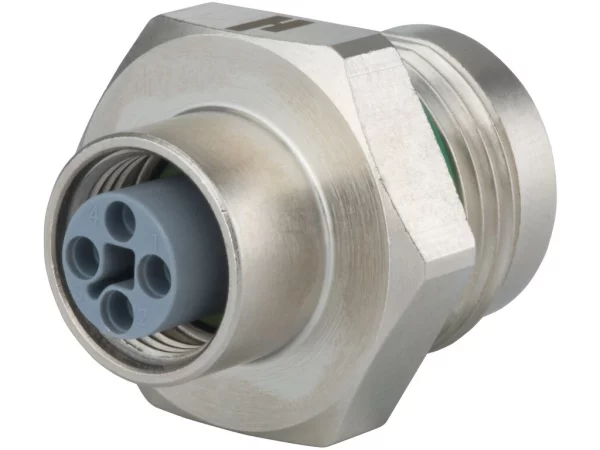

Panel connector female thread, single hole front mounted
S,T Coding
A712-7.S44.000.000
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M12 Power |
|---|---|
| Gender of required insert | Female |
| Upper temperature | 85 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Thread | M20 |
Material
| Housing material | Brass/Die Cast |
|---|---|
| Housing plating | Nickel plated |
