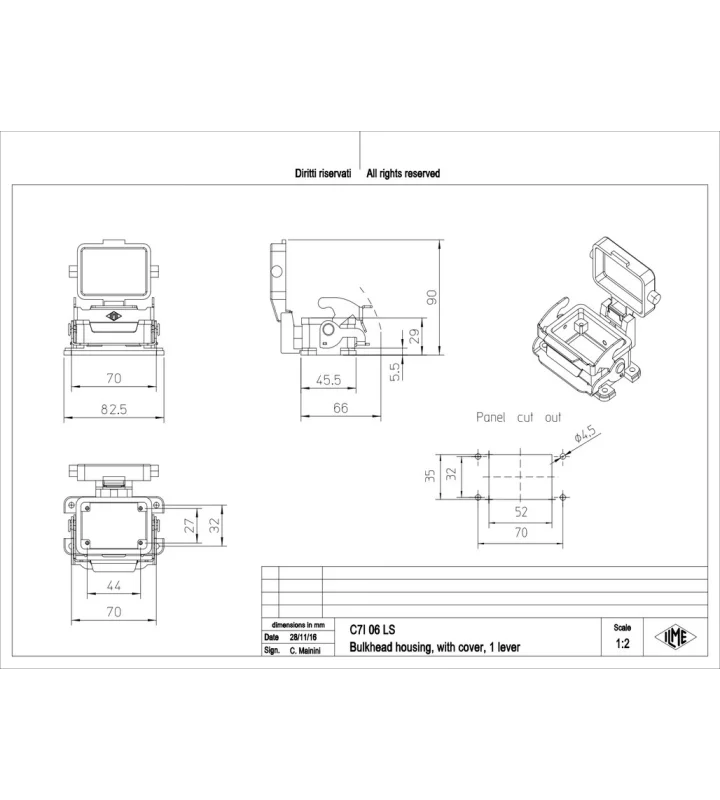

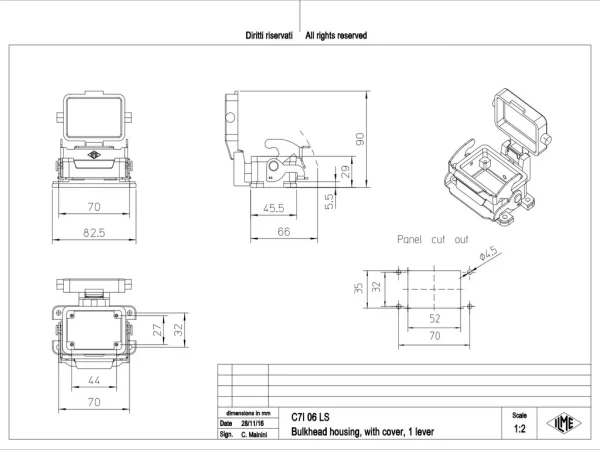

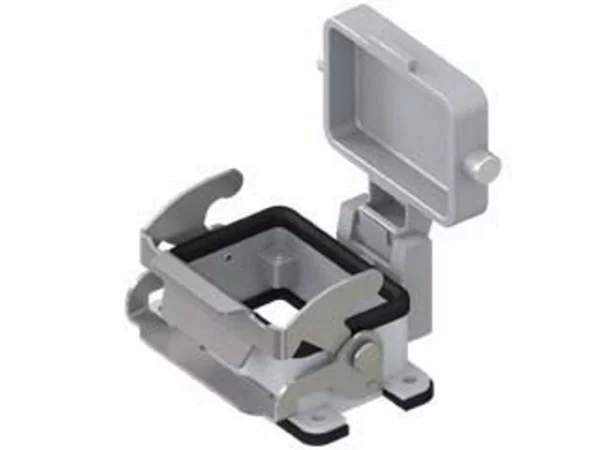

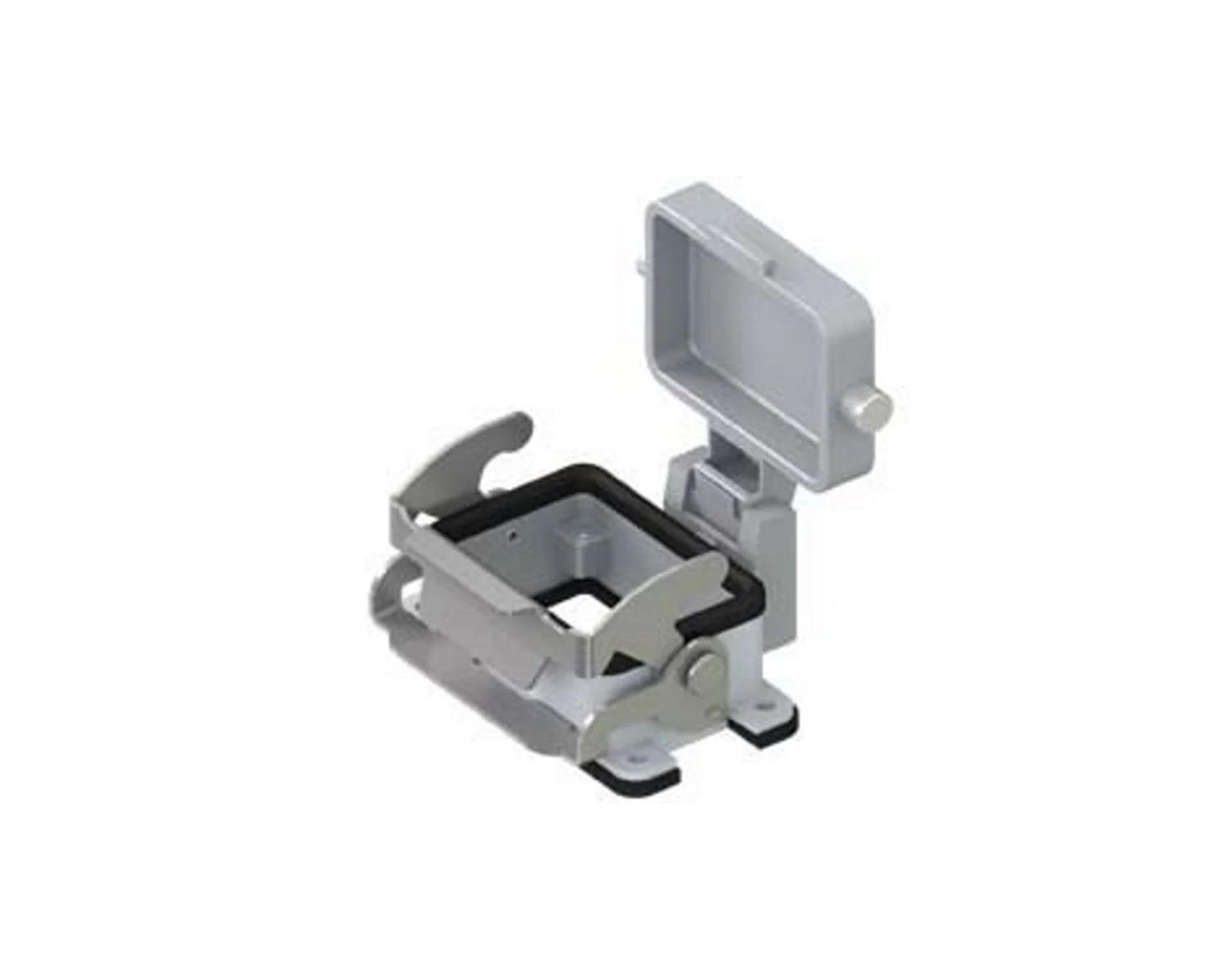

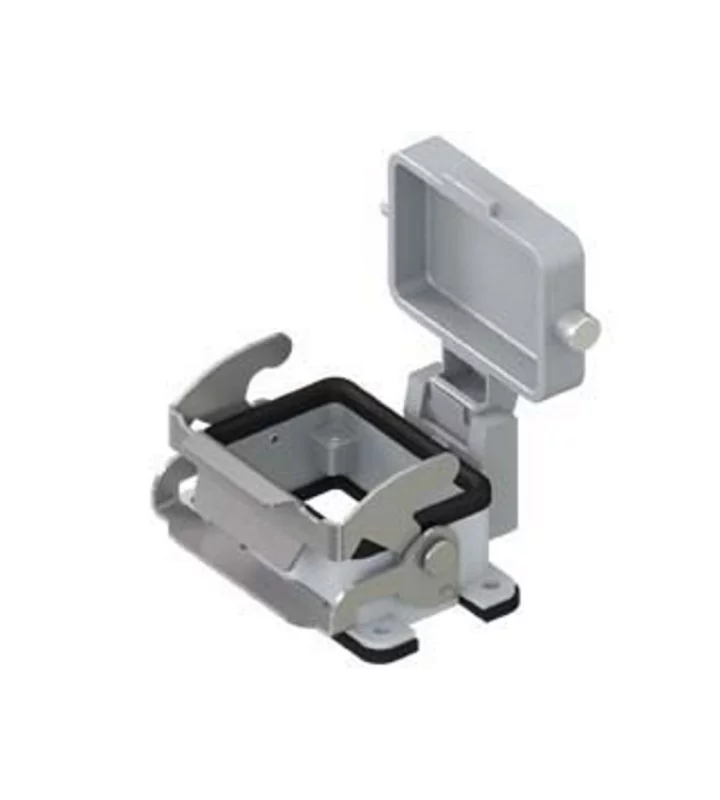

bulkhead mounting housing, size 44.27, V-TYPE alu, 1 lever, cover metal
C7I 06 LS
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 44.27 |
| Enclosure series | V-TYPE |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP67 / IP69 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 29 mm |
| Width | 45.5 mm |
| Length | 82.5 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
