hood, size 44.27, 180 °C alu, 2 pegs

CACR 06 L

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	44.27
Enclosure series	180°C
Closing type	With 2 pegs
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	without cable entries (to be drilled)
Position cable feed	Without cable entry

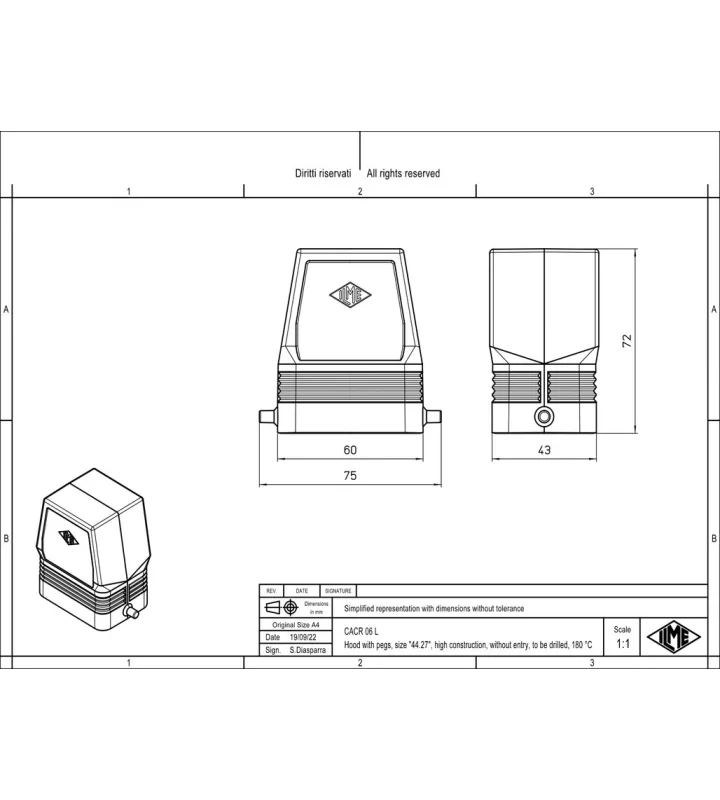

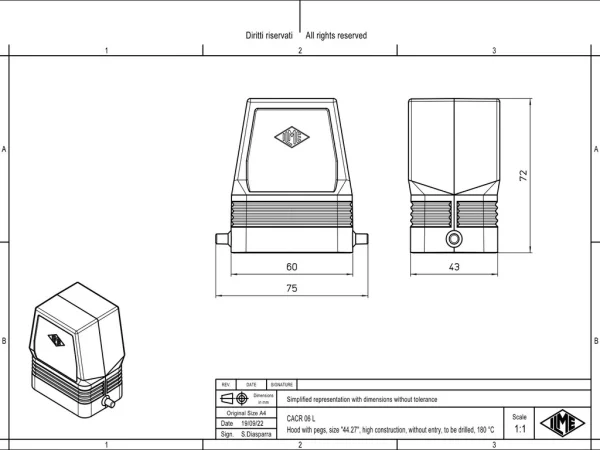

Height	72 mm
Width	43 mm
Length	75 mm

Material housing	Die cast aluminium alloy
