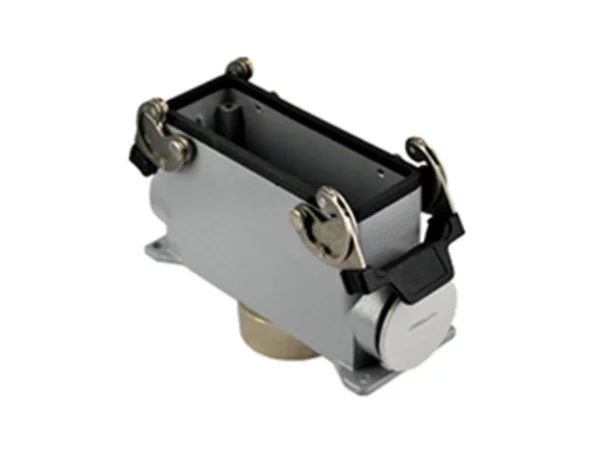

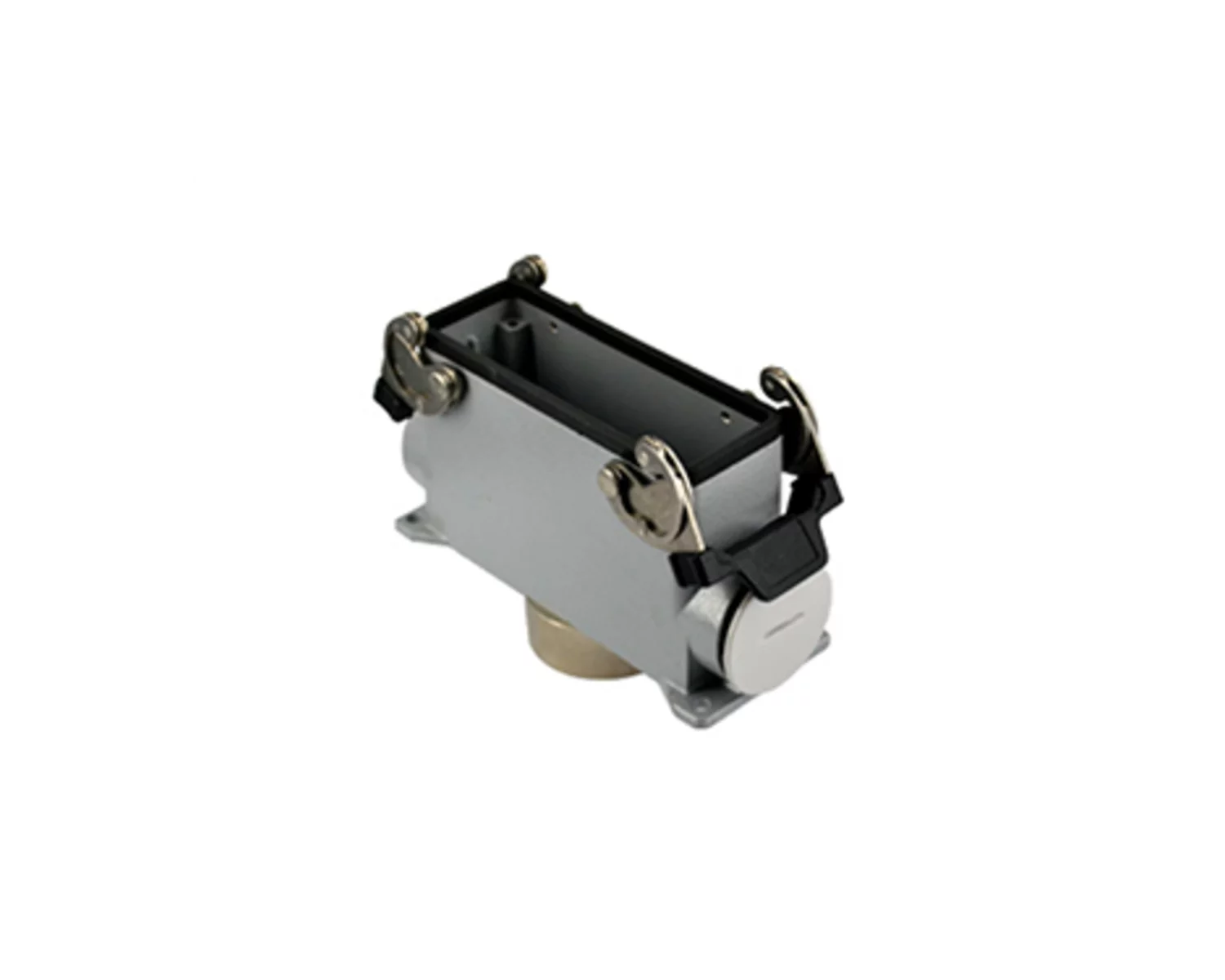

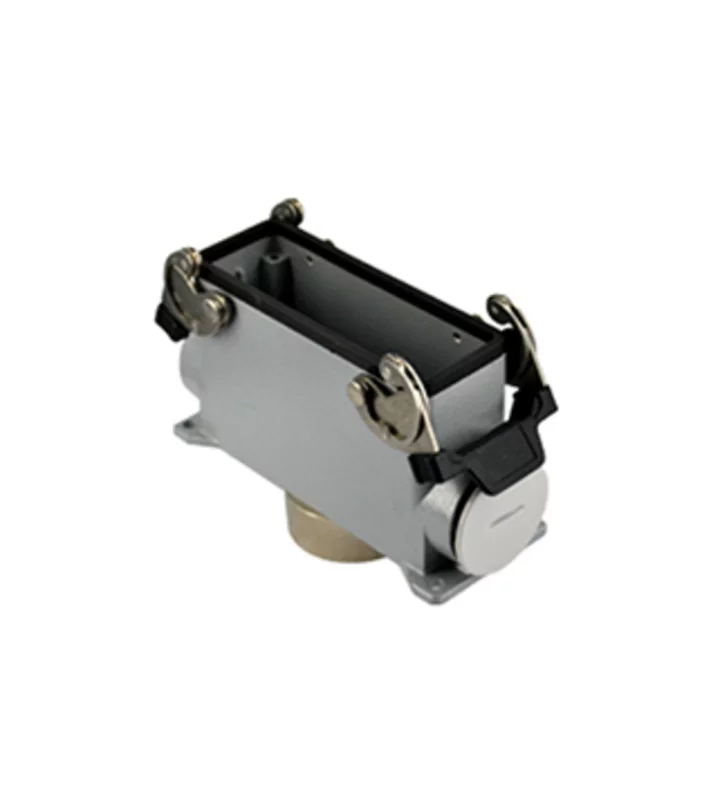

surface mounting housing, high, size 104.27, C-TYPE alu, 2 levers, 1xPG29 bottom, 1xPG36 external

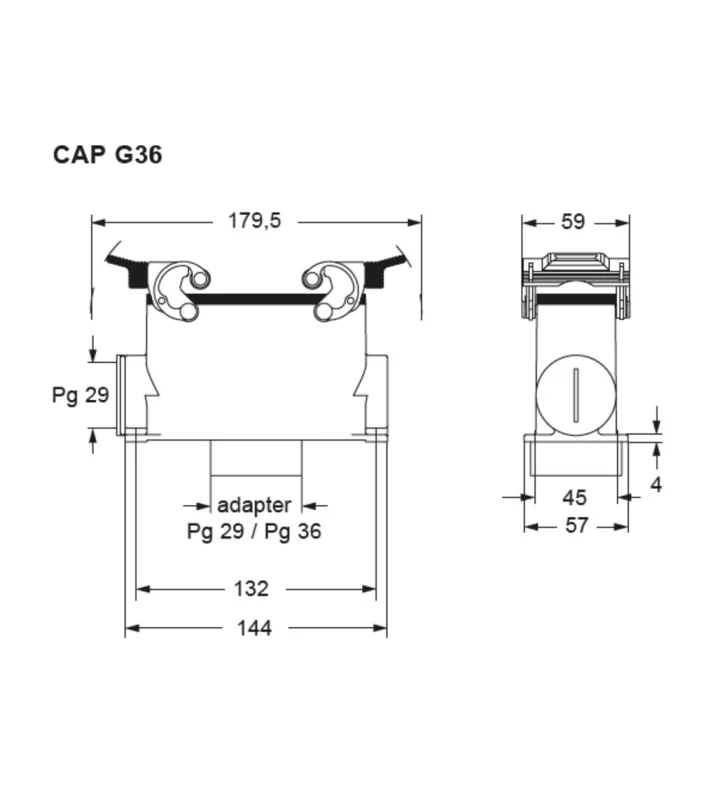

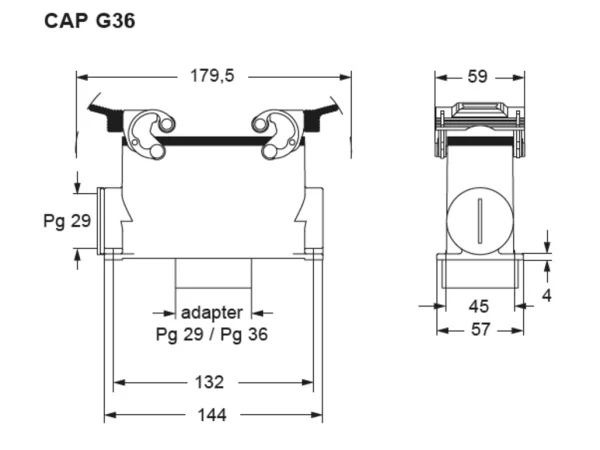

CAP 24 G36

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	104.27
Enclosure series	C-TYPE
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	bottom cable entry
Cable entry size	Pg36
Position cable feed	Below
Height	77 mm
Width	45 mm
Length	132 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
