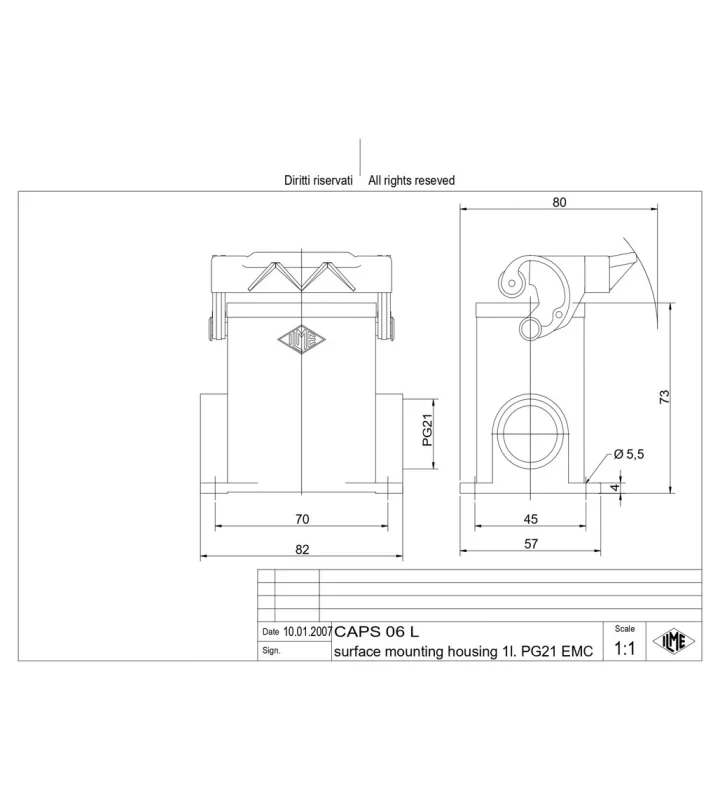

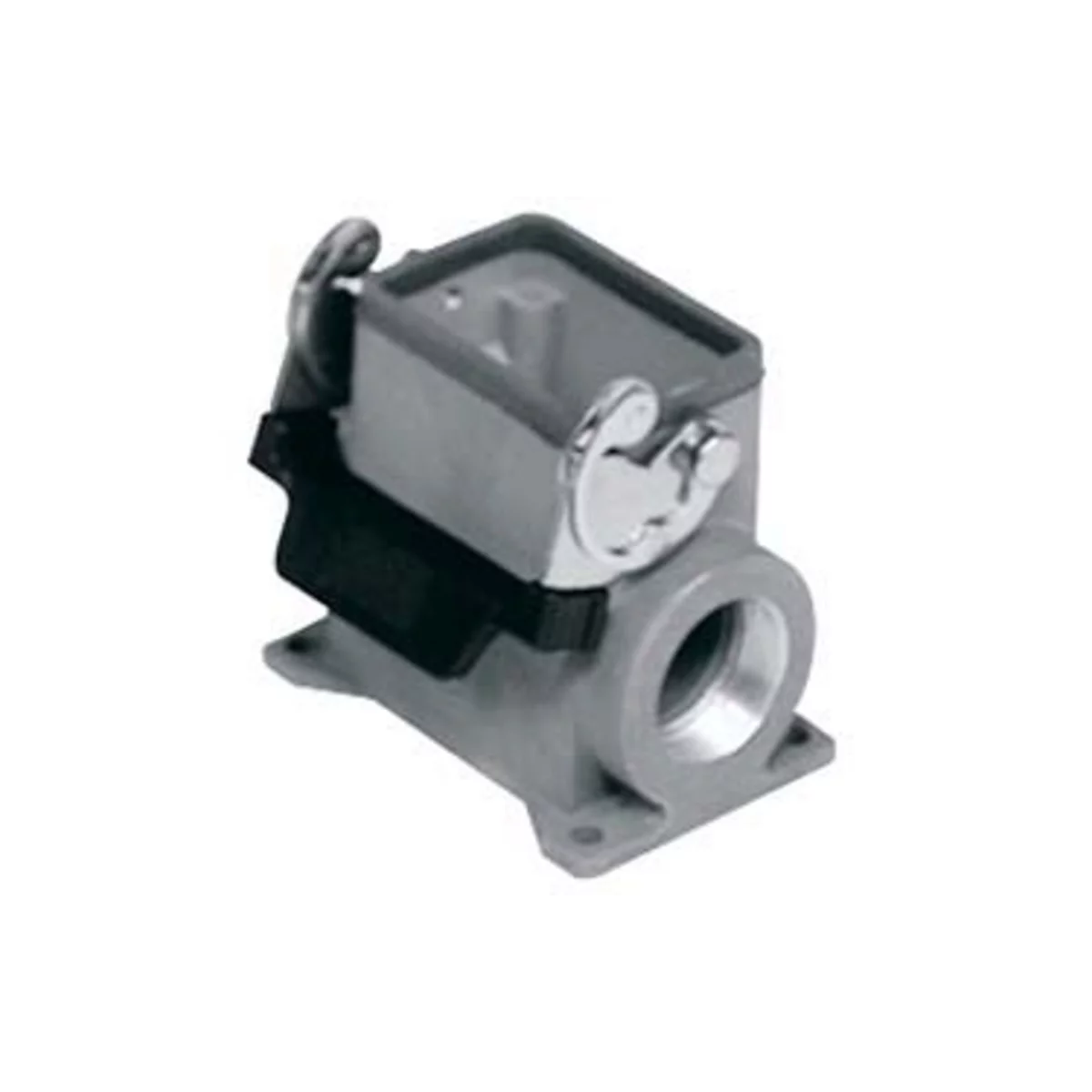

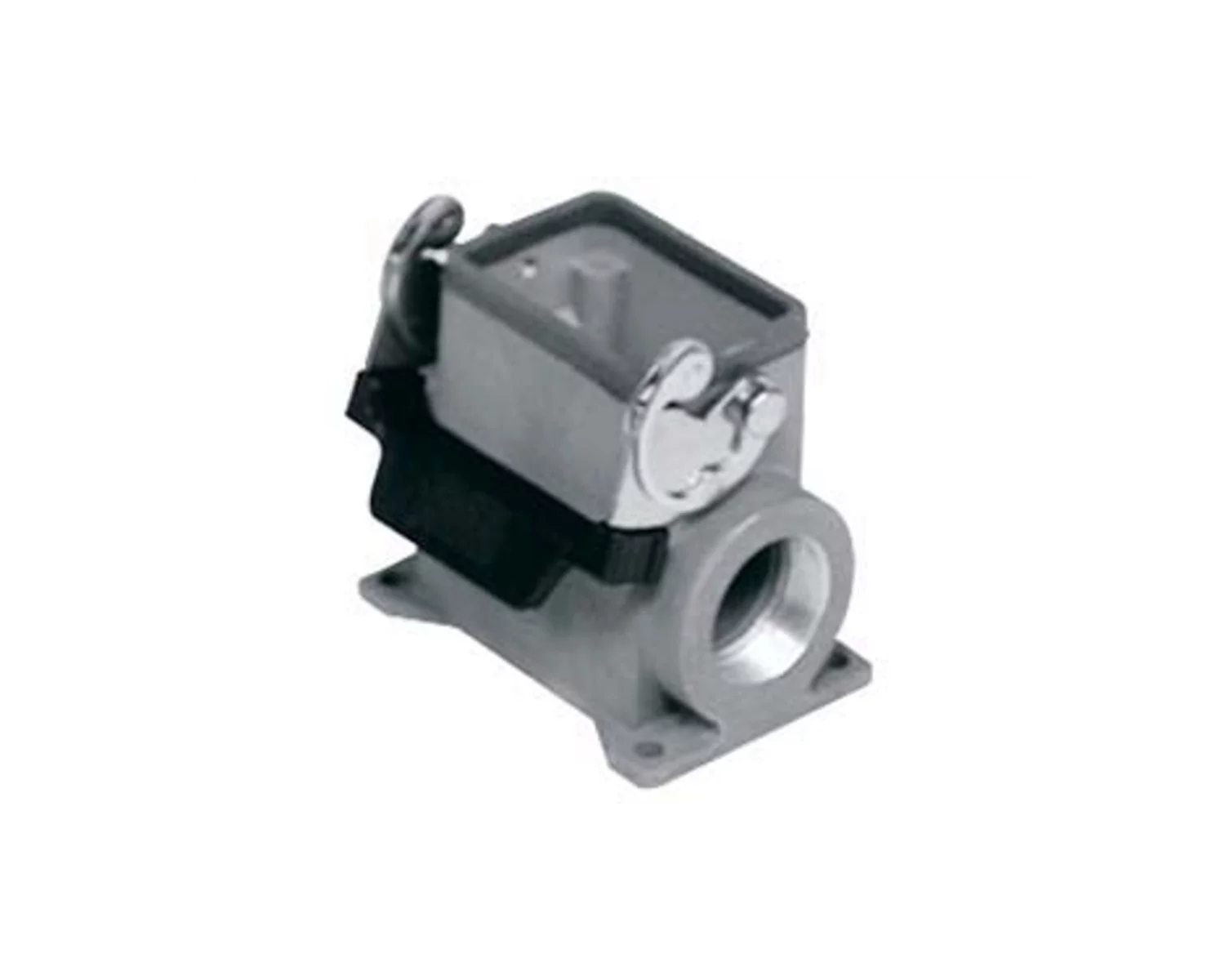

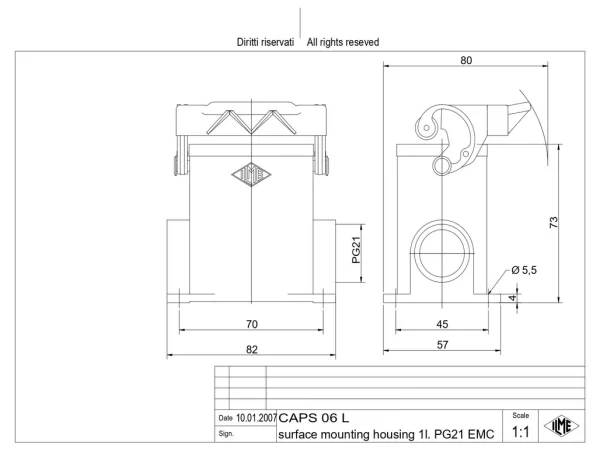

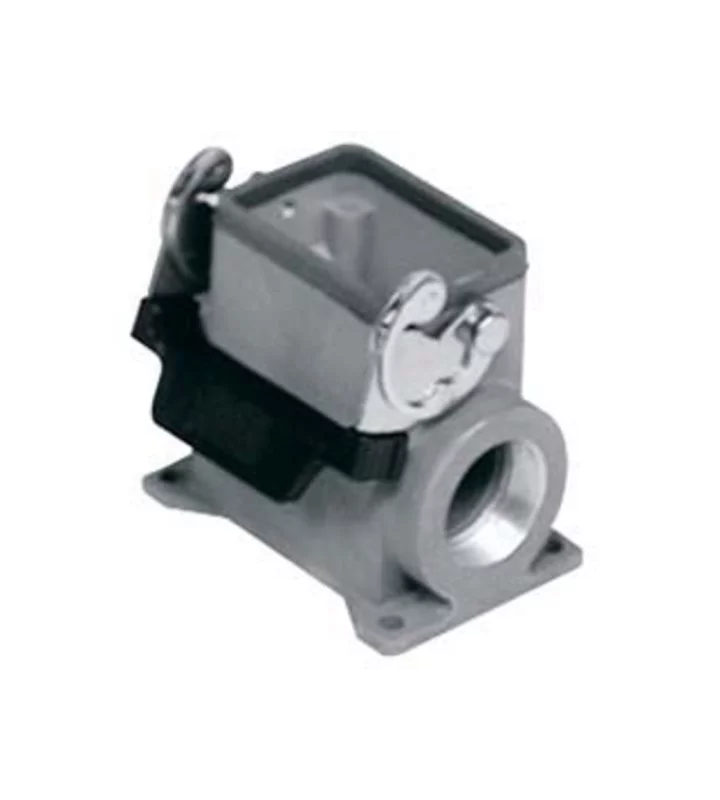

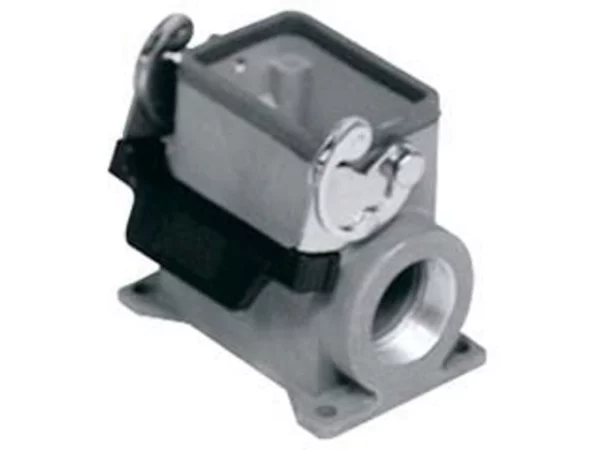

surface mounting housing, high, size 44.27, EMC alu, 1 lever, 1xPG21 side

CAPS 06 L

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	44.27
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	Pg21
Position cable feed	Side entry
Height	74 mm
Width	57 mm
Length	82 mm

Material housing	Aluminium
Coating housing	With powder coating
Extra information	Corrosion resistant,EMC Version,UV resistant,With interlocking device
