hood, size 44.27, BIG alu, 2 pegs, extended terminal compartment

CBC 06 L

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	44.27
Enclosure series	BIG
Closing type	With 2 pegs
Locking mechanism	Single locking lever
Protection degree	IP66
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entries (to be drilled)
Position cable feed	Without cable entry

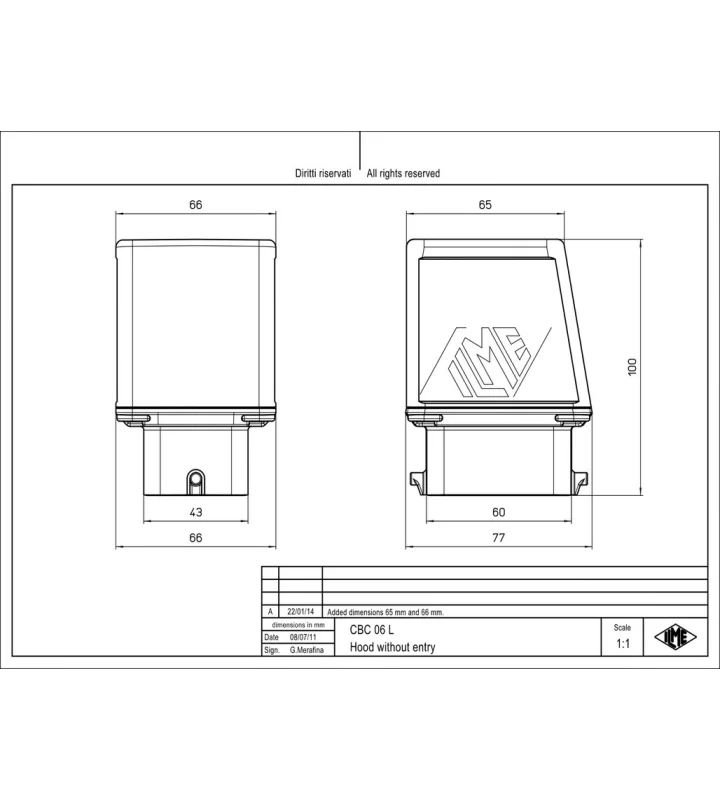

Height	100 mm
Width	66 mm
Length	77 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
Extra information	Corrosion resistant,UV resistant,With interlocking device
