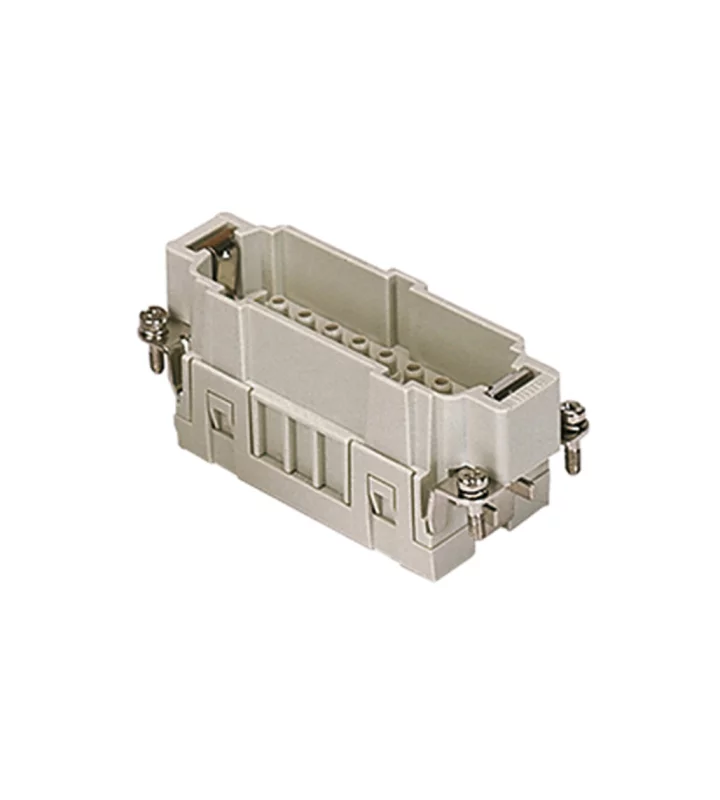

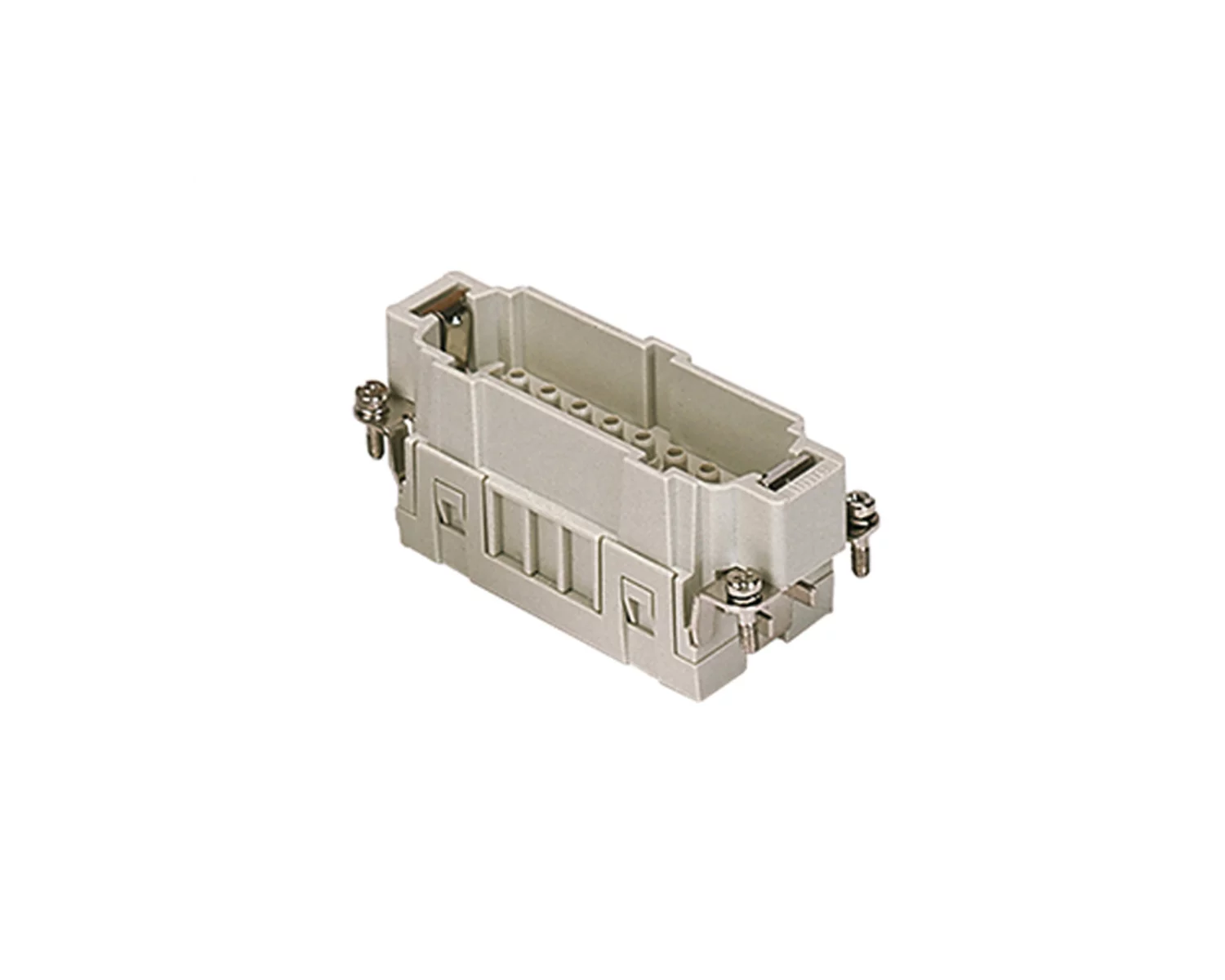

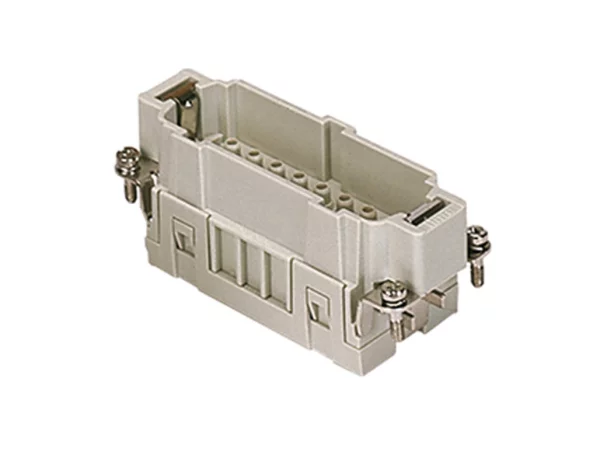

male insert, 16p+PE, crimp, 16A, 500V, for size 77.62 no.17-32

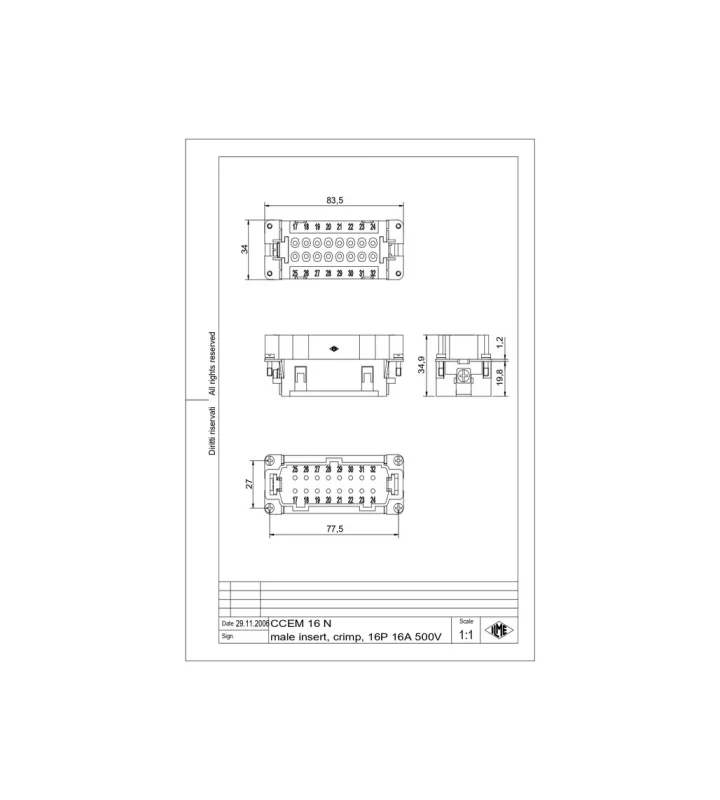

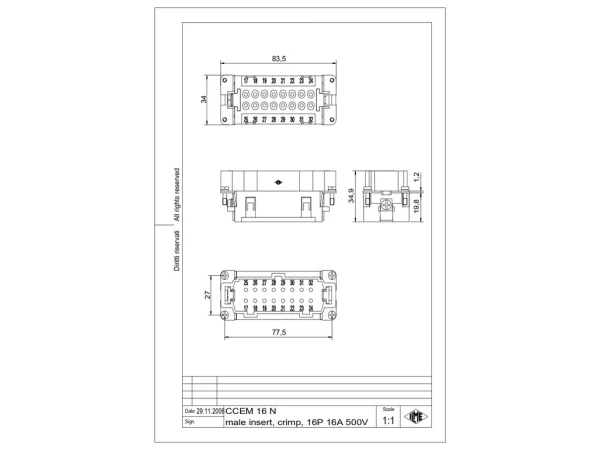

CCEM 16 N

Add the desired housings and contacts to fully configure your connector.

Product Type	Standard insert
Insert series	CCE
Number of contacts	32 + PE (17-32)
Number of poles	32
Connection type	Crimp connection
Gender	Male
Size	77.62
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
AWG-range 1	26
AWG-range 2	12
Min. Cross section	0.14 mm²
Max. Cross section	4 mm²
Diameter male contact	2.5 mm
Pin numbers	17-32
Colour	Grey
Extra information	Contact insert without contacts
Remark	To be ordered with CCEM 16

Material insert	Thermoplastic
Inflammability class of insulation material acc. with UL94	V0
