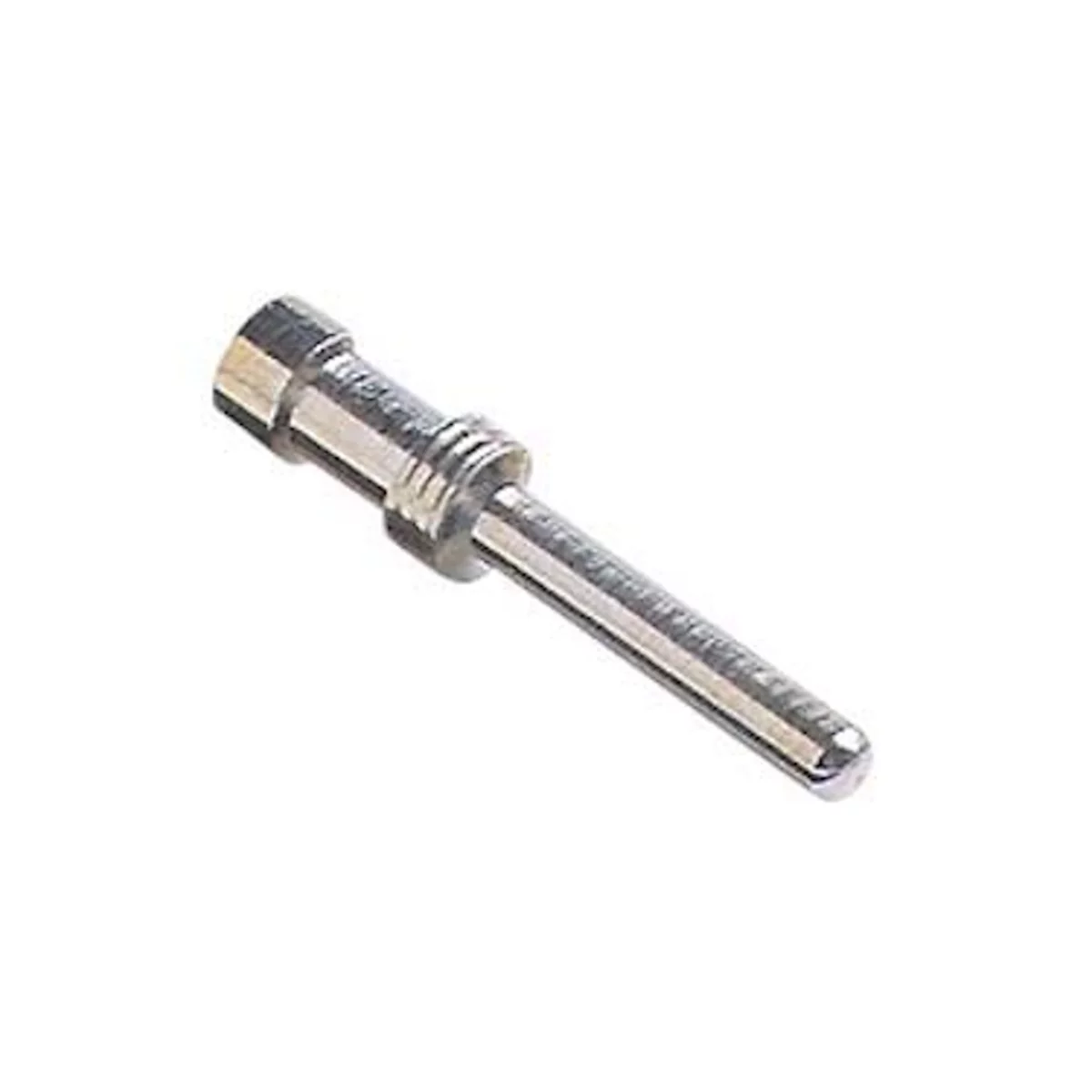

male contact, 0,3mm², constantan, crimp, 16A, series CC, type J
CCMC 0.3
Specifications
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 0.3 mm² |
| Max. Cross section | 0.3 mm² |
| AWG size | 22 |
| Identification | with no grooves |

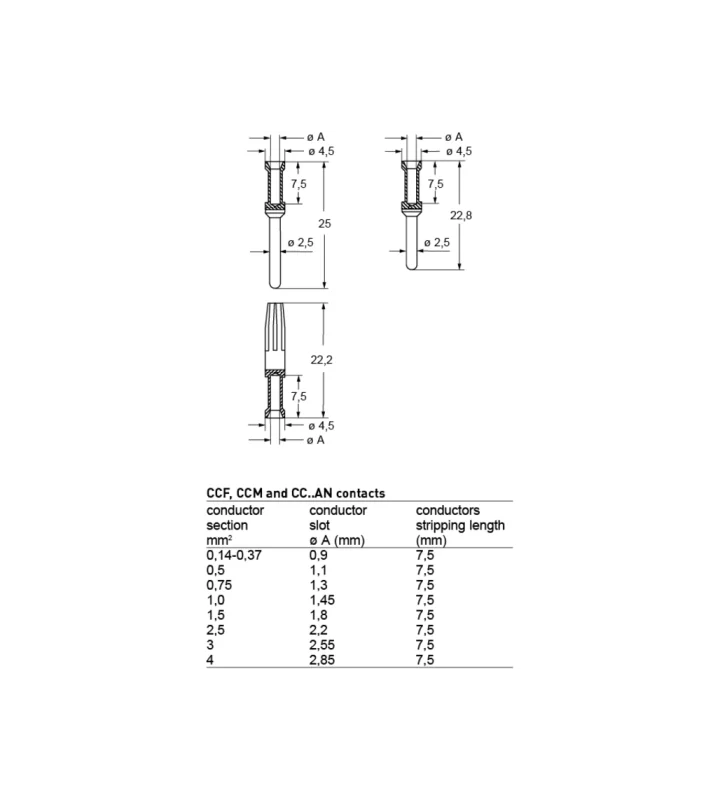

| Diameter male contact | 2.5 mm |
| Wire strip length | 7.5 mm |
Electrical parameters
| Max. rated current | 16 A |
|---|
Material
| Material contact | Constantan alloy |
|---|---|
| Plating of contact | Untreated |
