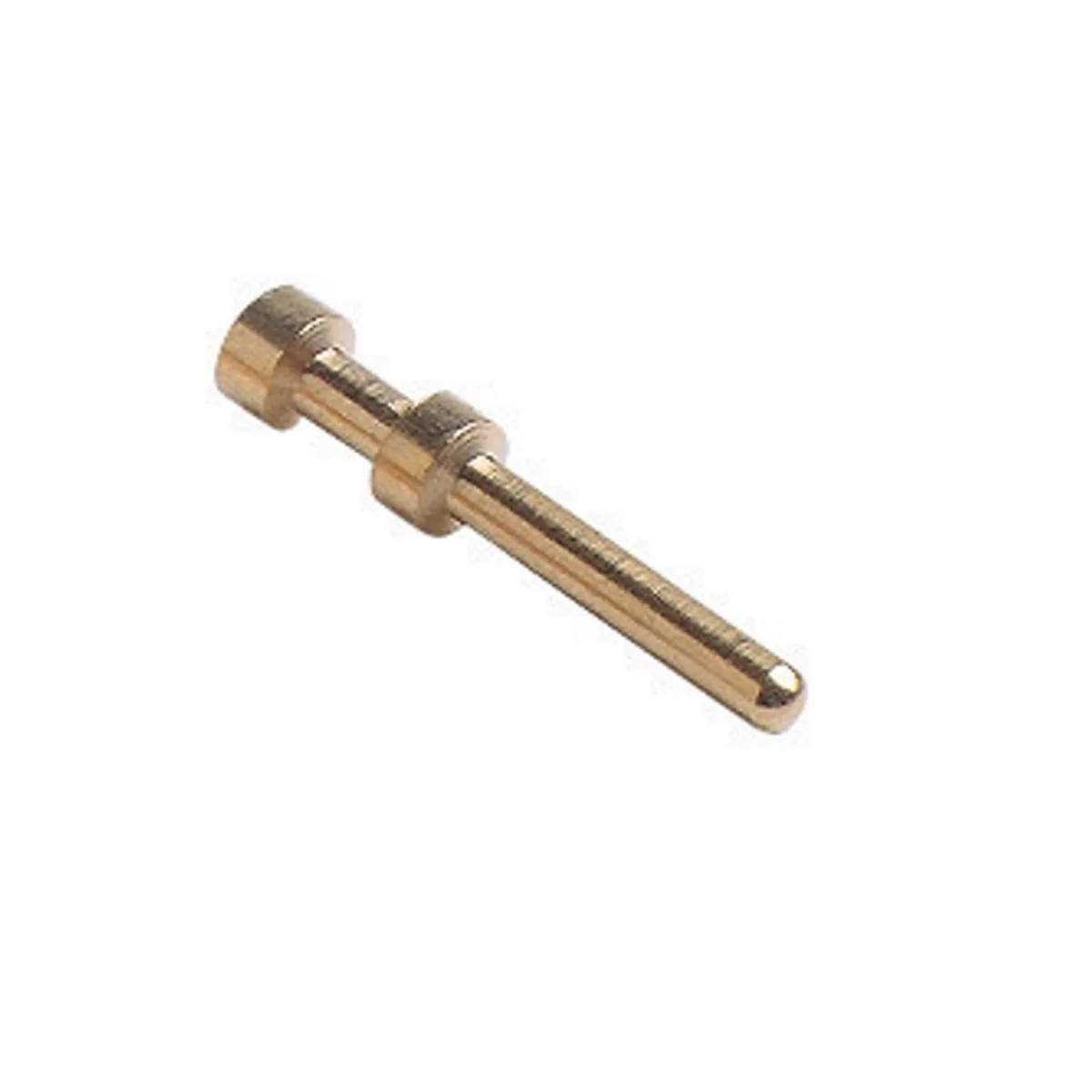

male contact, 0,14-0,37mm², gold, crimp, 16A, series CC
CCMD 0.3
Specifications
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 0.37 mm² |
| AWG size | 26 - 22 |
| Identification | three grooves |
| Diameter male contact | 2.5 mm |
| Wire strip length | 7.5 mm |
Electrical parameters
| Max. rated current | 16 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Gold |
