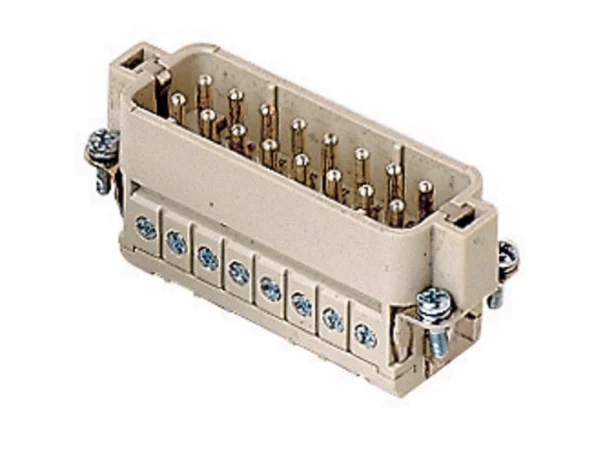

male insert, 16p+PE, silver, screw, 16A, 250V, for size 66.40 no.17-32
CDAM 16 XN
Continue assembling your connector
Add the desired housings to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CDA |
| Number of contacts | 32 + PE (17-32) |
| Number of poles | 32 |
| Connection type | Screw terminal connection |
| Gender | Male |
| Size | 66.40 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 24 |
| AWG-range 2 | 14 |
| Min. Cross section with end sleeve | 0.25 mm² |
| Max. Cross section with end sleeve | 2.5 mm² |
| Min. Cross section | 0.25 mm² |
| Max. Cross section | 2.5 mm² |
| Pin numbers | 17-32 |
| Colour | Grey |
| Extra information | With protective conductor |
| Remark | To be ordered with CDAM 16 X |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 250 V |
| Over voltage category | III |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
