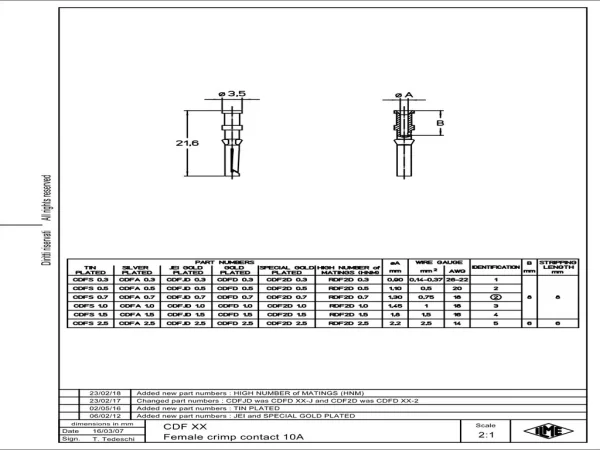

female contact, 2,5mm², silver, crimp, 10A, series CD

CDFA 2.5

Connection type	Turned crimp
Contact type (gender)	Female
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Min. Cross section	2.5 mm²
Max. Cross section	2.5 mm²
AWG size	14
Identification	5
Diameter male contact	1.6 mm
Wire strip length	6 mm

Max. rated current	10 A

Material contact	Copper alloy
Plating of contact	Silver
