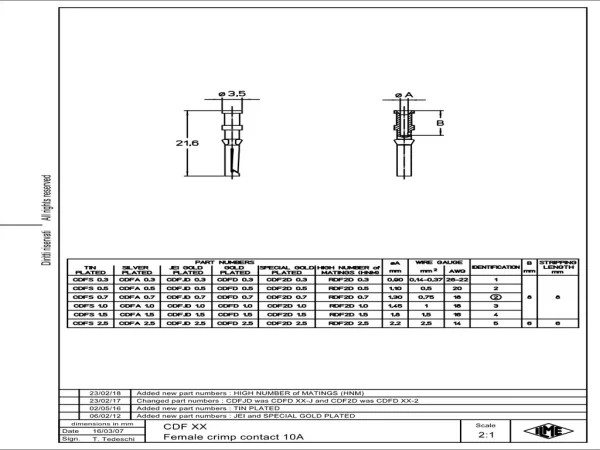

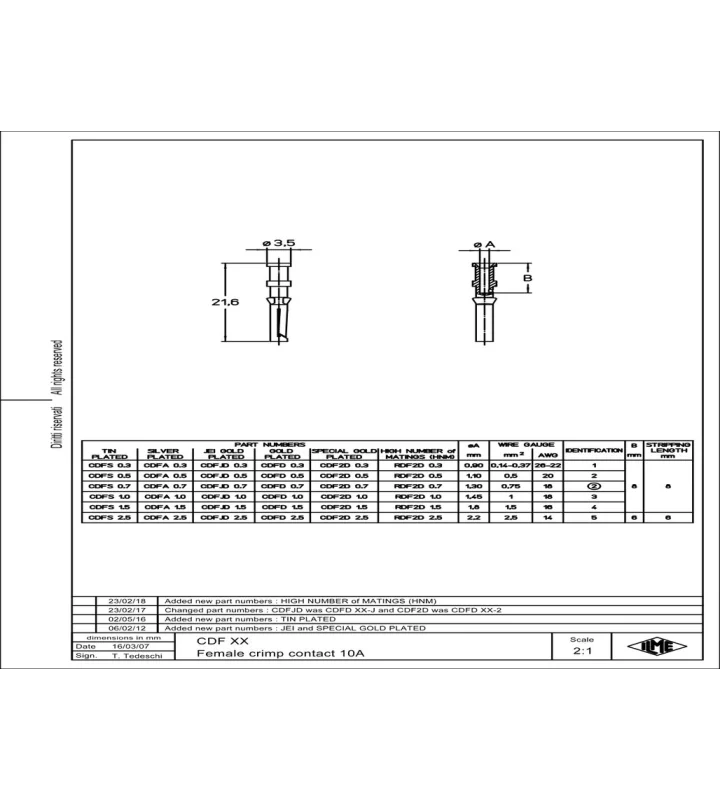

female contact, 0,14-0,37mm², gold, crimp, 10A, series CD

CDFD 0.3

Connection type	Turned crimp
Contact type (gender)	Female
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Min. Cross section	0.14 mm²
Max. Cross section	0.37 mm²
AWG size	26 - 22
Identification	1
Diameter male contact	1.6 mm
Wire strip length	8 mm

Max. rated current	10 A

Material contact	Copper alloy
Plating of contact	Gold
