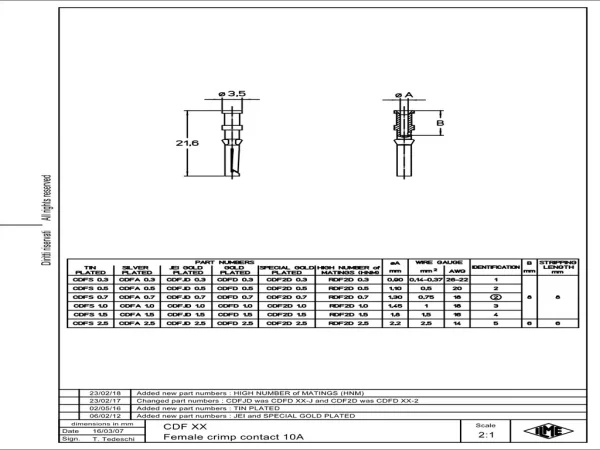

female contact, 2,5mm², gold JEI, crimp, 10A, series CD
CDFJD 2.5
Specifications
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 2.5 mm² |
| Max. Cross section | 2.5 mm² |
| AWG size | 14 |
| Identification | 5 |
| Diameter male contact | 1.6 mm |
| Wire strip length | 6 mm |
Electrical parameters
| Max. rated current | 10 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Gold |
