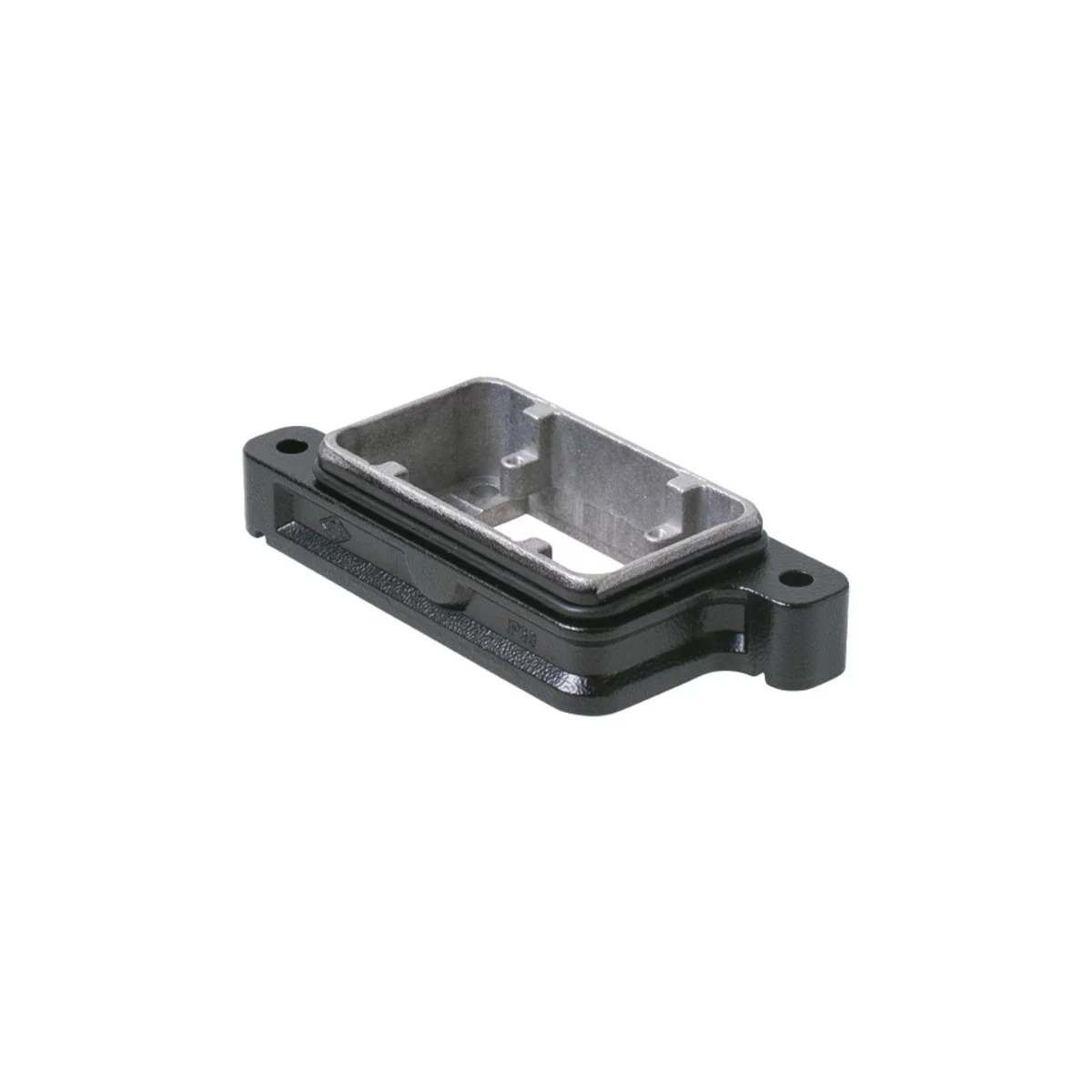

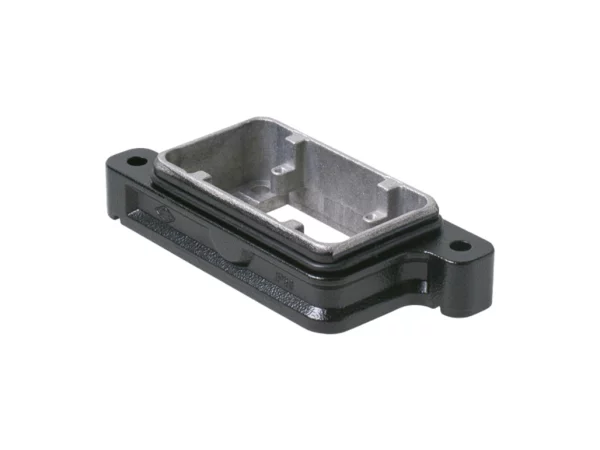

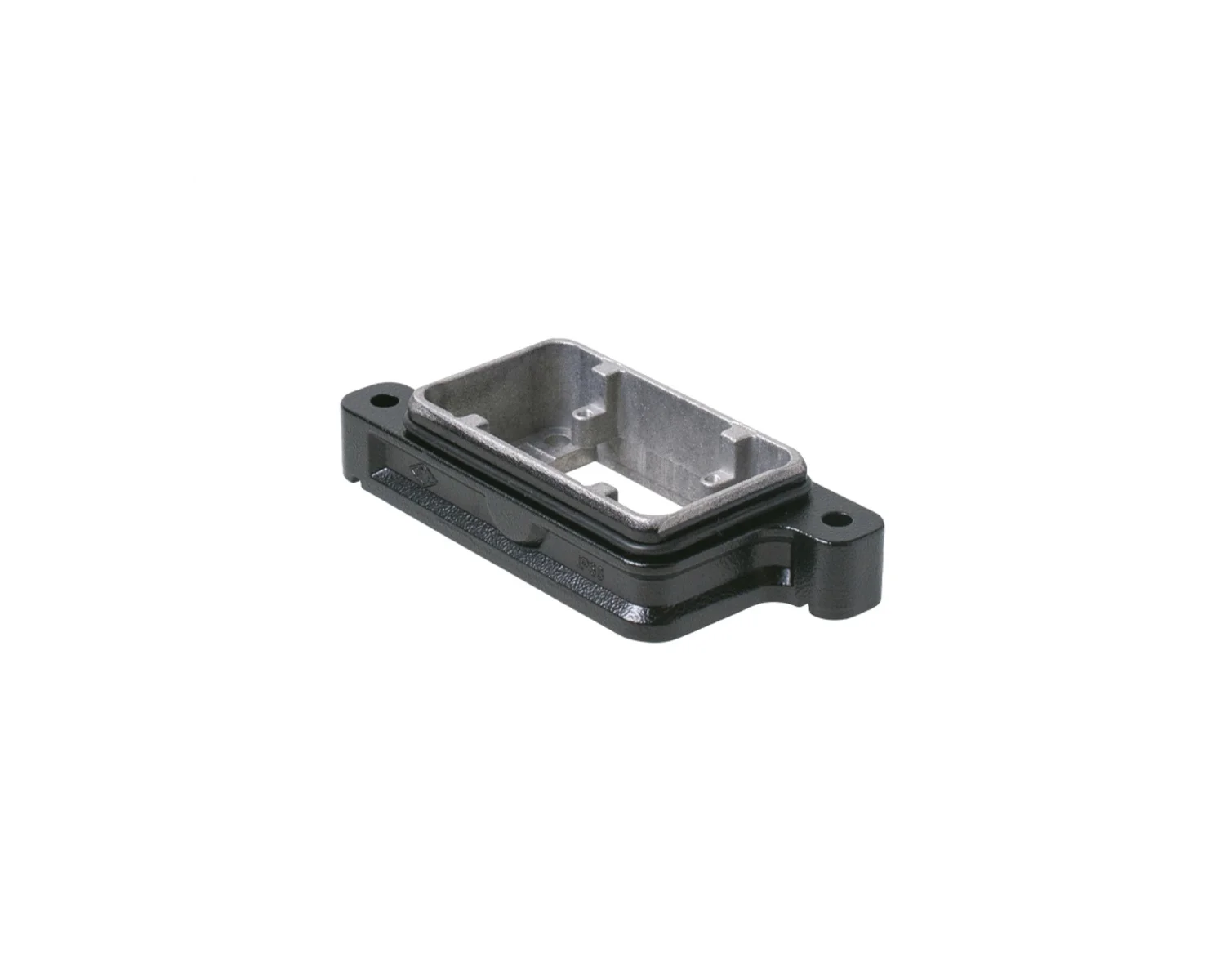

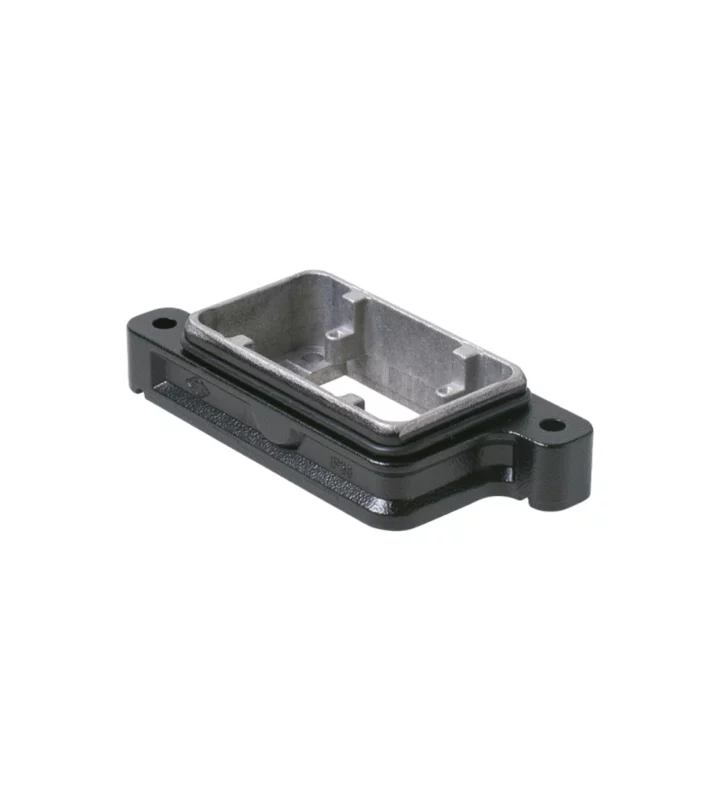

bulkhead mounting housing, size 57.27, IP68 alu, screw locking

CGI 10

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	57.27
Enclosure series	IP68
Closing type	With 2 screws
Locking mechanism	With 2 screws
Protection degree	IP66 / IP68 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	29 mm
Width	58 mm
Length	146 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
Extra information	Corrosion resistant,UV resistant,With interlocking device
