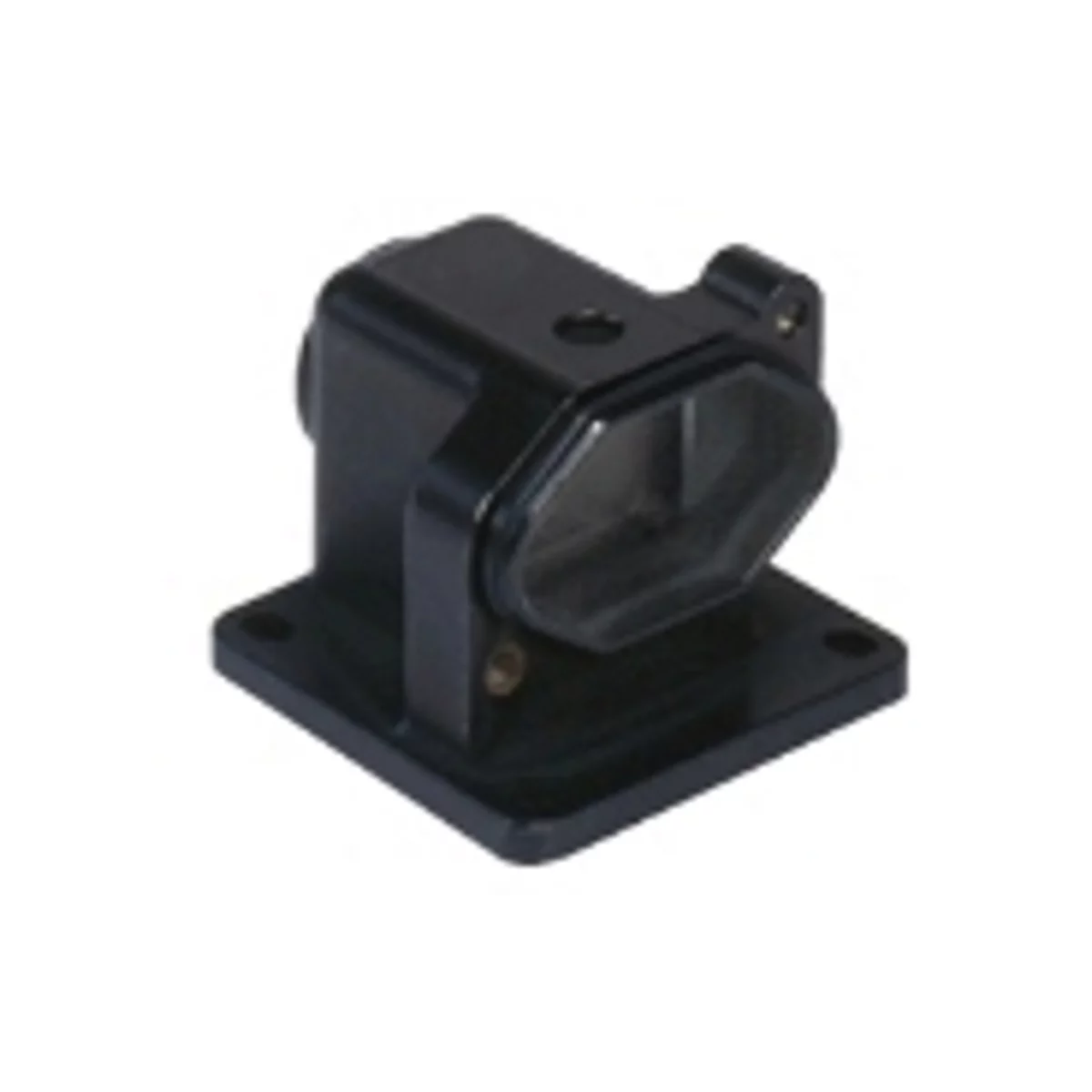

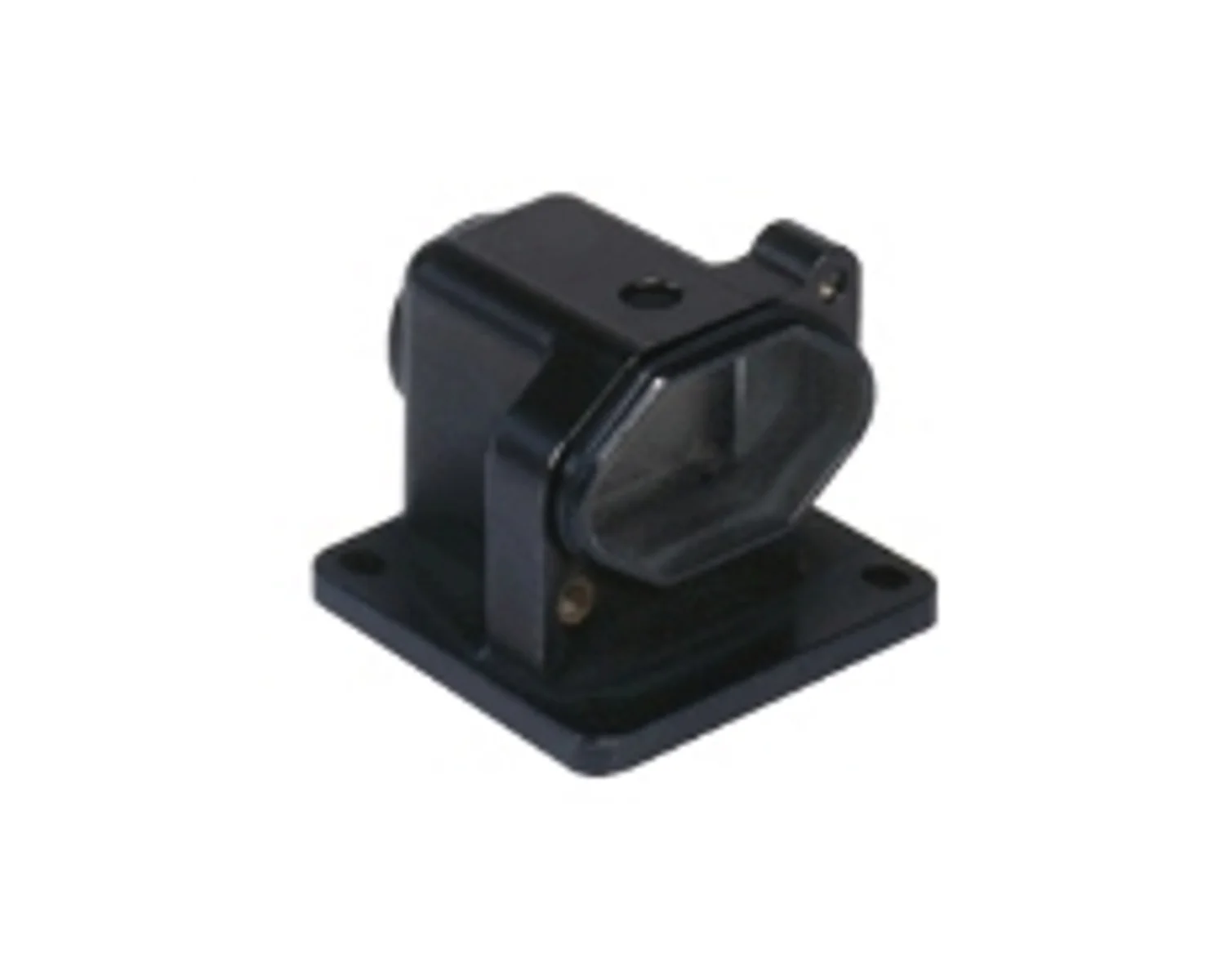

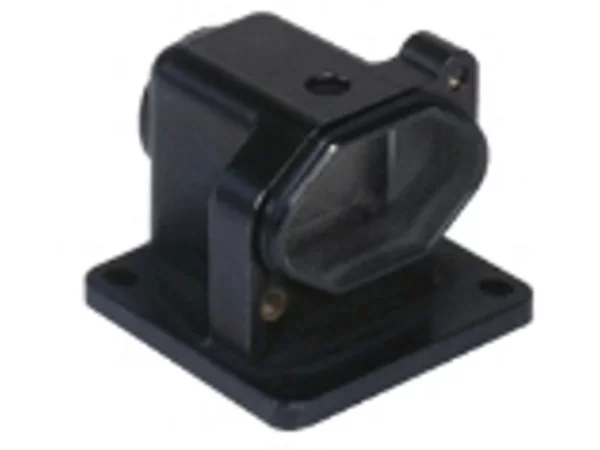

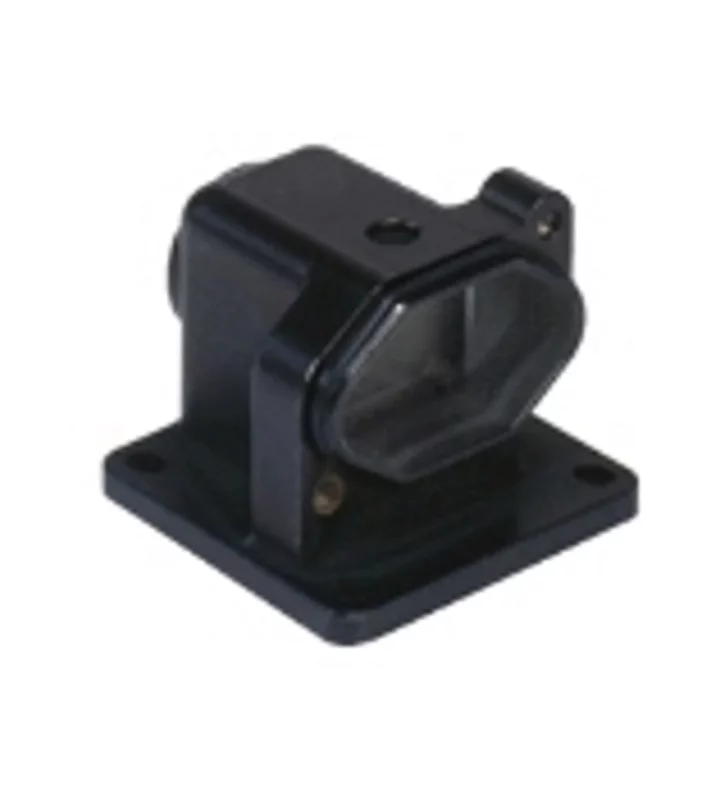

bulkhead mounting housing, angled, size 21.21, IP68 alu, screw locking
CGK IA
Continue assembling your connector
Add the desired accessories and standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Angled bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | IP68 |
| Closing type | With 2 screws |
| Locking mechanism | With 2 screws |
| Protection degree | IP66 / IP68 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |

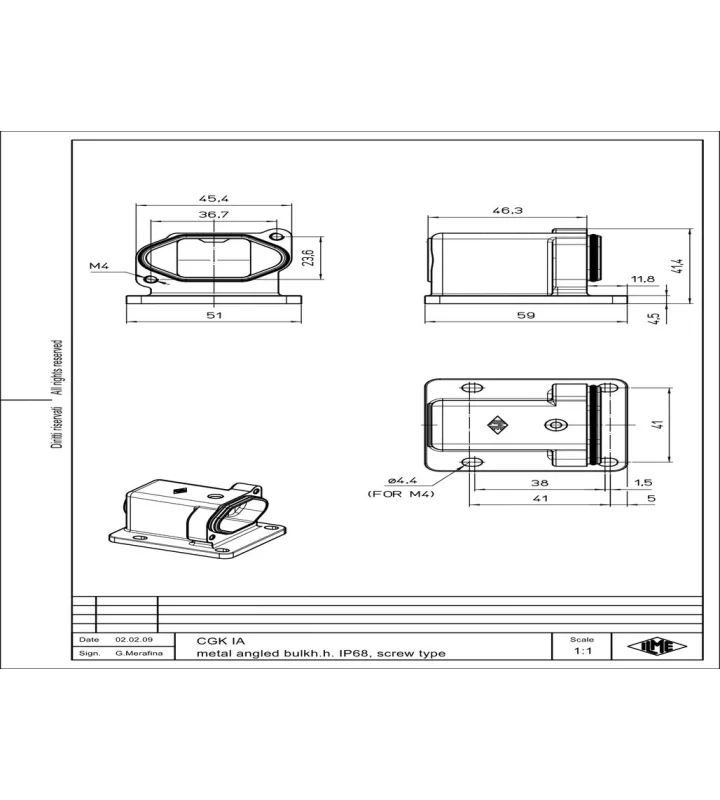

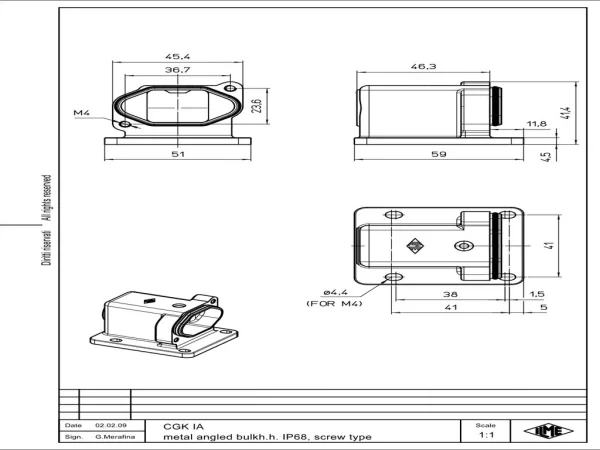

| Height | 41.4 mm |
| Width | 51 mm |
| Length | 59 mm |
| Remark | To ensure IP68 protection rating with CD 08 insert, purcahse the Kit CKR 65 D. In this case do not use the screw supplied with the enclosure |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
