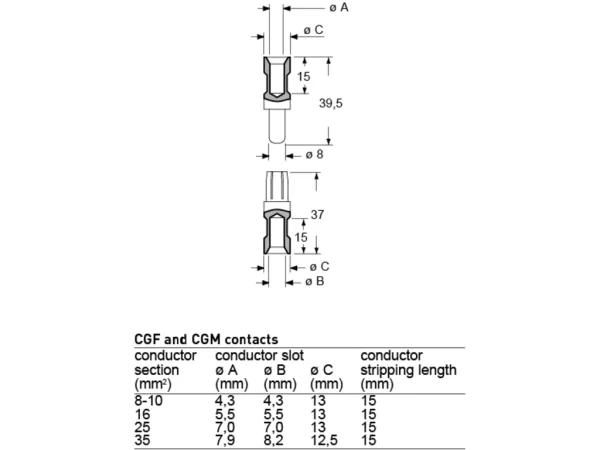

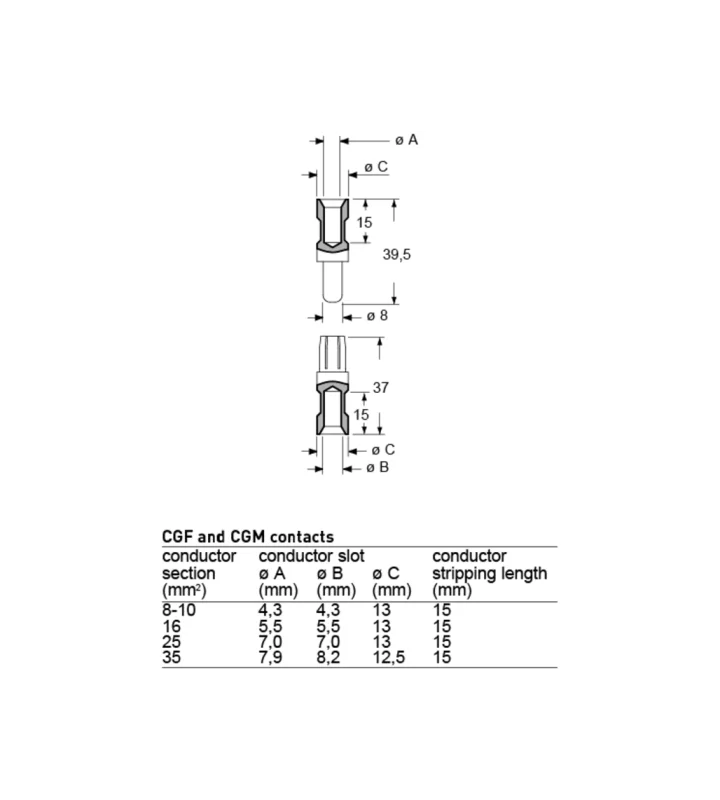

male contact, 35mm², silver, crimp, 100A, series CG
CGMA 35
Specifications
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 35 mm² |
| Max. Cross section | 35 mm² |
| AWG size | 2 |
| Diameter male contact | 8 mm |
| Wire strip length | 15 mm |
Electrical parameters
| Max. rated current | 100 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Silver |
