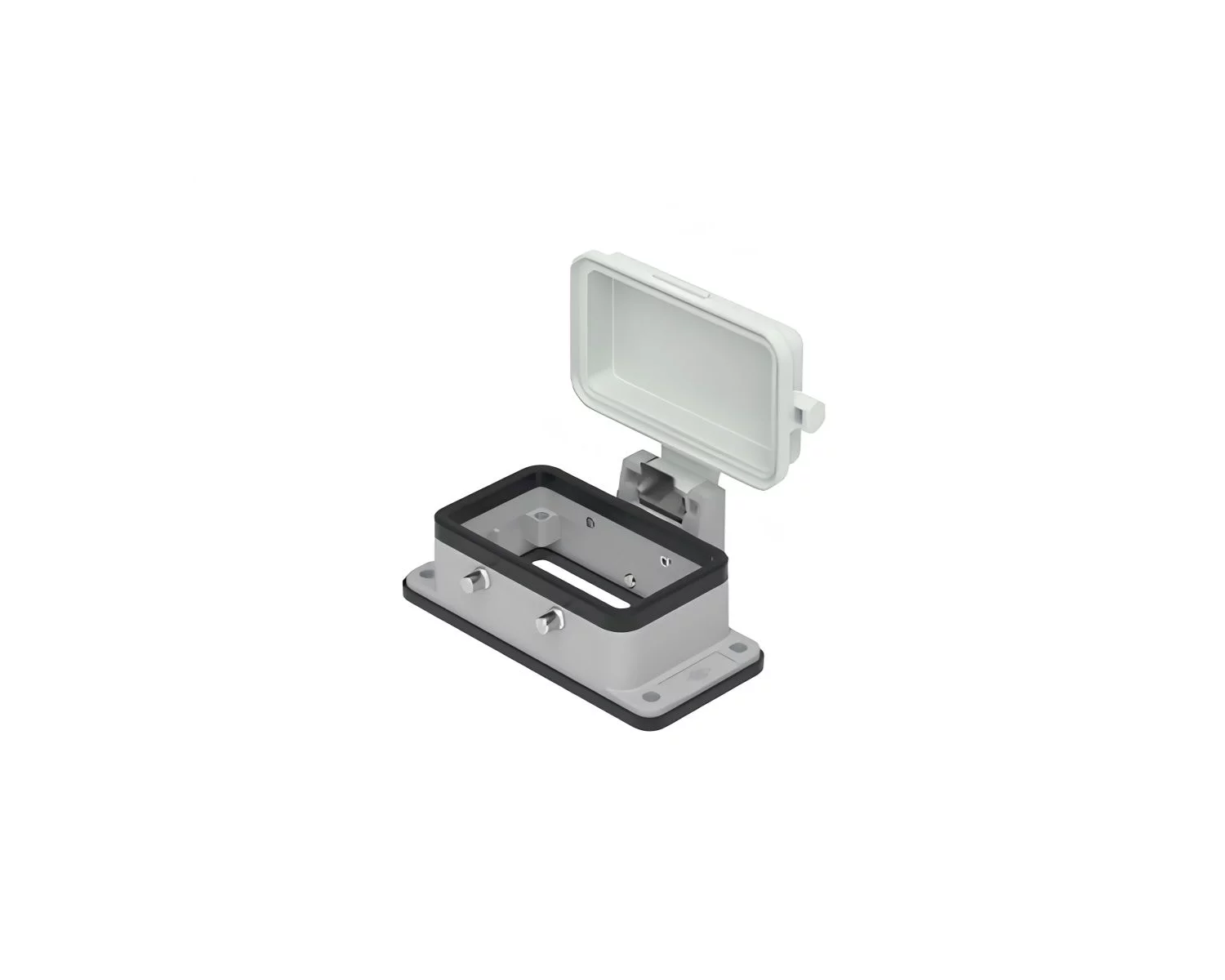

bulkhead mounting housing, size 57.27, C-TYPE alu, 4 pegs, cover plastic
CHI 10 CP
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 57.27 |
| Enclosure series | C-TYPE |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 29 mm |
| Width | 45.5 mm |
| Length | 95.5 mm |
| Remark | May be combined with enclosures: CHO 10 X,CAO 10 X,CHV 10 X,CAV 10 X,MHO 10 X,MAO 10 X,MHV 10 X,MAV 10 X |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With hinged lid,With interlocking device |
