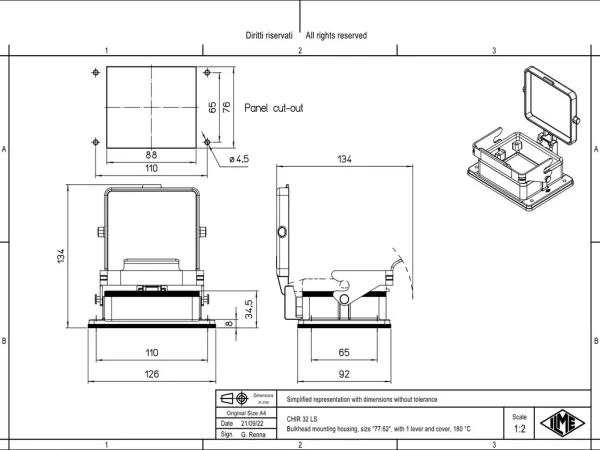

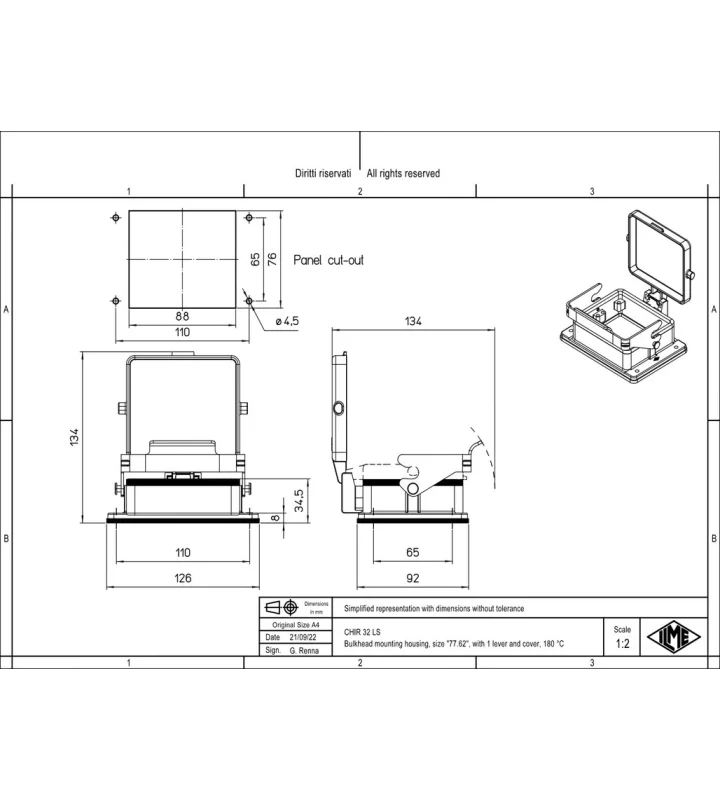

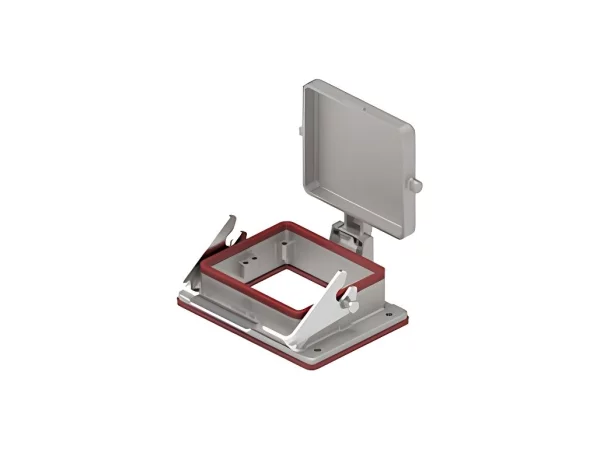

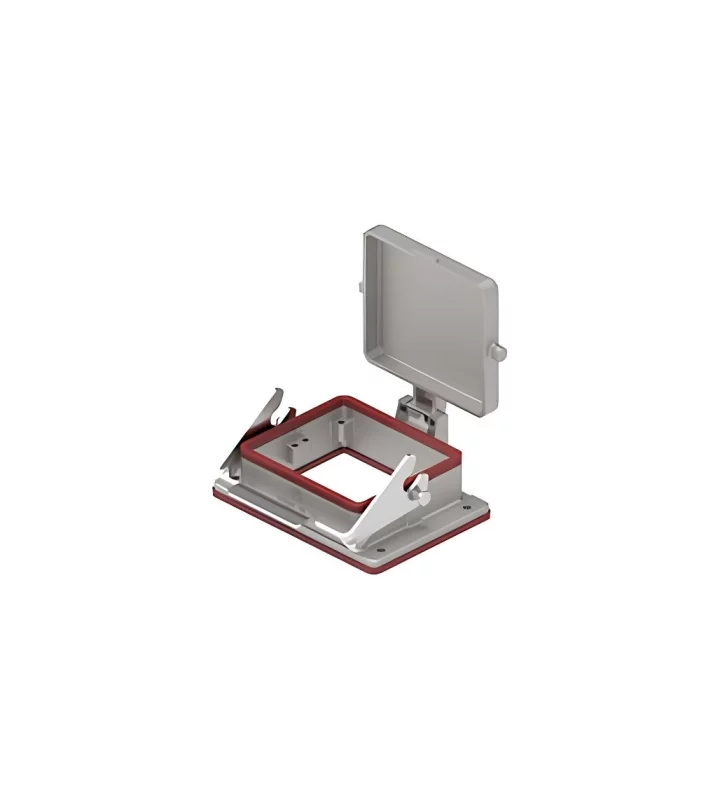

bulkhead mounting housing, size 77.62, 180 °C alu, 1 lever

CHIR 32 LS

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	77.62
Enclosure series	180°C
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	34.5 mm
Width	92 mm
Length	126 mm

Material housing	Die cast aluminium alloy
