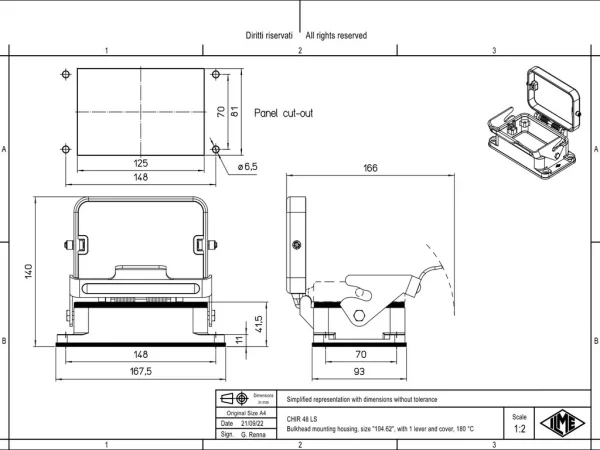

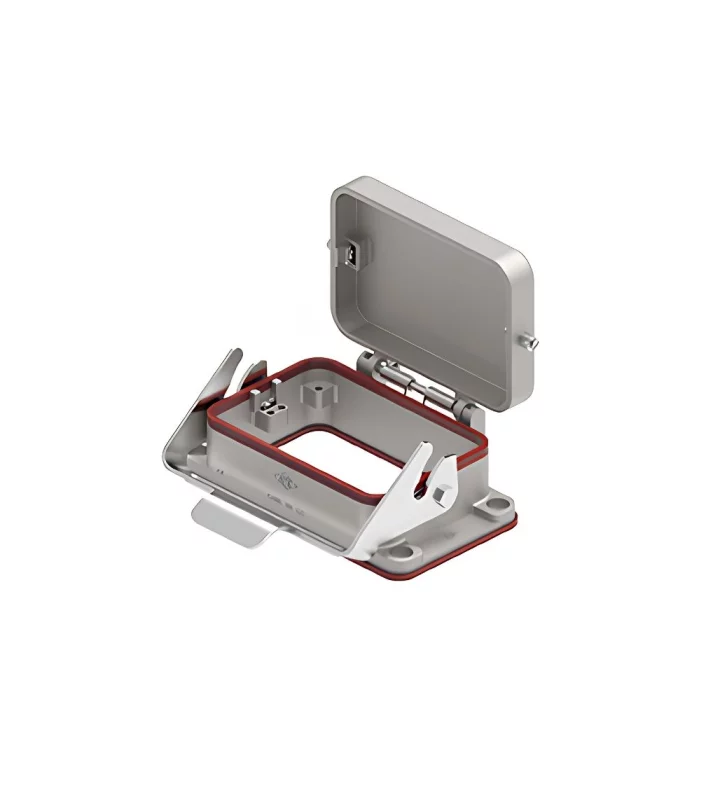

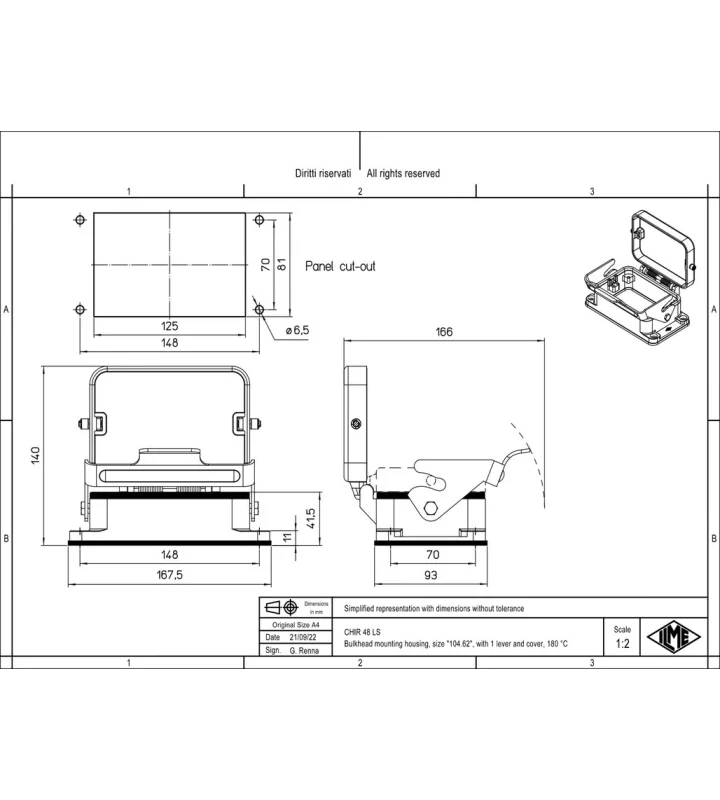

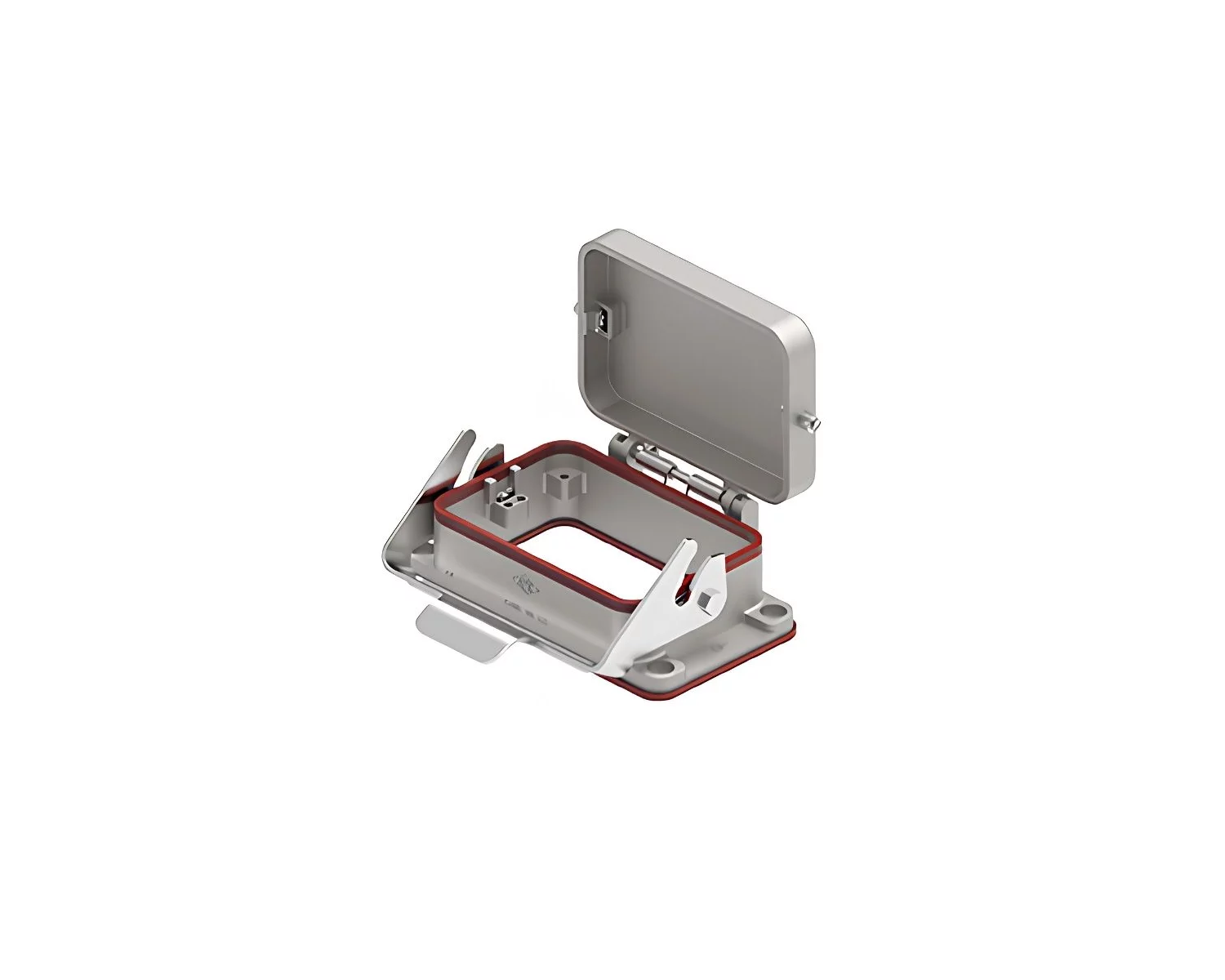

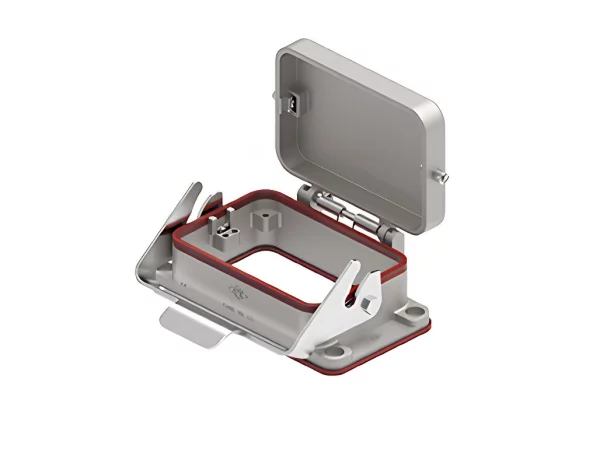

bulkhead mounting housing, size 104.62, 180°C alu, 1 lever, cover metal
CHIR 48 LS
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 104.62 |
| Enclosure series | 180°C |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 180 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 180 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 42 mm |
| Width | 93 mm |
| Length | 167.5 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With special thermosetting powder coating with high resistance to high temperatures |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With hinged lid,With interlocking device |
