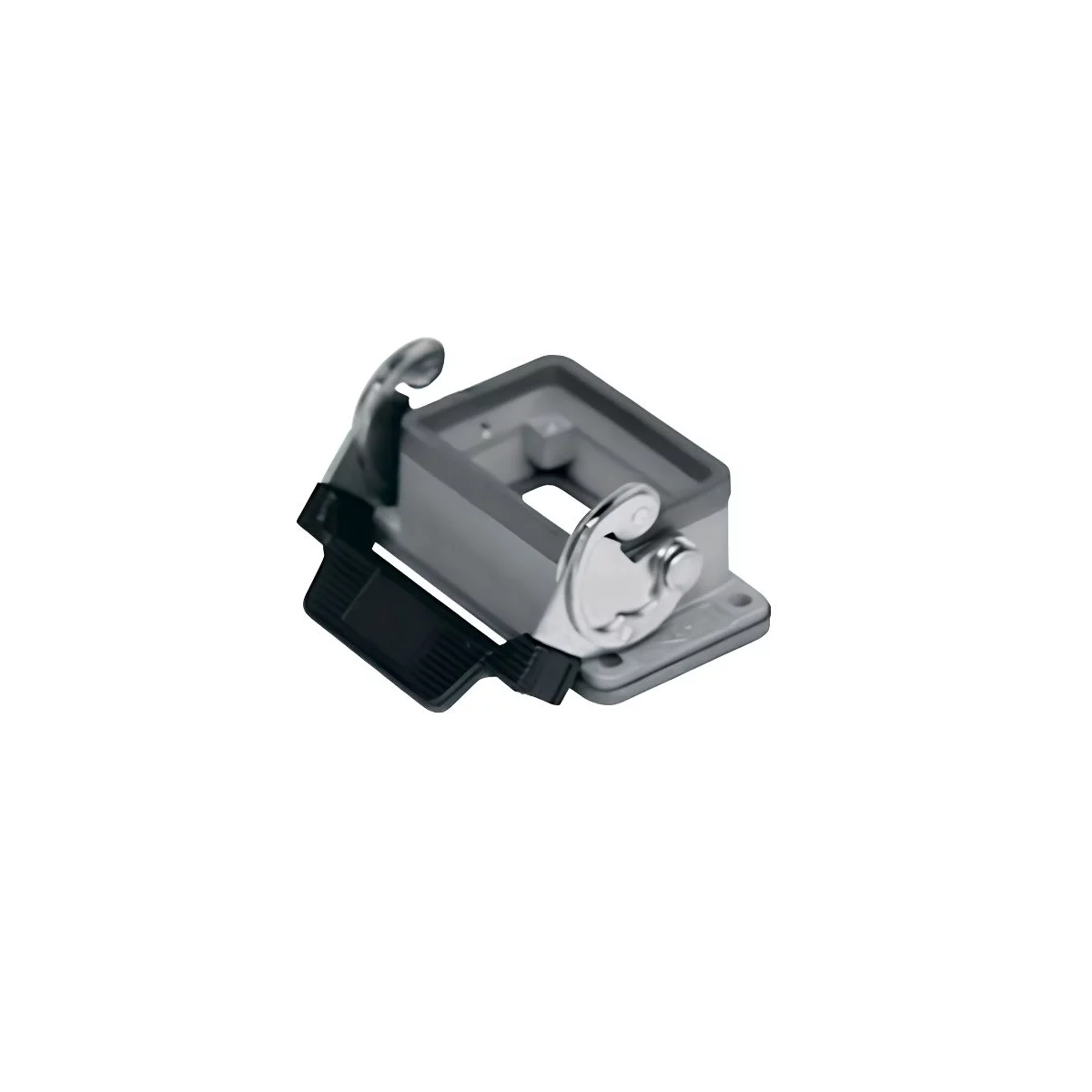

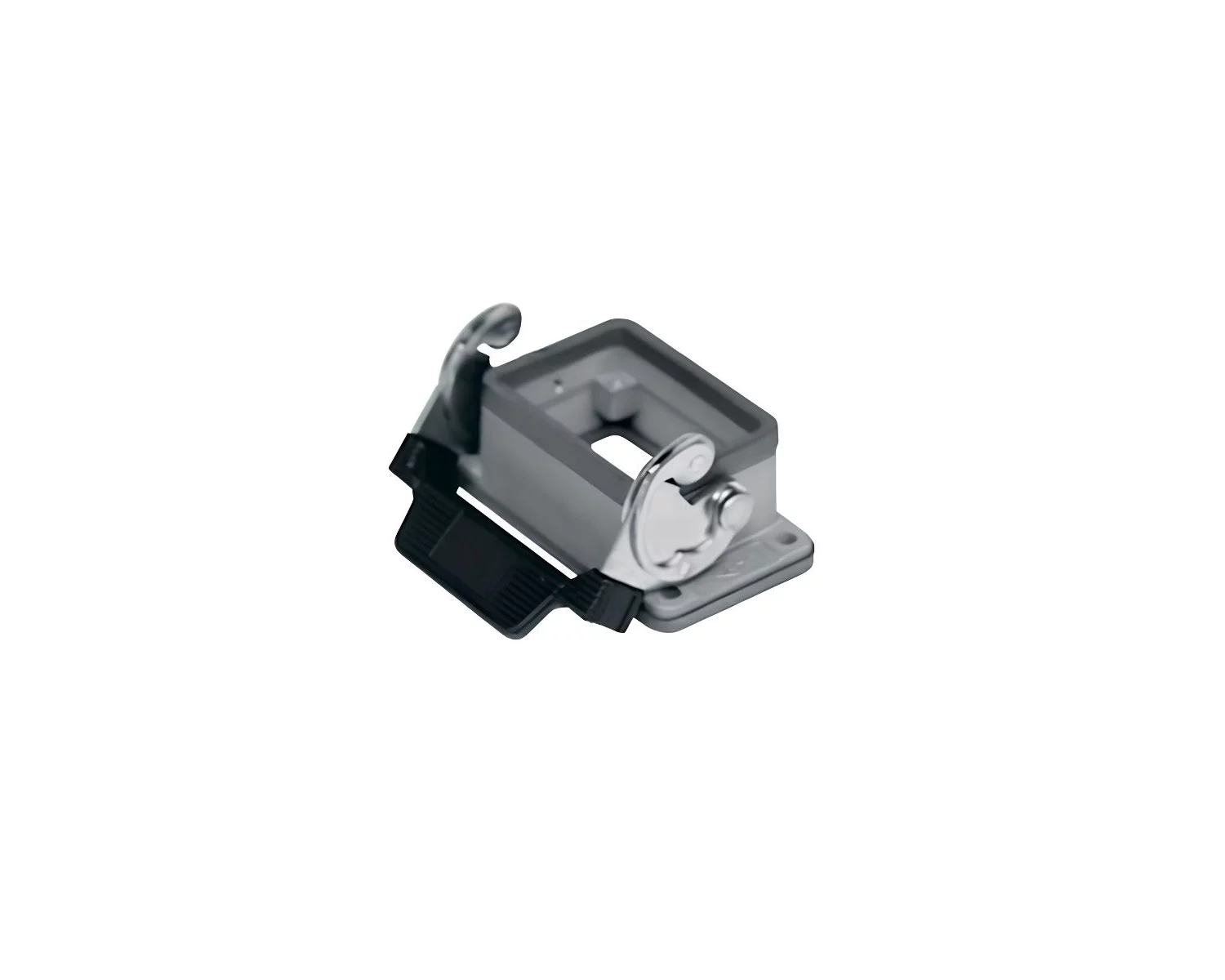

bulkhead mounting housing, size 44.27, EMC alu, 1 lever

CHIS 06 L

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	44.27
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	29 mm
Width	45.5 mm
Length	82.5 mm

Material housing	Aluminium
Coating housing	With powder coating
Extra information	Corrosion resistant,EMC Version,UV resistant,With interlocking device
