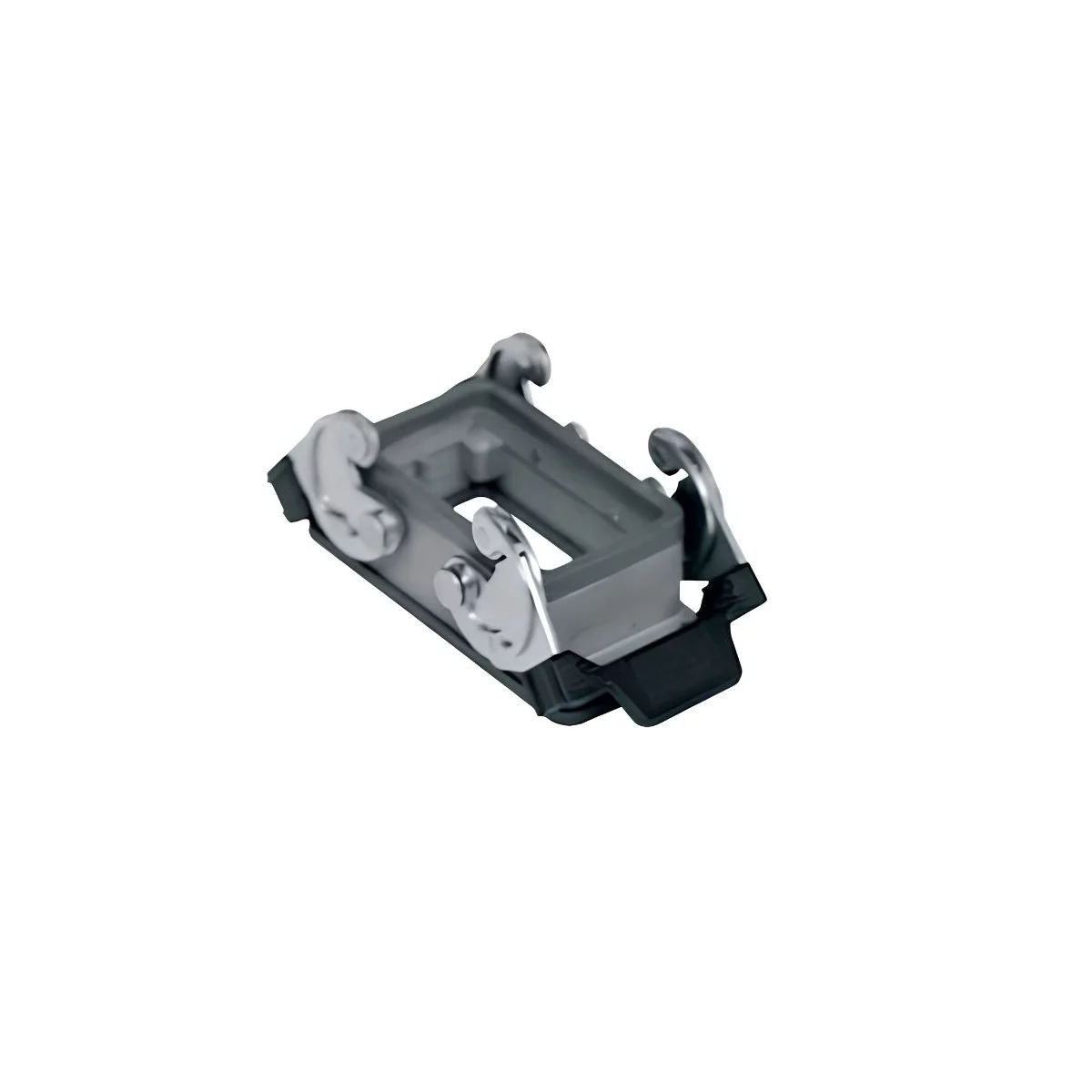

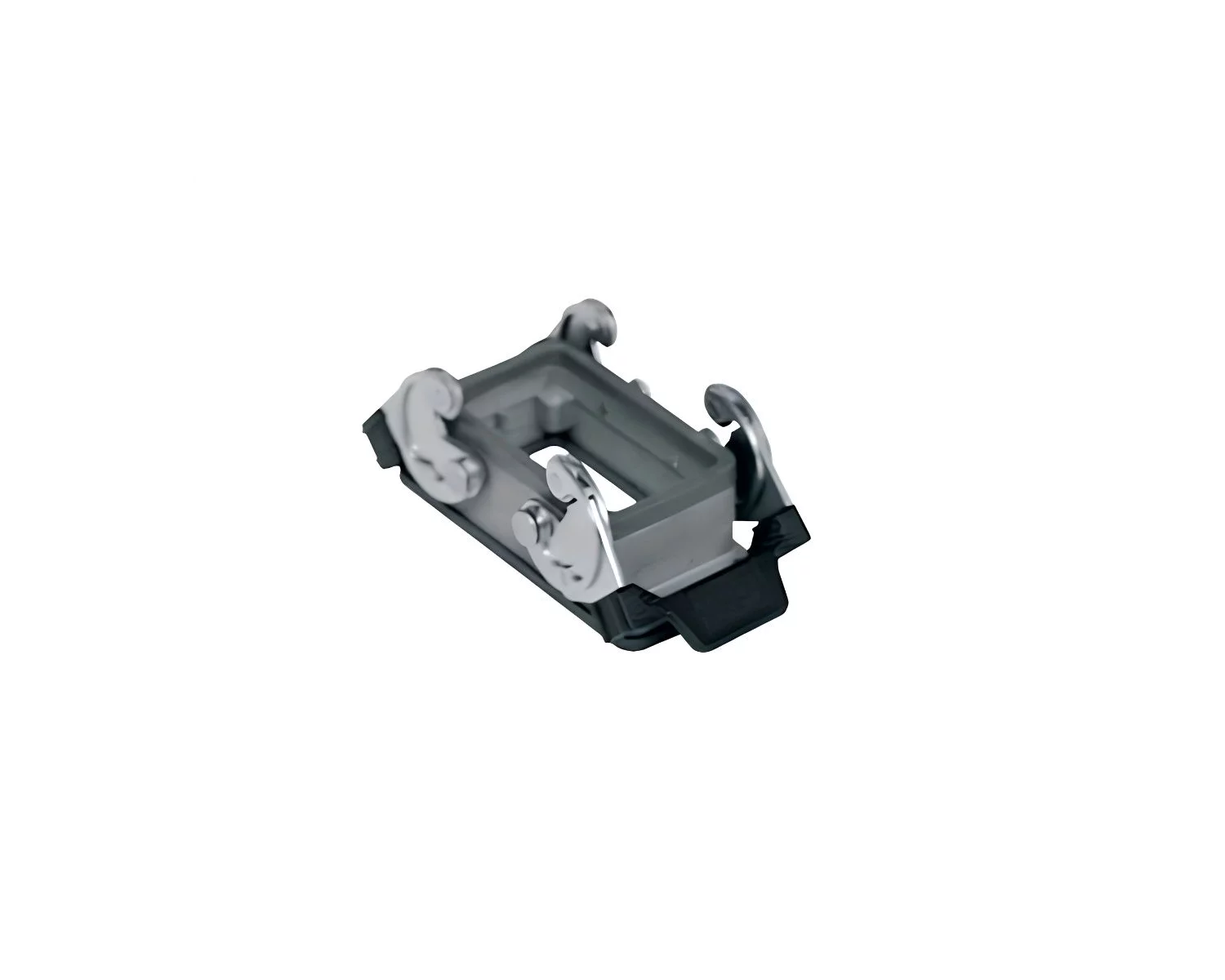

bulkhead mounting housing, size 57.27, EMC alu, 2 levers

CHIS 10

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	57.27
Enclosure series	EMC
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry

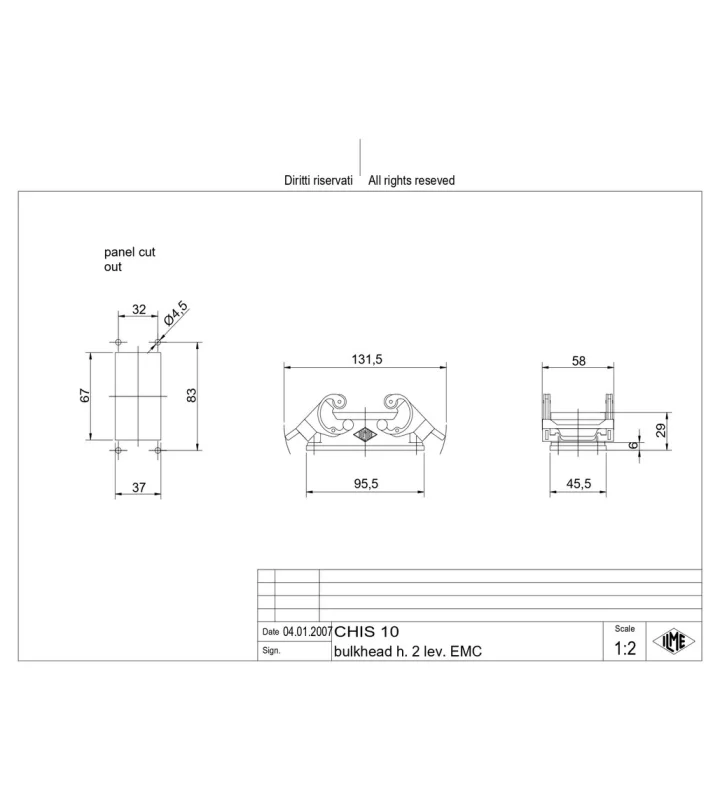

Height	29 mm
Width	59 mm
Length	95.5 mm

Material housing	Aluminium
Coating housing	With powder coating
Extra information	Corrosion resistant,EMC Version,UV resistant,With interlocking device
