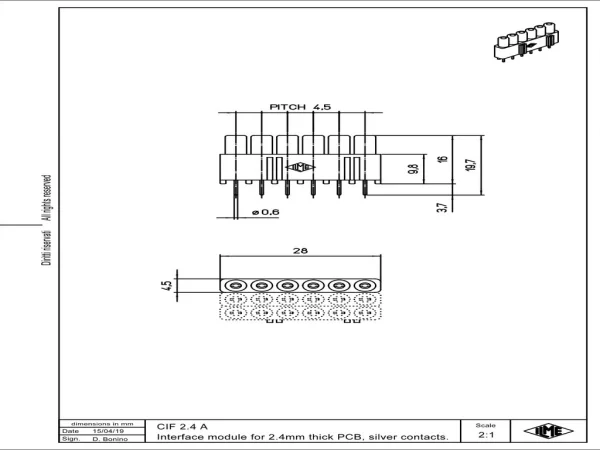

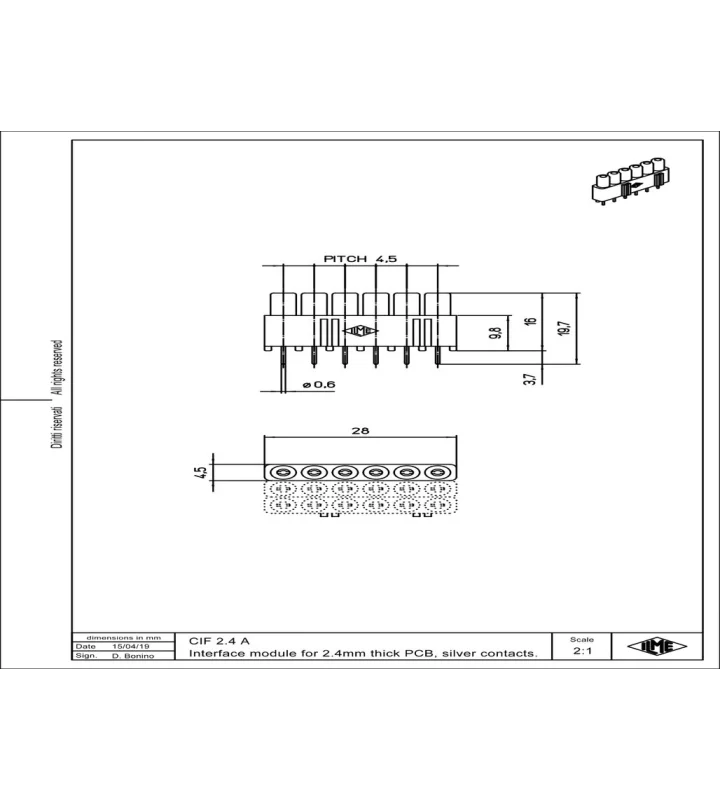

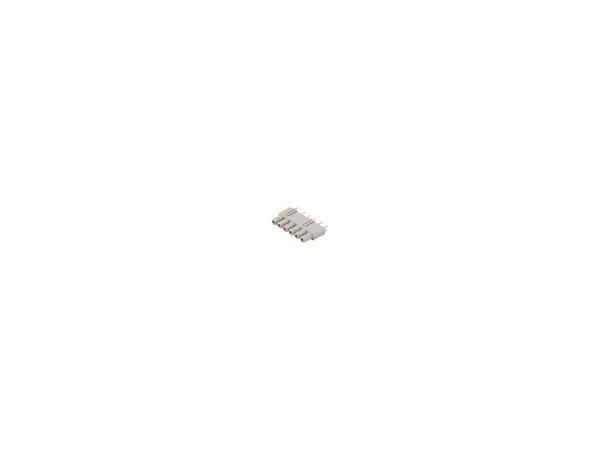

interface module, silver, 6p, plug, 6A, 250V, for PCB-size up to 2,4mm

CIF 2.4 A

Accessory type	PCB adapters
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Colour	Grey
Diameter PCB pin	0.6 mm
Length PCB pin	4.6 mm
Contact pitch	4.5 mm
Number of poles	6
Over voltage category	III
Suitable for PCB thickness	2.4

Max. rated current	6 A

Material	Thermoplastic
Material contact	Copper alloy
Plating of contact	Silver
Inflammability class of insulation material acc. with UL94	V0
