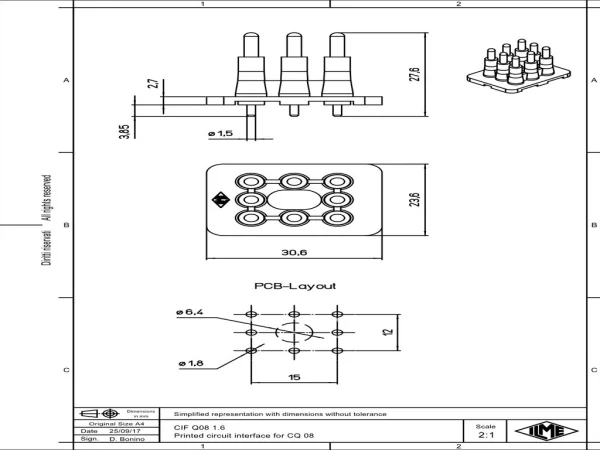

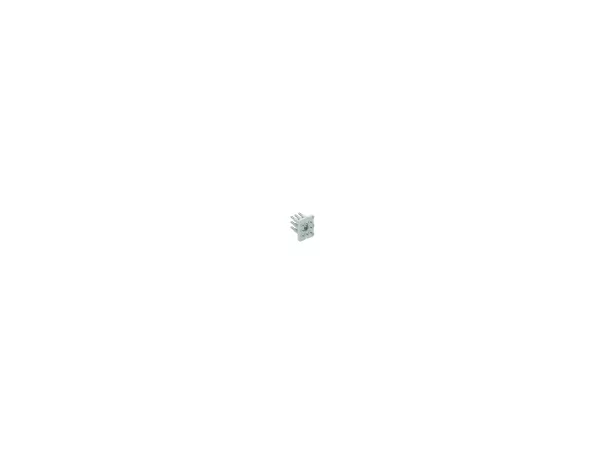

PCB-adapter, 8p+GND, 16A, 230/400V, for PCB-size up to 1,6mm

CIF Q08 1.6

Accessory type	PCB adapters
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Colour	Grey
Diameter PCB pin	1.5 mm
Nominal rated voltage	230/400 V
Number of poles	8
Pollution degree	2
Suitable for PCB thickness	1.6
Remark	For CQ 08 inserts

Max. rated current	16 A
Rated surge voltage	4 kV

Material	Thermoplastic
Material contact	Copper alloy
Plating of contact	Silver
Inflammability class of insulation material acc. with UL94	V0
