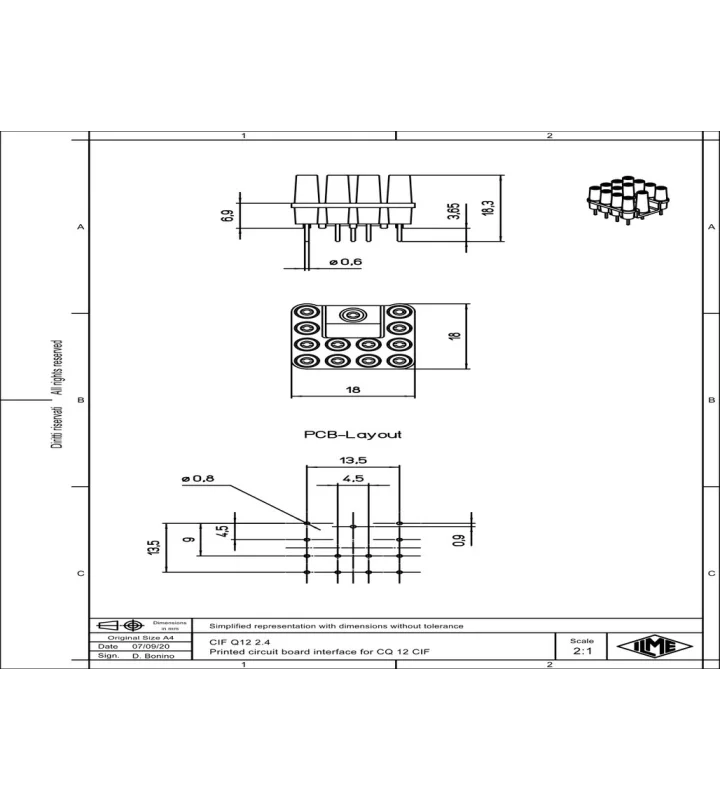

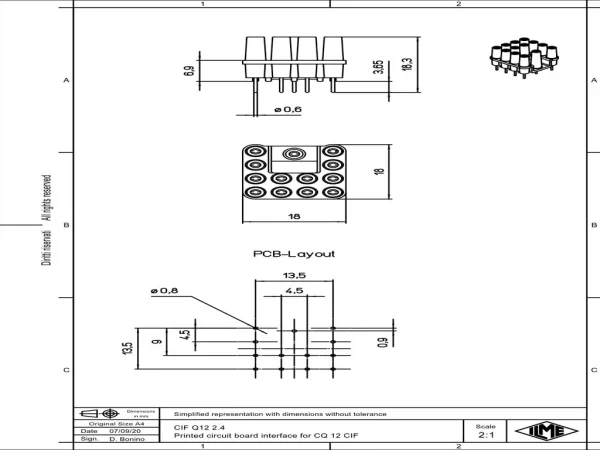

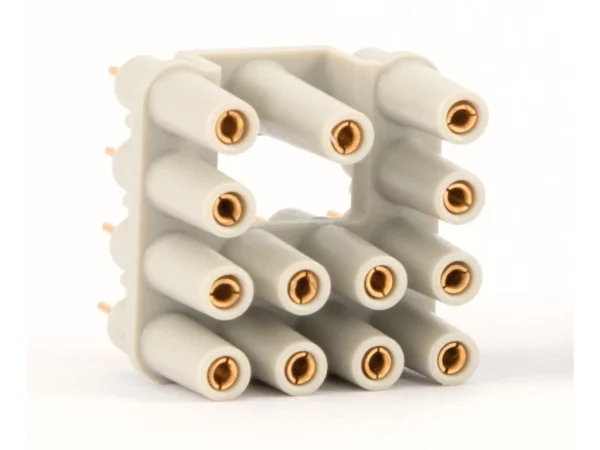

PCB-adapter, 12p+GND, 7,5A, 250V, for PCB-size up to 2,4mm

CIF Q12 2.4

Accessory type	PCB adapters
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Colour	Grey
Diameter PCB pin	0.6 mm
Nominal rated voltage	250 V
Number of poles	12 + PE
Pollution degree	3
Suitable for PCB thickness	2.4
Remark	For CQ 12 CIF inserts

Max. rated current	7.5 A
Rated surge voltage	4 kV

Material	Thermoplastic
Material contact	Copper alloy
Plating of contact	Gold
Inflammability class of insulation material acc. with UL94	V0
