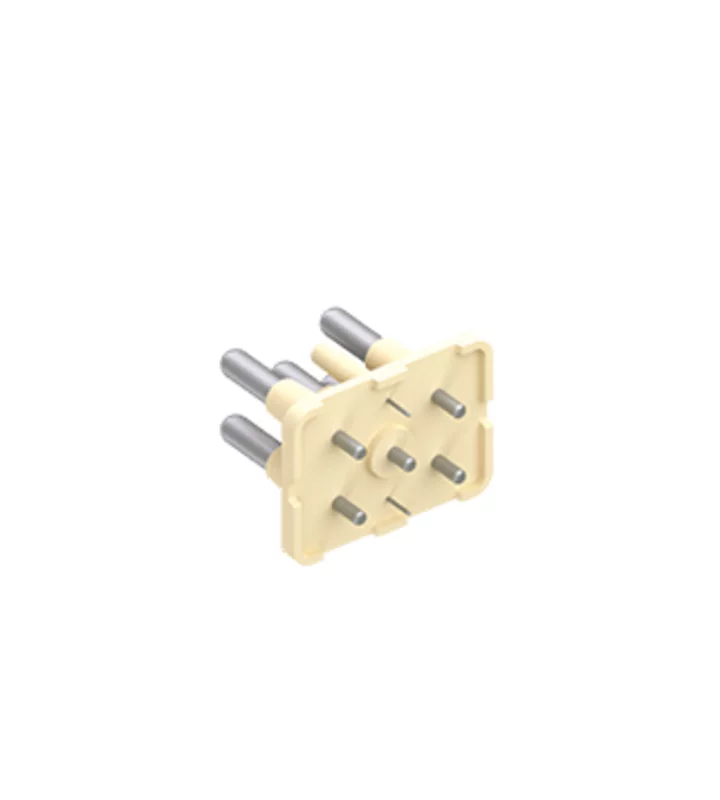

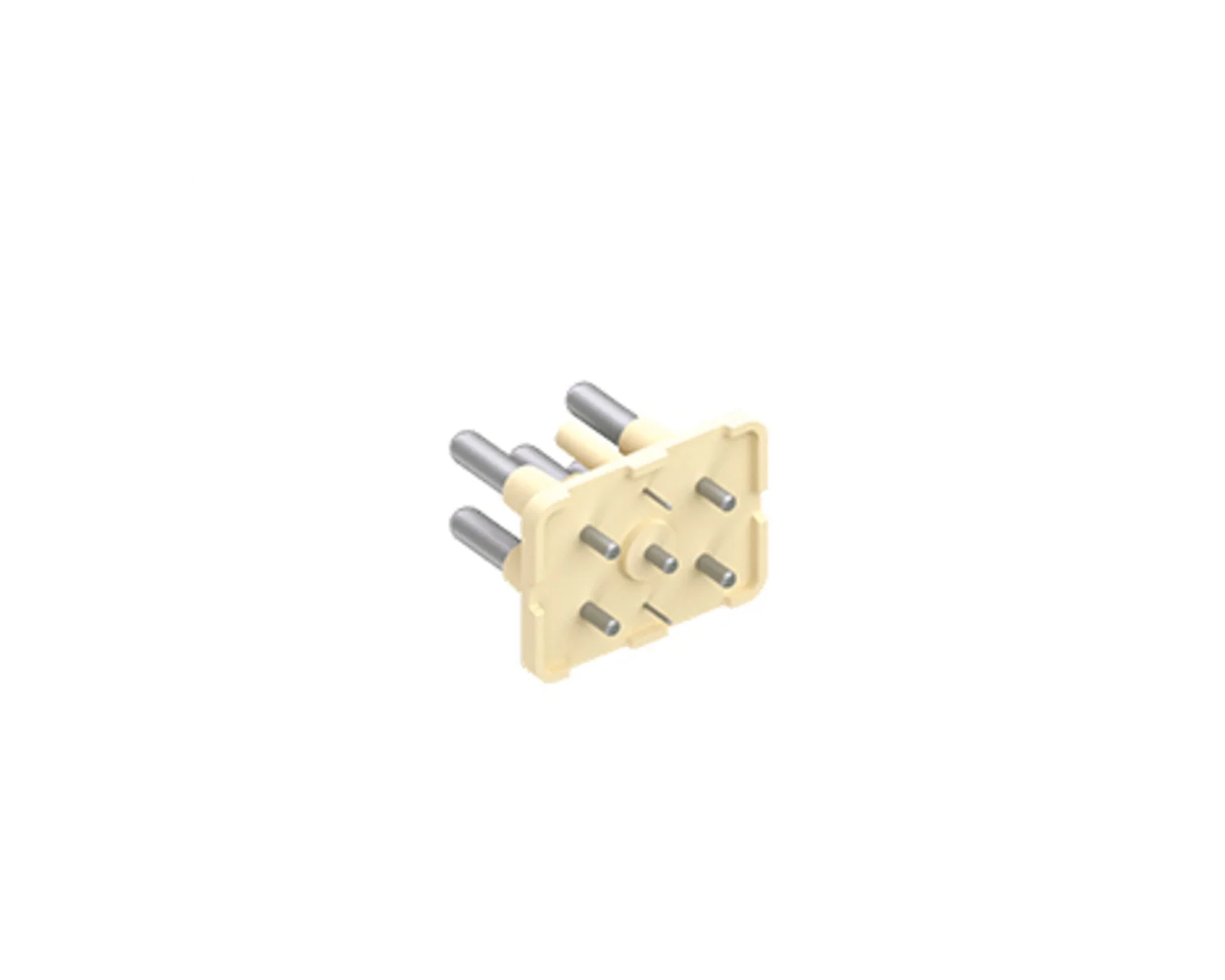

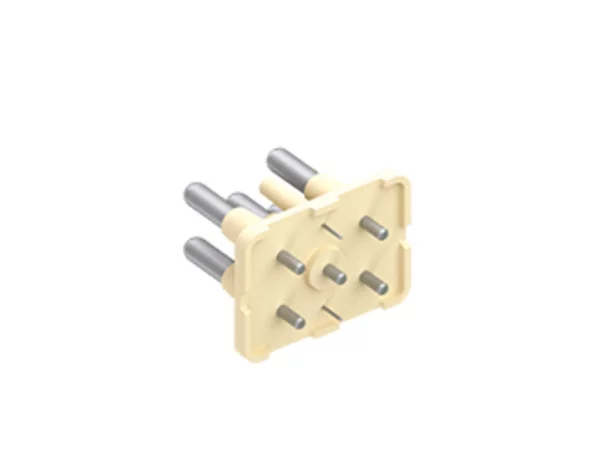

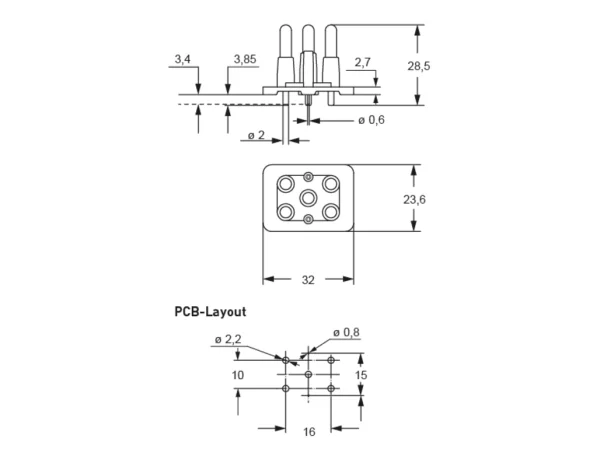

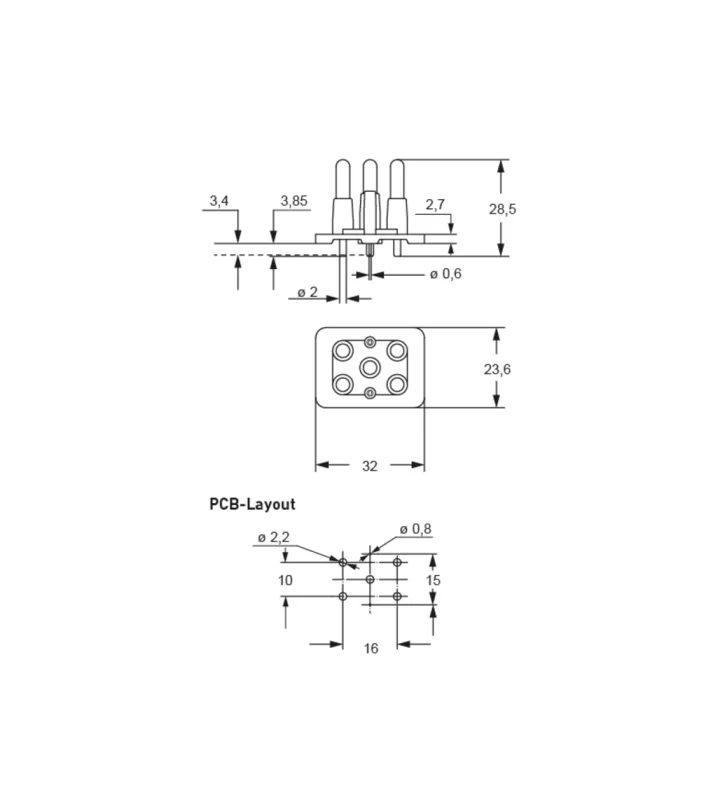

PCB-adapter, 4+2p+GND, 7,5+40A, 400/690+250V, for PCB-size up to 2,4mm

CIF Q4/2 2.4

Accessory type	PCB adapters
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Colour	Grey
Diameter PCB pin	0.6 mm
Nominal rated voltage	400/690 V
Number of poles	4 + PE
Pollution degree	2
Suitable for PCB thickness	2.4
Remark	For CQ 04/2 inserts

Max. rated current	30 A
Rated surge voltage	6 kV

Material	Thermoplastic
Material contact	Copper alloy
Plating of contact	Silver
Inflammability class of insulation material acc. with UL94	V0
