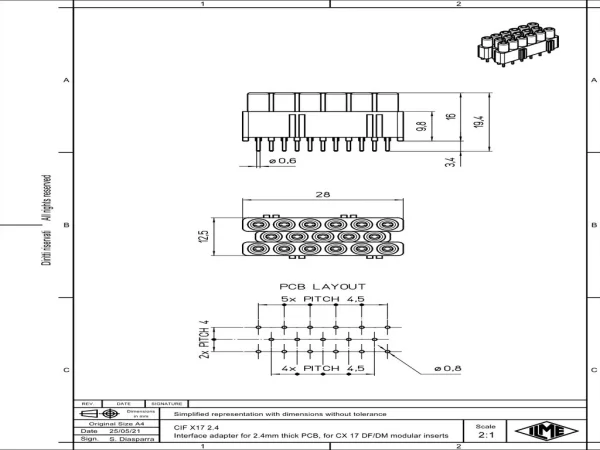

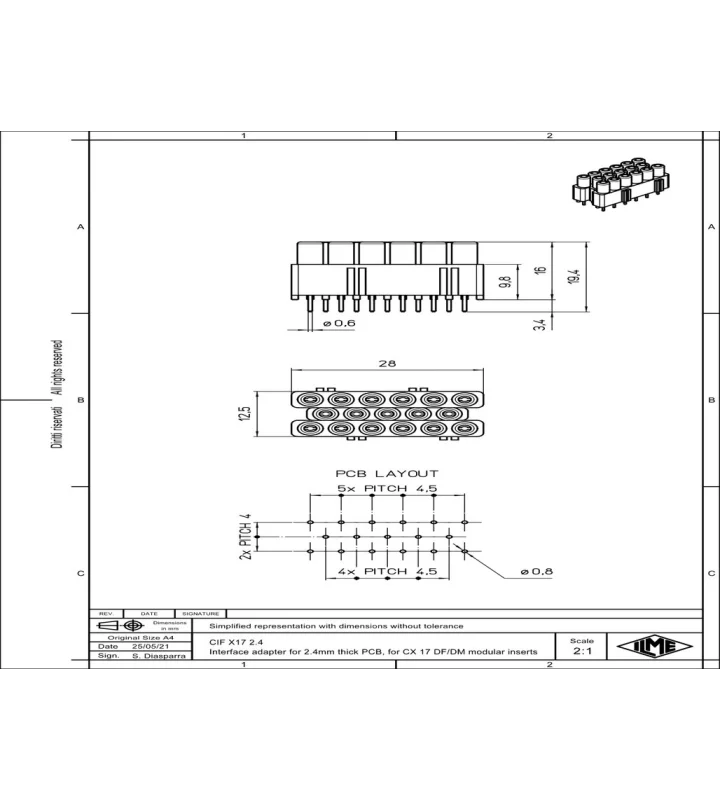

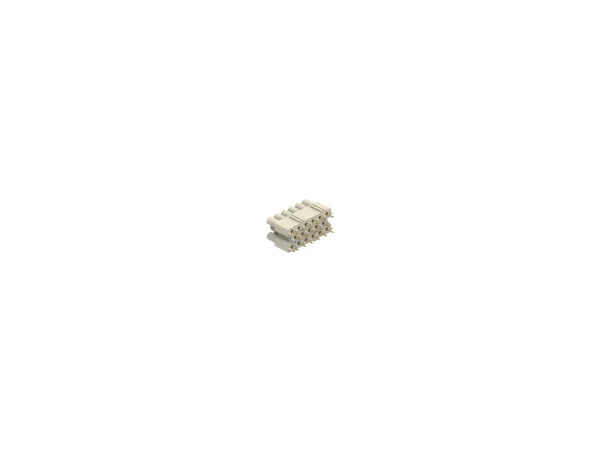

interface module, gold, 17p, plug, 7,5A, 160V, for PCB-size up to 2,4mm

CIF X17 2.4

Accessory type	PCB adapters
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Colour	Grey
Diameter PCB pin	0.6 mm
Nominal rated voltage	160 V
Number of poles	17
Pollution degree	3
Suitable for PCB thickness	2.4
Remark	For CX 17 DF/M inserts

Max. rated current	7.5 A
Rated surge voltage	2.5 kV

Material	Thermoplastic
Material contact	Copper alloy
Plating of contact	Gold
Inflammability class of insulation material acc. with UL94	V0
