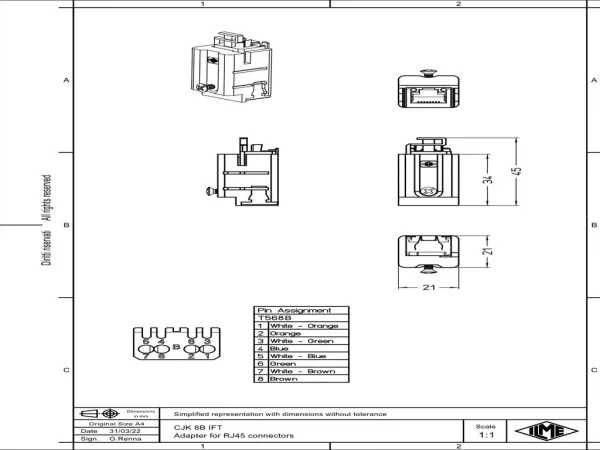

adaptor, size 21.21, with RJ45 IDC female insert, configuration T568B
CJK 8B IFT
Continue assembling your connector
Add the desired housings to fully configure your connector.
Specifications
General characteristics
| Product Type | Data connection insert |
|---|---|
| Insert series | CJK adapters |
| Number of contacts | 8 - RJ45 |
| Number of poles | 8 |
| Connection type | Data connection |
| Gender | Female |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
Electrical parameters
| Max. rated current | 1 A |
|---|---|
| Nominal rated voltage | 50 V |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
