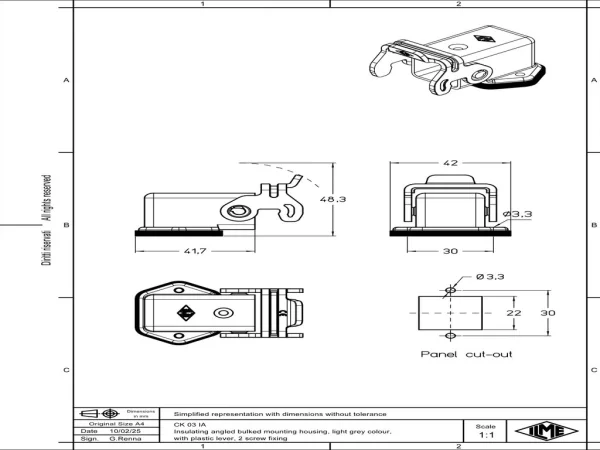

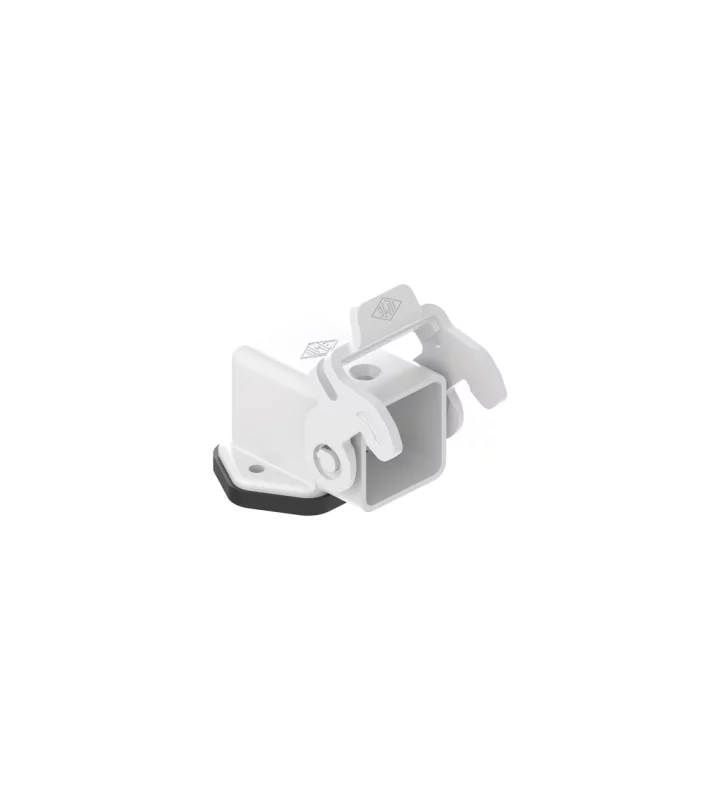

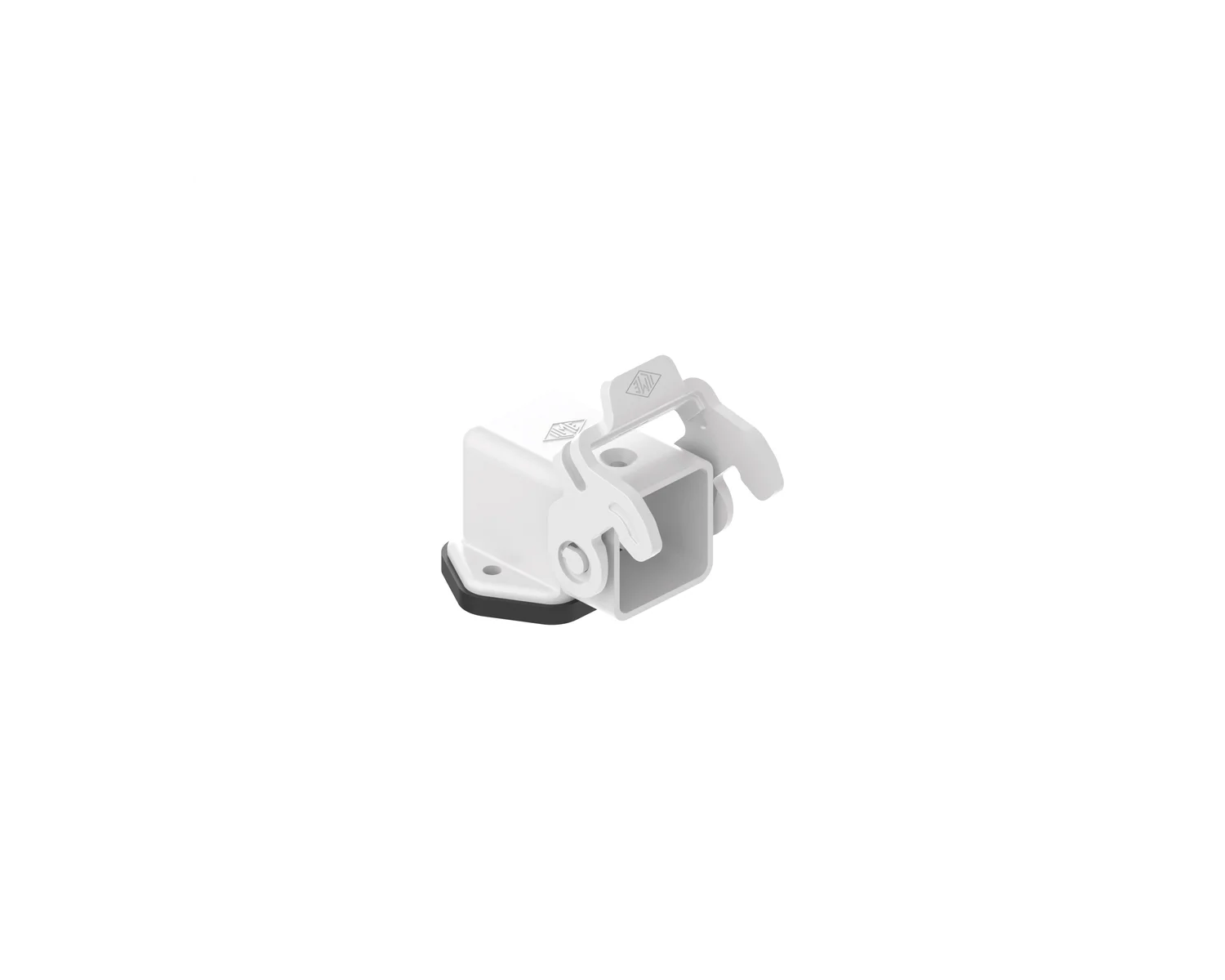

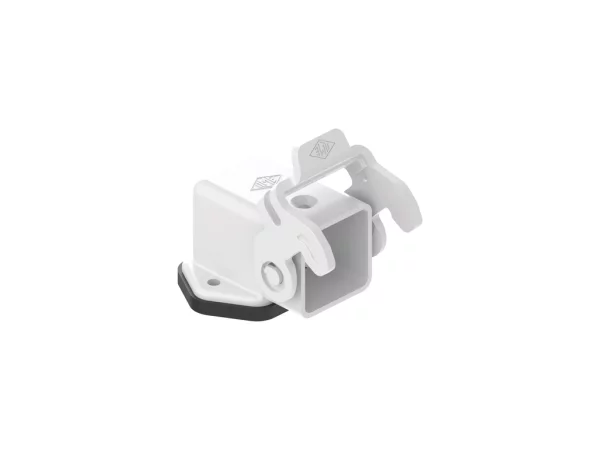

bulkhead mounting housing, angled, size 21.21, CK plastic, 1 lever

CK 03 IA

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Angled bulkhead mounting housing
Size	21.21
Enclosure series	CK
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	48.3 mm
Width	42 mm
Length	41.7 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Extra information	Corrosion resistant,UV resistant,With interlocking device
