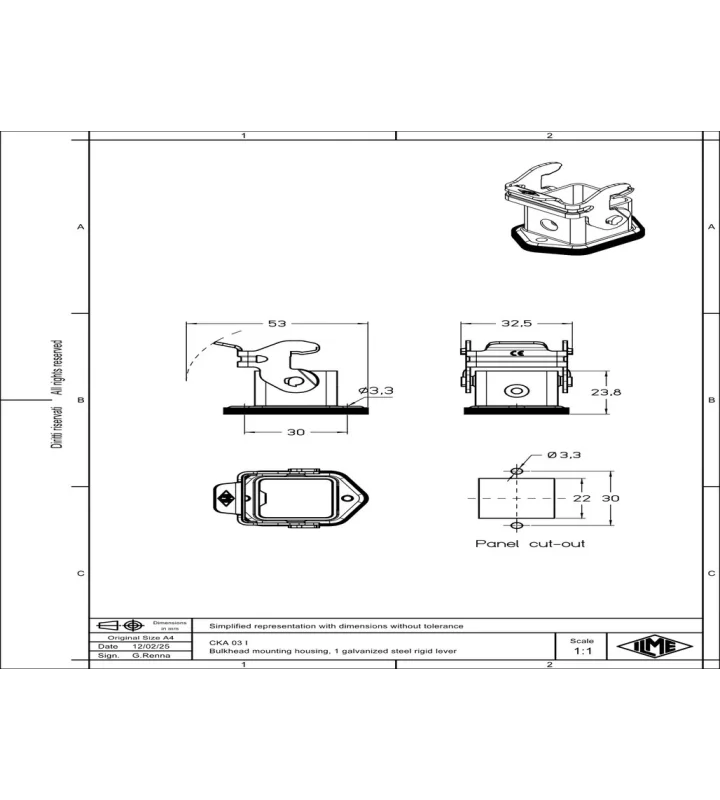

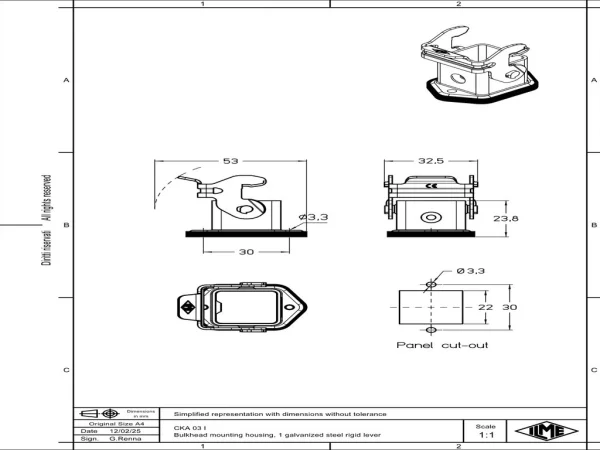

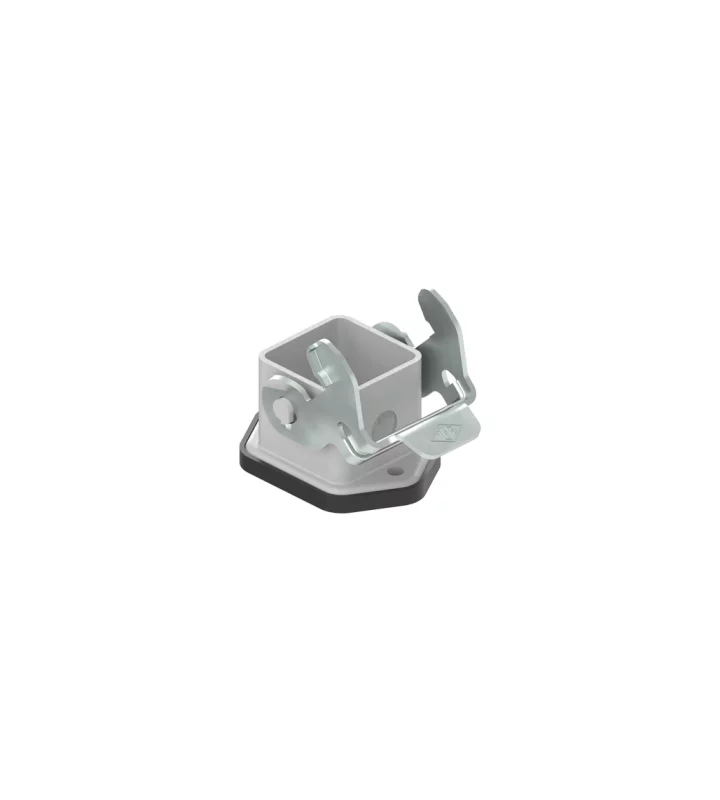

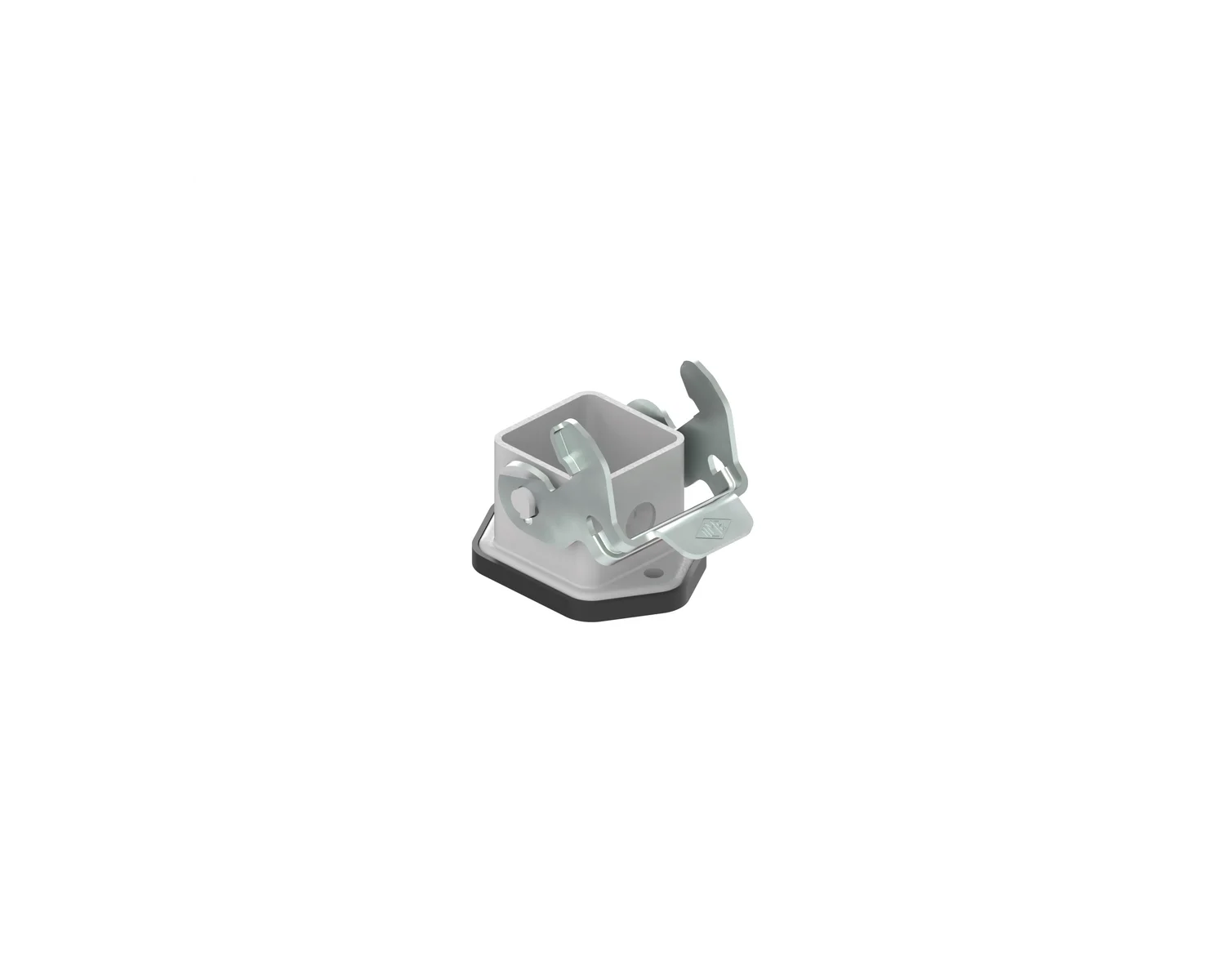

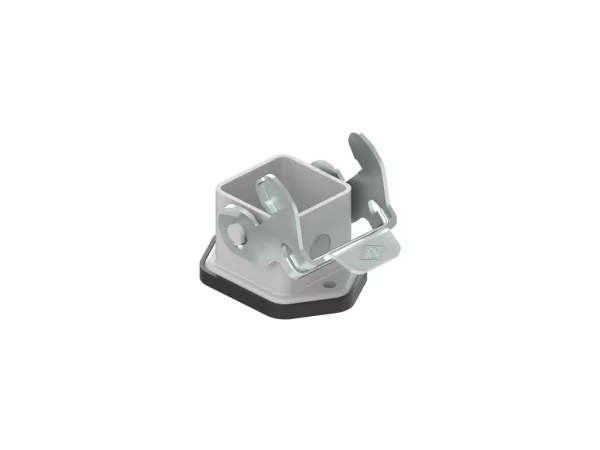

bulkhead mounting housing, size 21.21, CKA zinc, 1 lever steel

CKA 03 I

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	CKA
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	23.8 mm
Width	32.5 mm
Length	30 mm

Material housing	Zinc die-cast
Coating housing	With powder coating
Extra information	Corrosion resistant,UV resistant,With interlocking device
