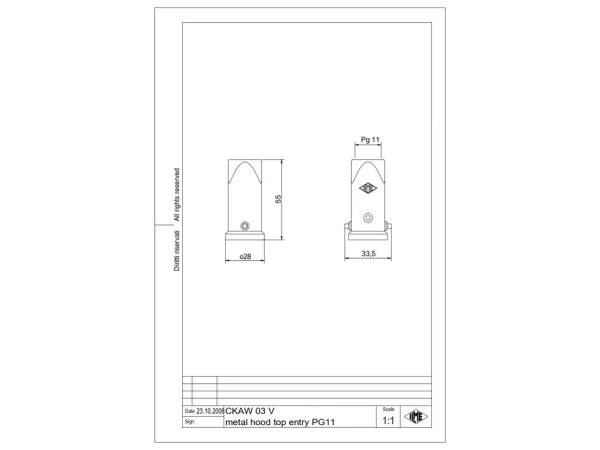

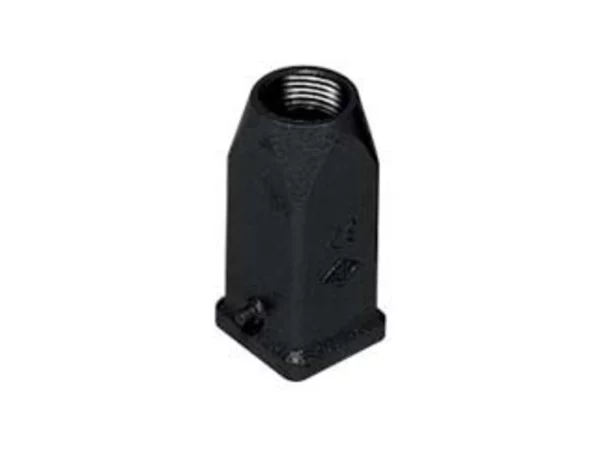

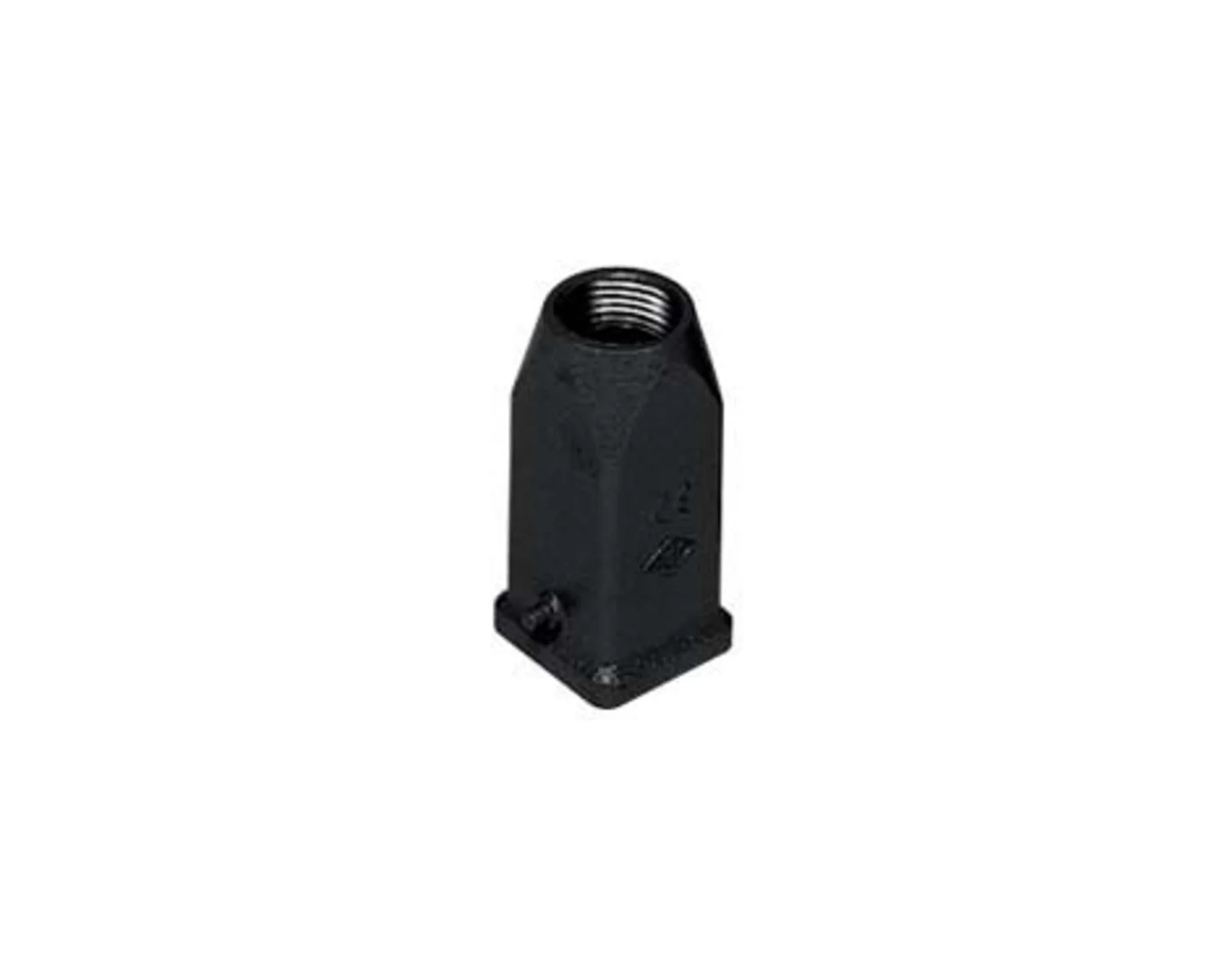

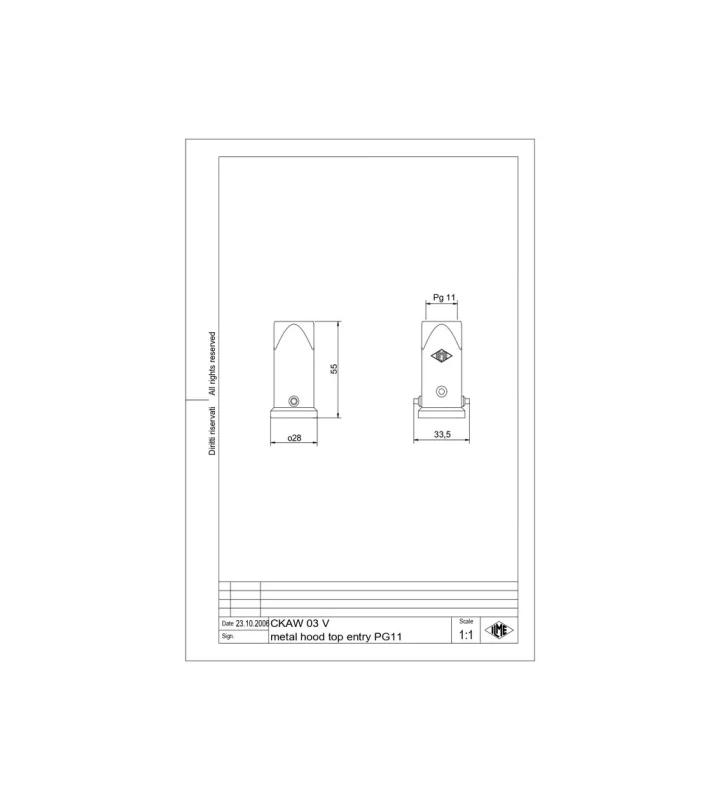

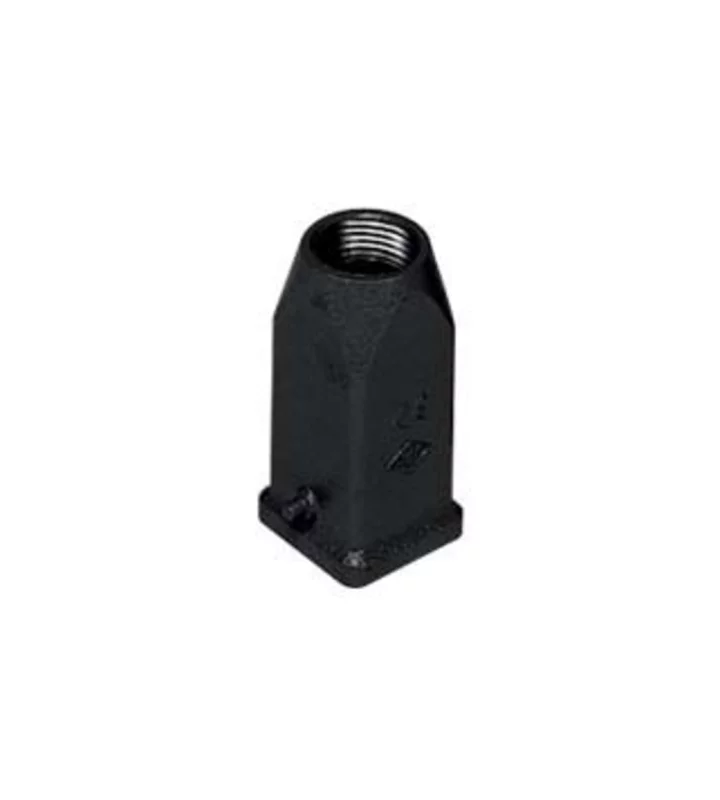

hood, size 21.21, W-TYPE alu, 2 pegs, 1xPG11 top
CKAW 03 V
Continue assembling your connector
Add the desired accessories and standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 21.21 |
| Enclosure series | W-TYPE |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | Pg11 |
| Position cable feed | Top entry |
| Height | 60.5 mm |
| Width | 28 mm |
| Length | 33.5 mm |
Material
| Material housing | Aluminium die-cast |
|---|---|
| Coating housing | With epoxy thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
