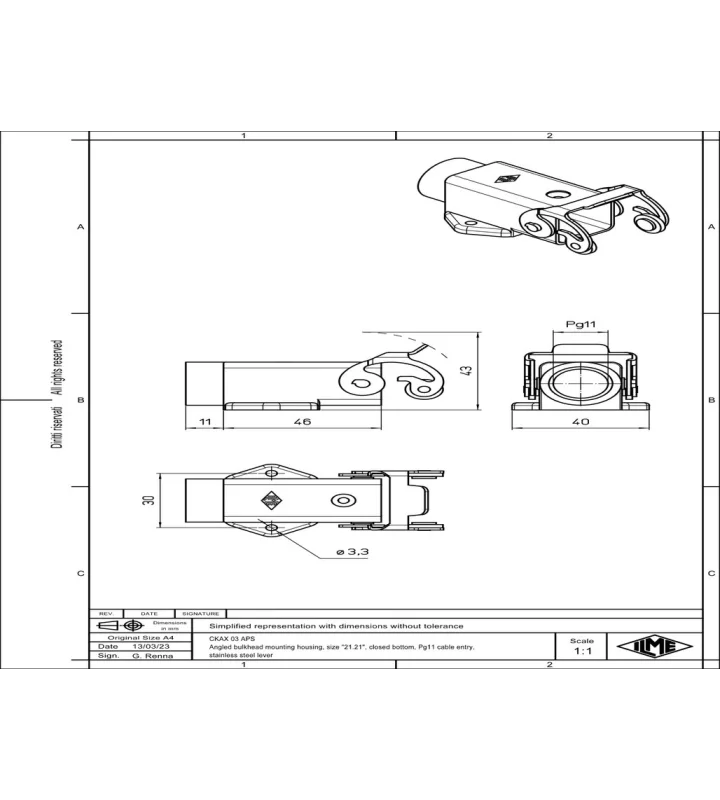

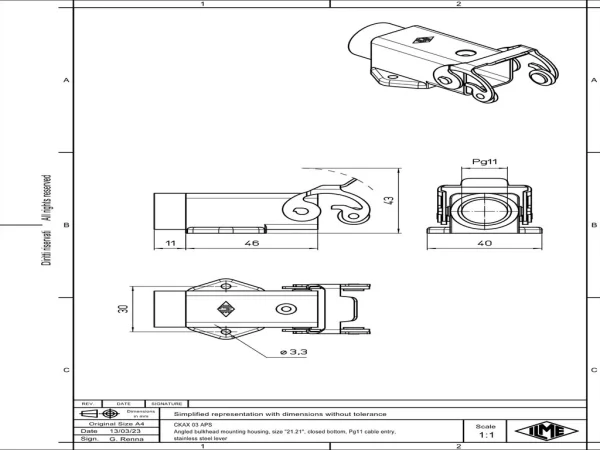

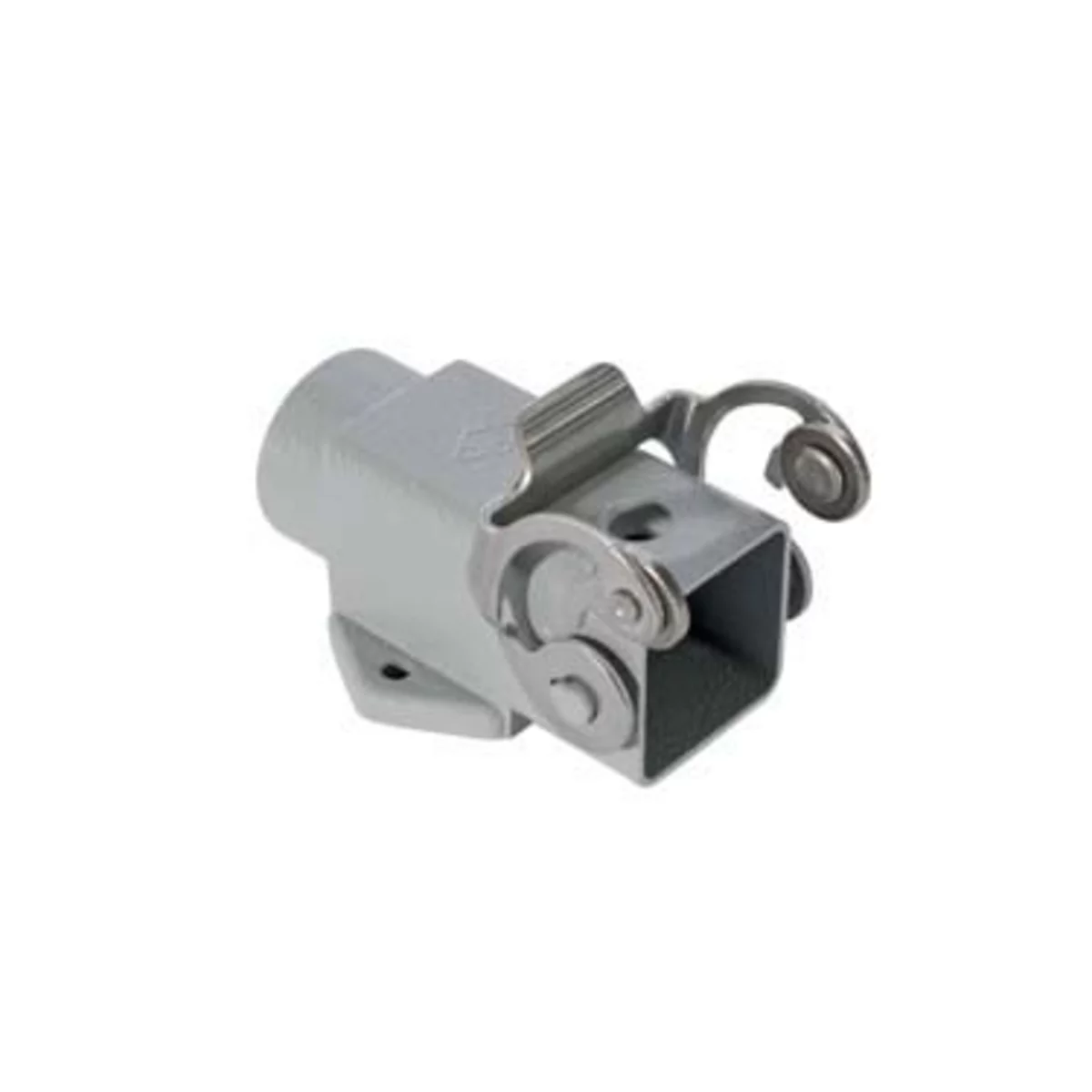

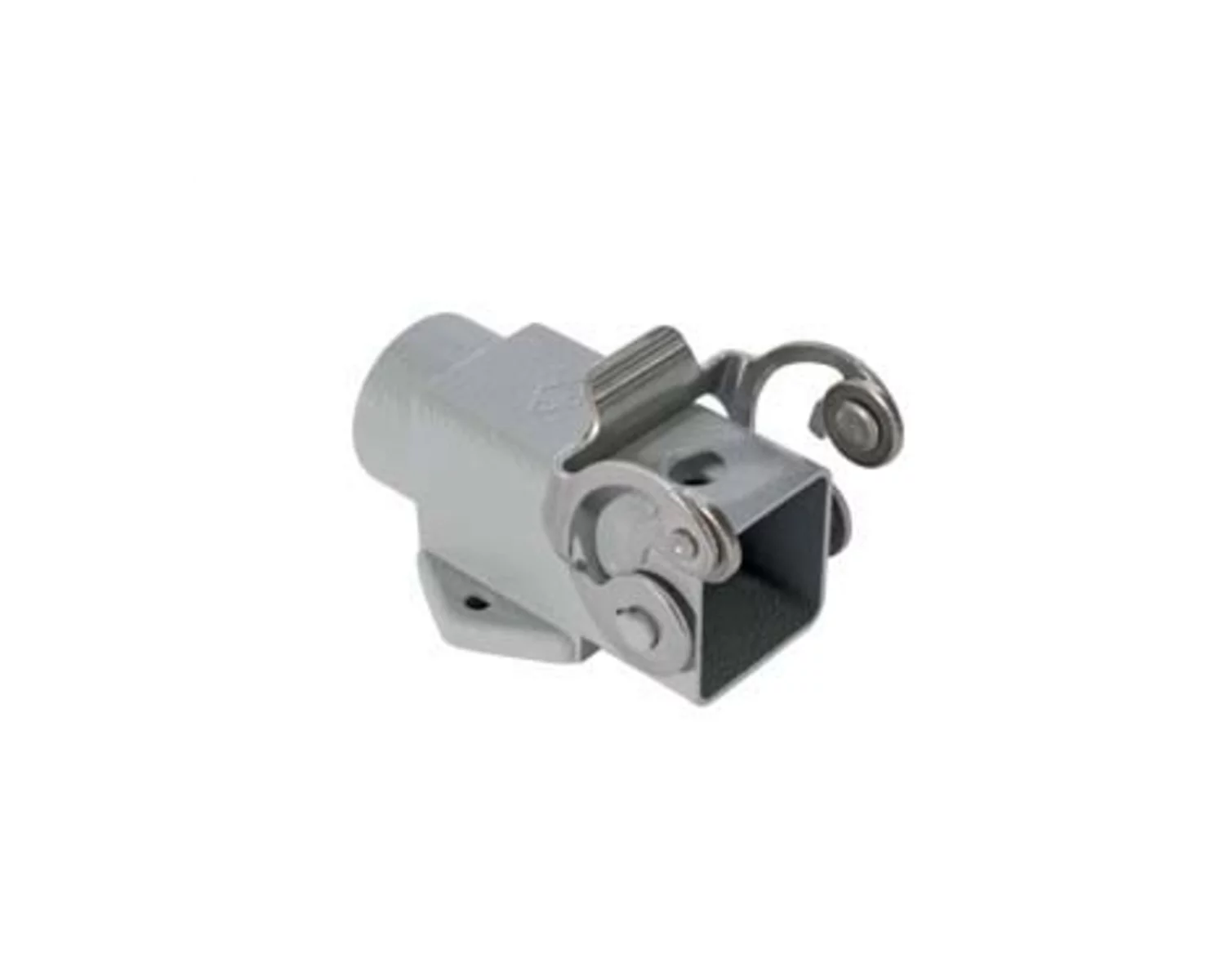

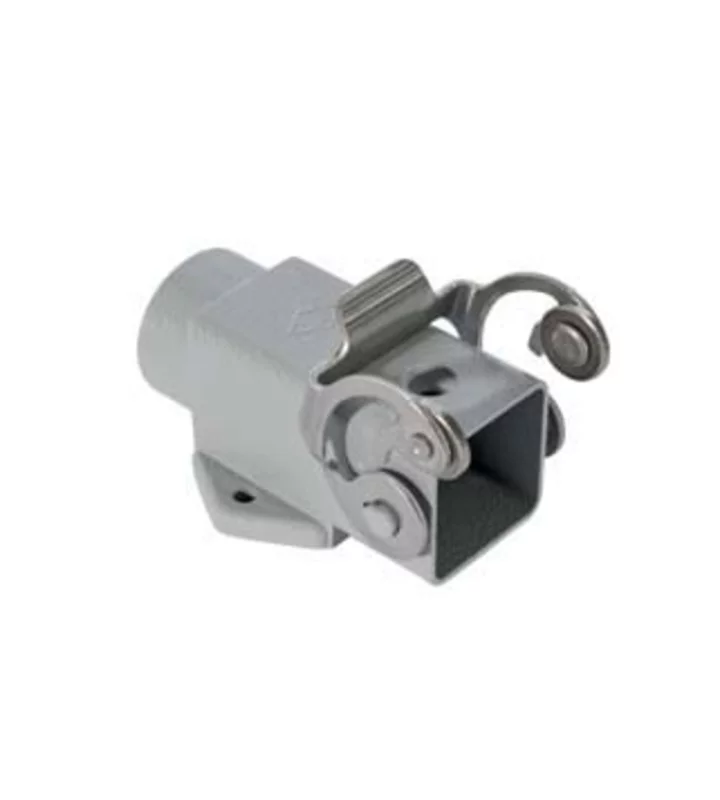

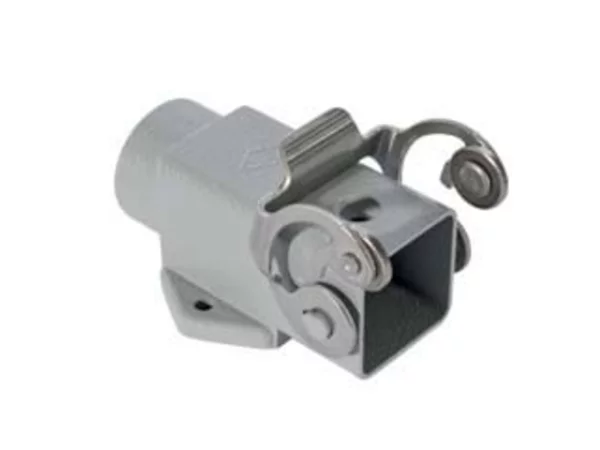

bulkhead mounting housing, angled, size 21.21, CKA zinc, 1 lever stainless steel, 1xPG11 side

CKAX 03 APS

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Angled bulkhead mounting housing
Size	21.21
Enclosure series	CKA
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	Pg11
Position cable feed	Side entry
Height	43.5 mm
Width	40 mm
Length	57 mm

Material housing	Zinc die-cast
Coating housing	With powder coating
Extra information	Corrosion resistant,UV resistant,With interlocking device
