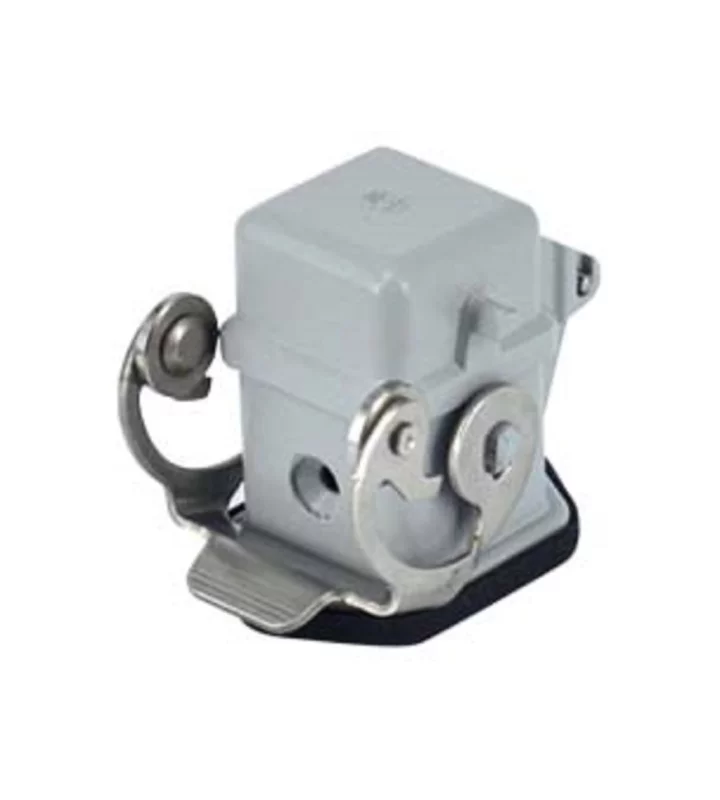

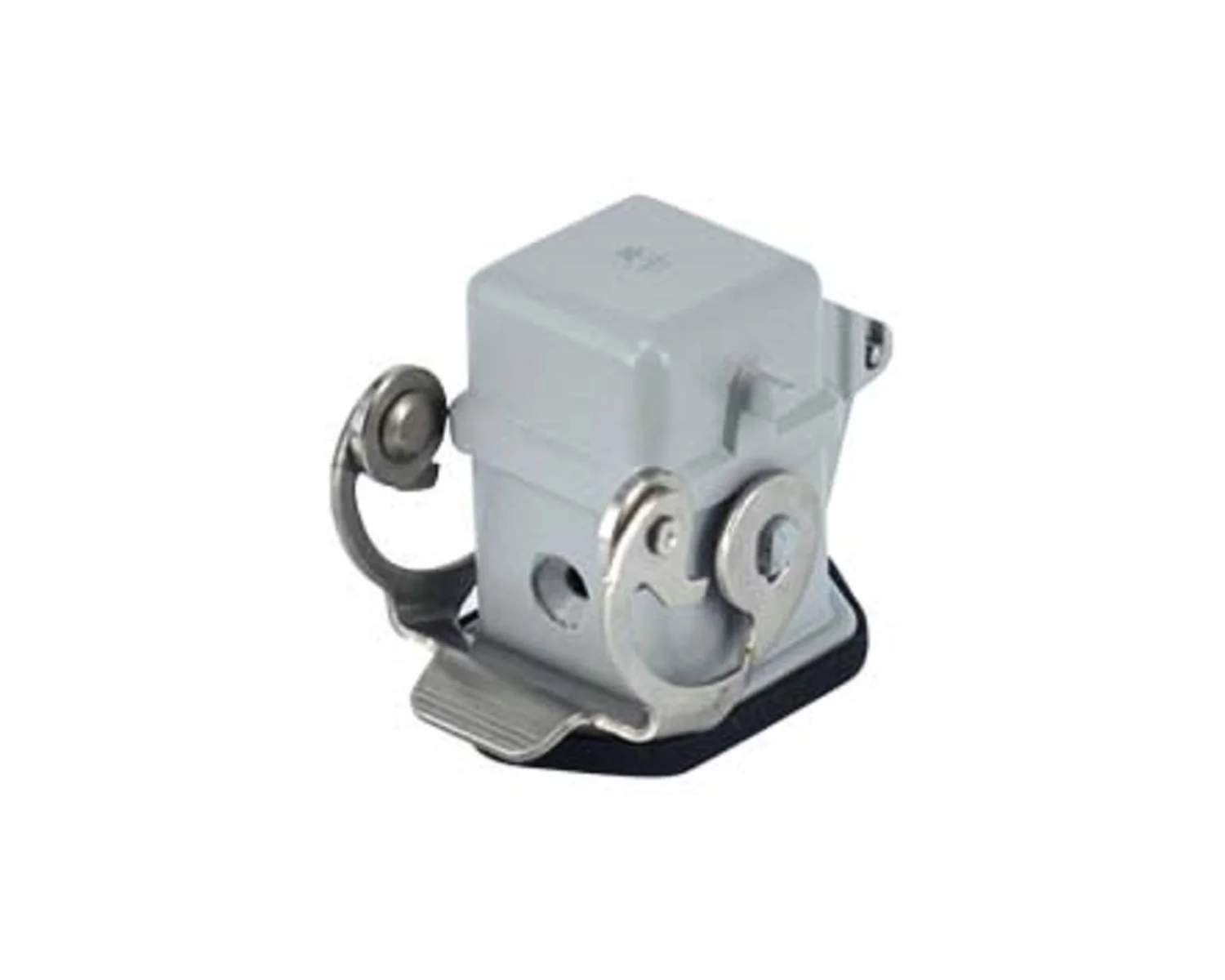

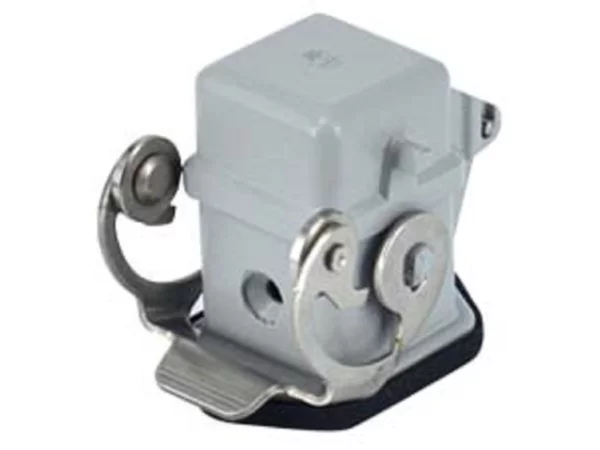

bulkhead mounting housing, size 21.21, CKA zinc, 1 lever stainless steel, spring cover, for female inserts

CKAX 03 ILS

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	CKA
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	40 mm
Width	33.5 mm
Length	62.5 mm

Material housing	Zinc die-cast
Coating housing	Uncoated
Extra information	Corrosion resistant,UV resistant,With hinged lid,With interlocking device
