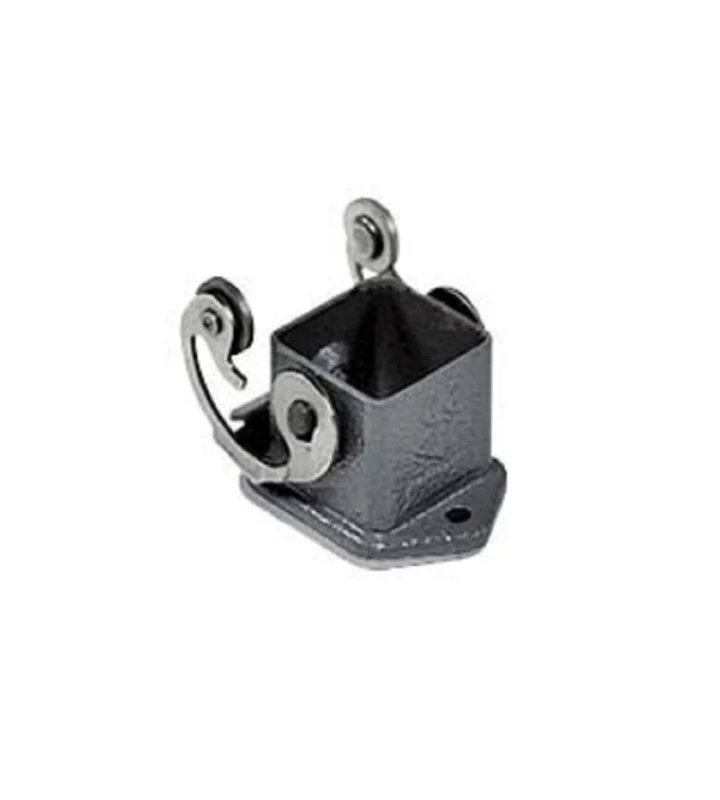

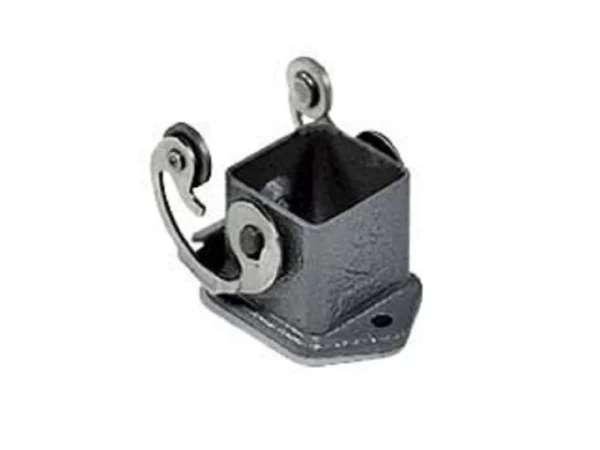

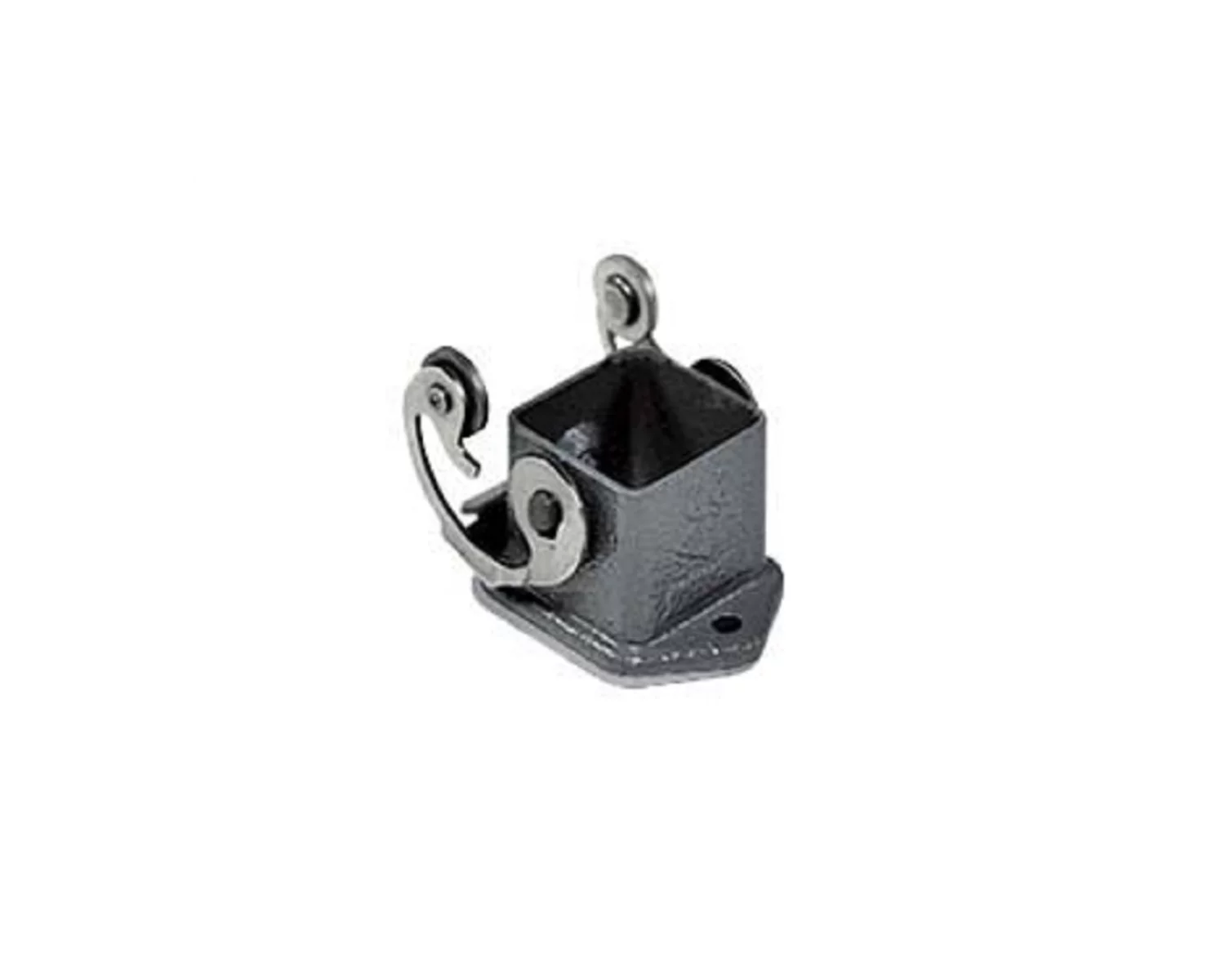

bulkhead mounting housing, size 21.21, E-Xtreme alu, 1 lever stainless steel
CKAXE 03 I
Continue assembling your connector
Add the desired accessories and standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | E-Xtreme® C-TYPE |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 24 mm |
| Width | 30 mm |
| Length | 50 mm |
| Remark | FKM gasket (-40°C…+180°C) or silicone gasket (-60°C…+180°C) |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
