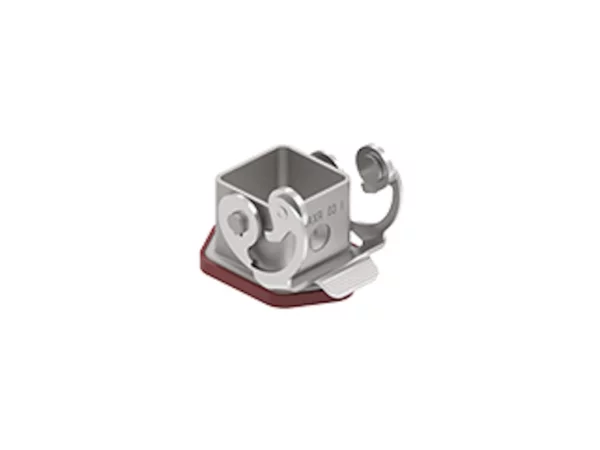

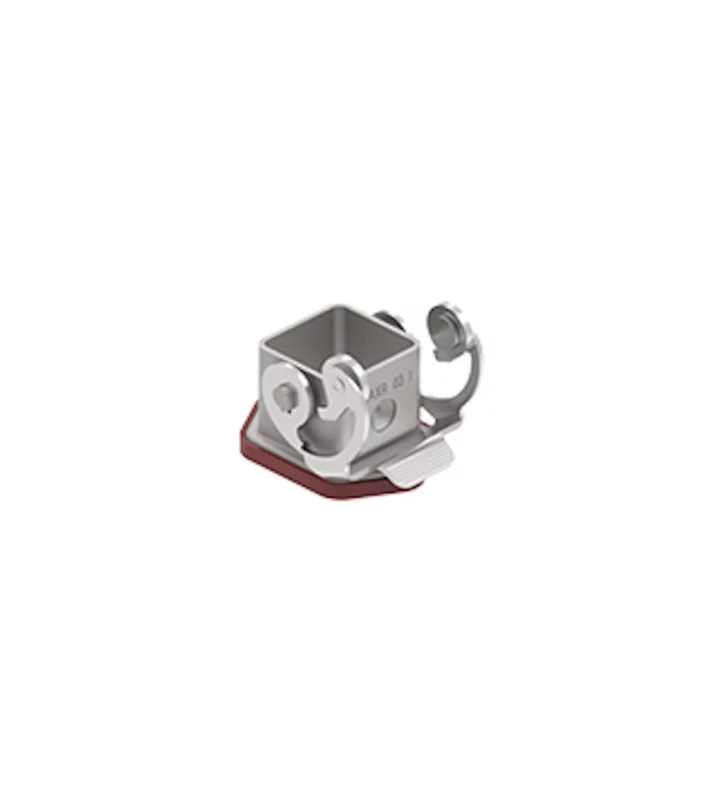

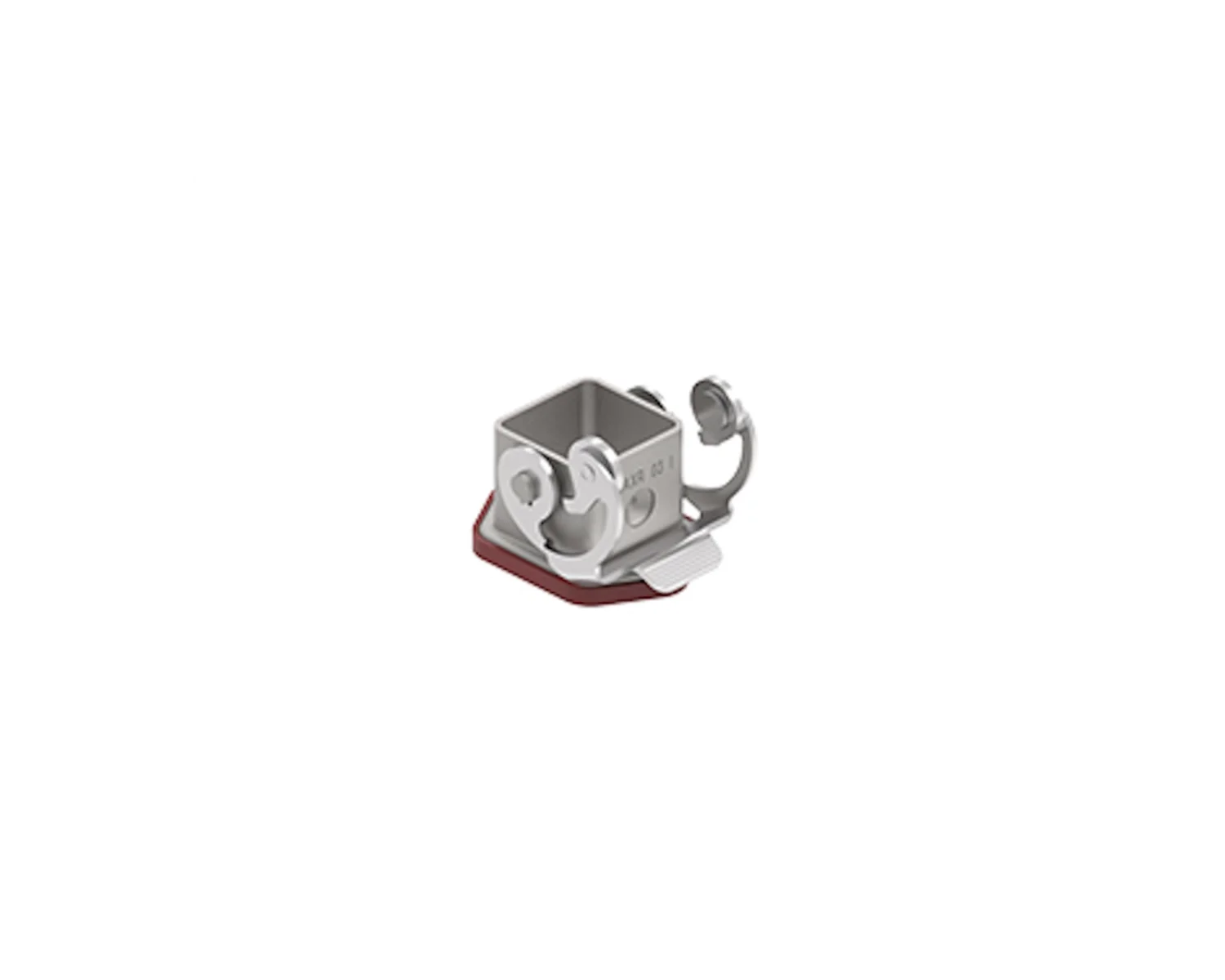

bulkhead mounting housing, size 21.21, 180°C zinc, 1 lever stainless steel

CKAXR 03 I

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	180°C
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry

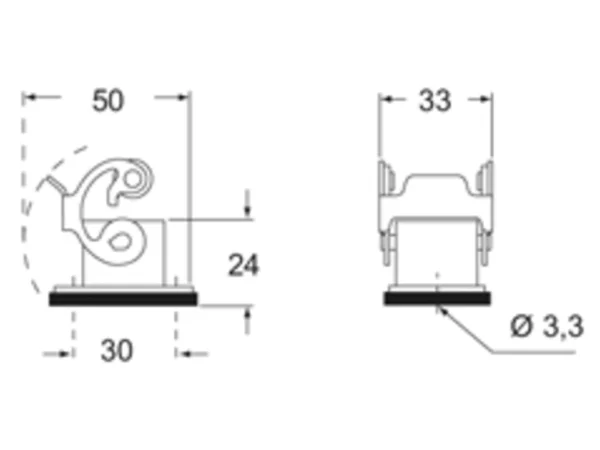

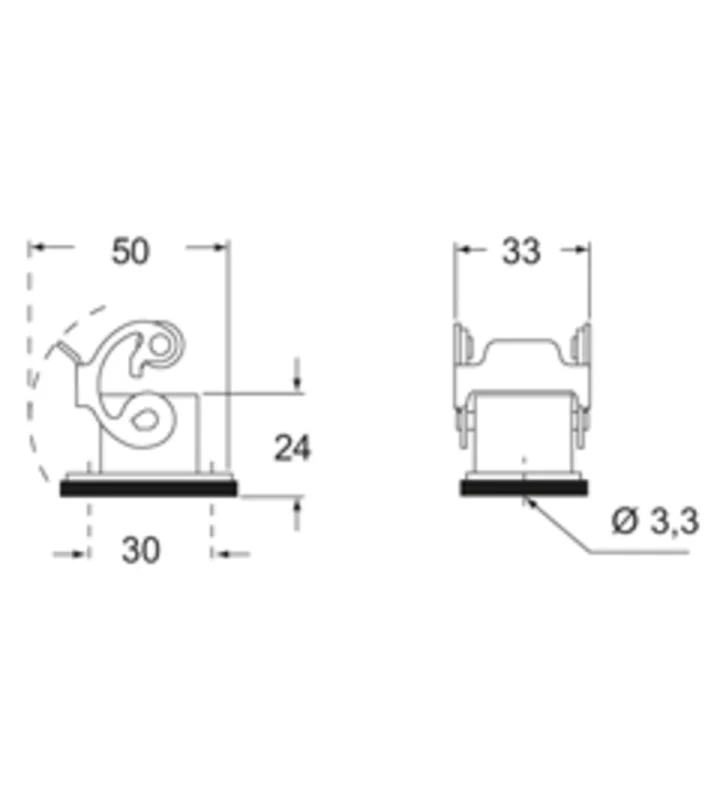

Height	24 mm
Width	33 mm
Length	50 mm

Material housing	Die cast aluminium alloy
Coating housing	With special thermosetting powder coating with high resistance to high temperatures
Inflammability class of insulation material acc. with UL94	V2
Extra information	Corrosion resistant,UV resistant,With interlocking device
