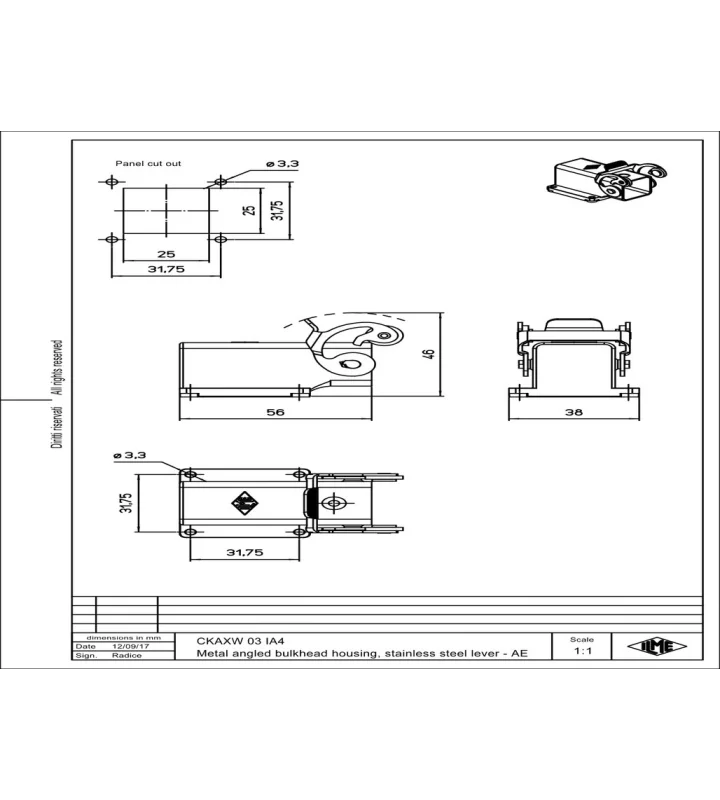

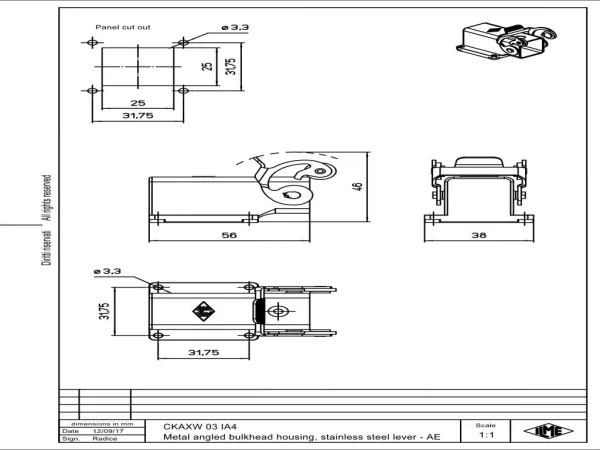

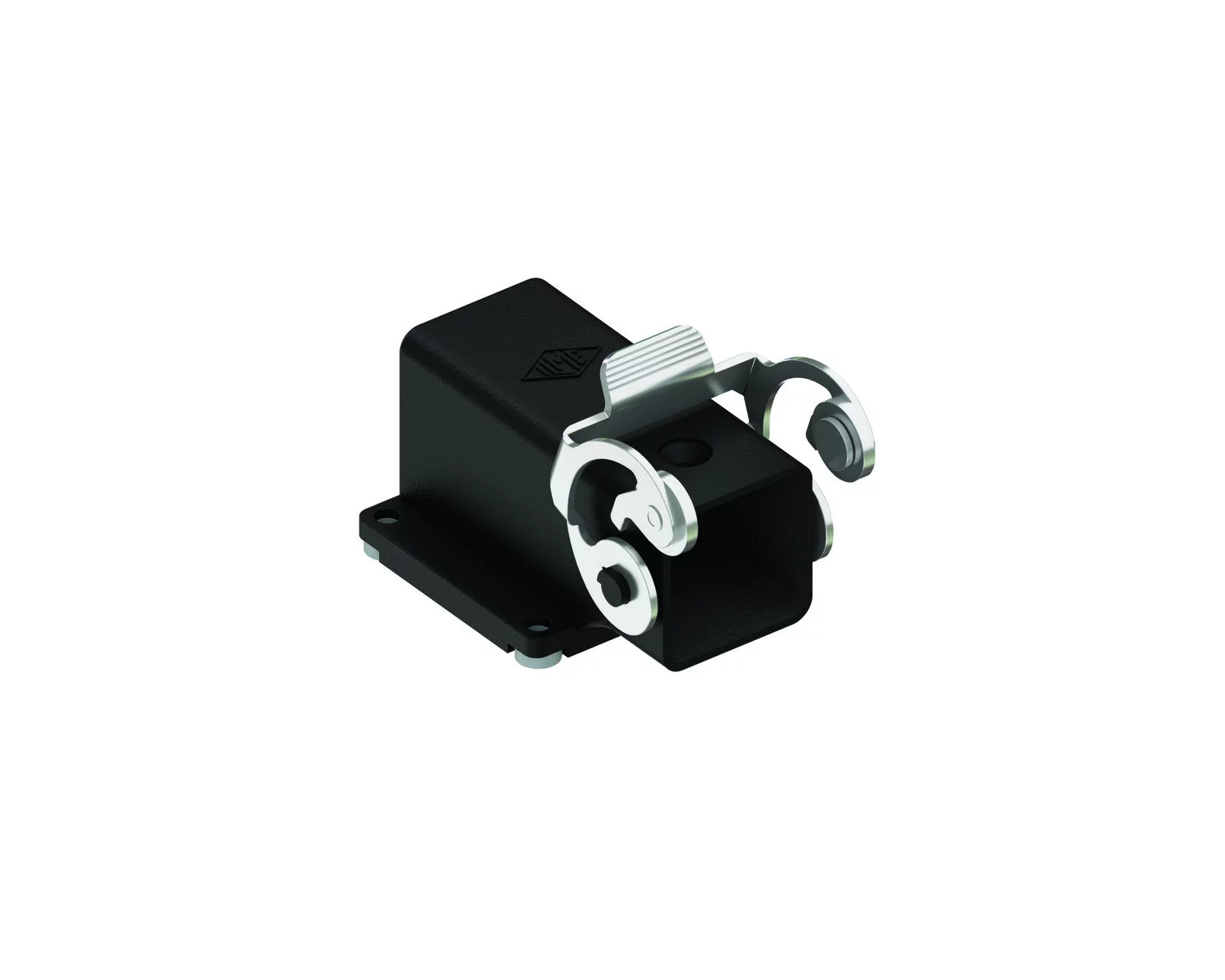

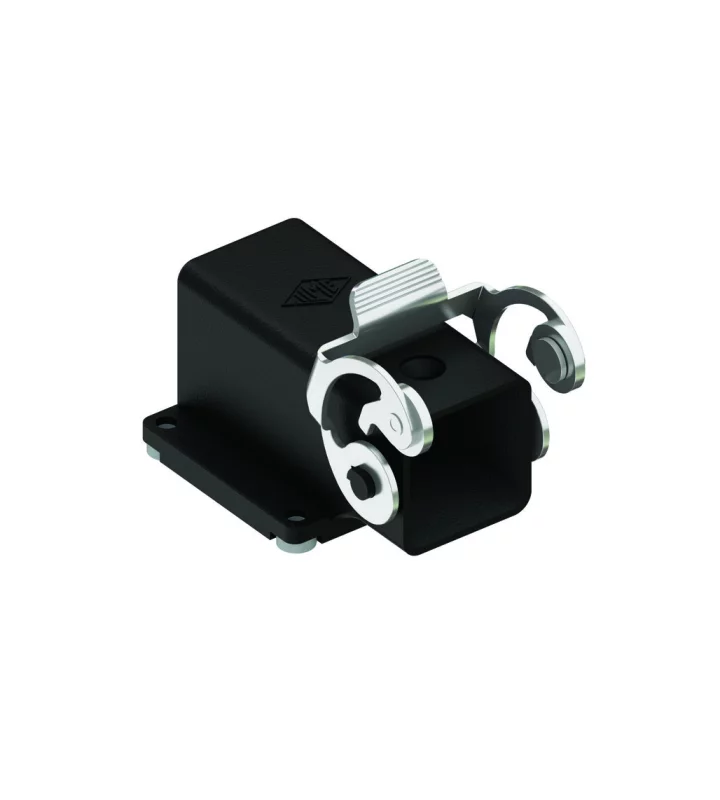

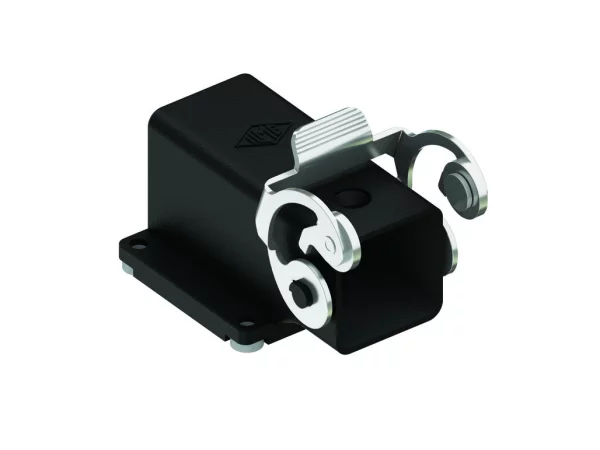

bulkhead mounting housing, angled, size 21.21, W-type zinc, 1 lever stainless steel, large cable gland

CKAXW 03 IA4

Add the desired standard inserts to fully configure your connector.

Enclosure type	Angled bulkhead mounting housing
Size	21.21
Enclosure series	W-TYPE
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	46 mm
Width	38 mm
Length	56 mm

Material housing	Chromate treated die cast
Coating housing	With epoxy thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
