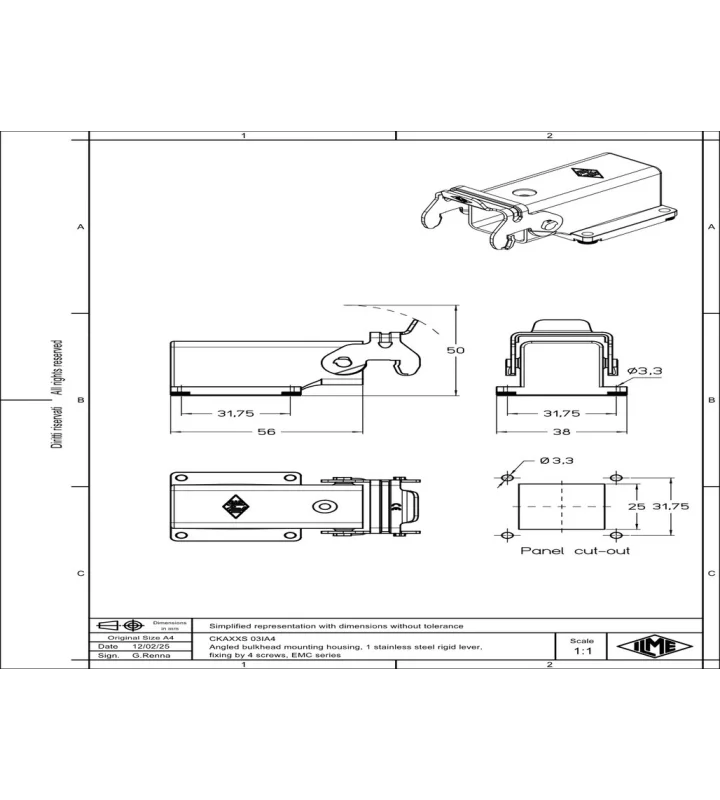

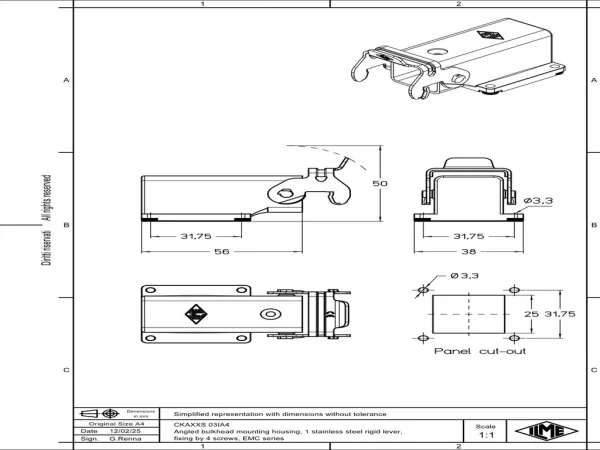

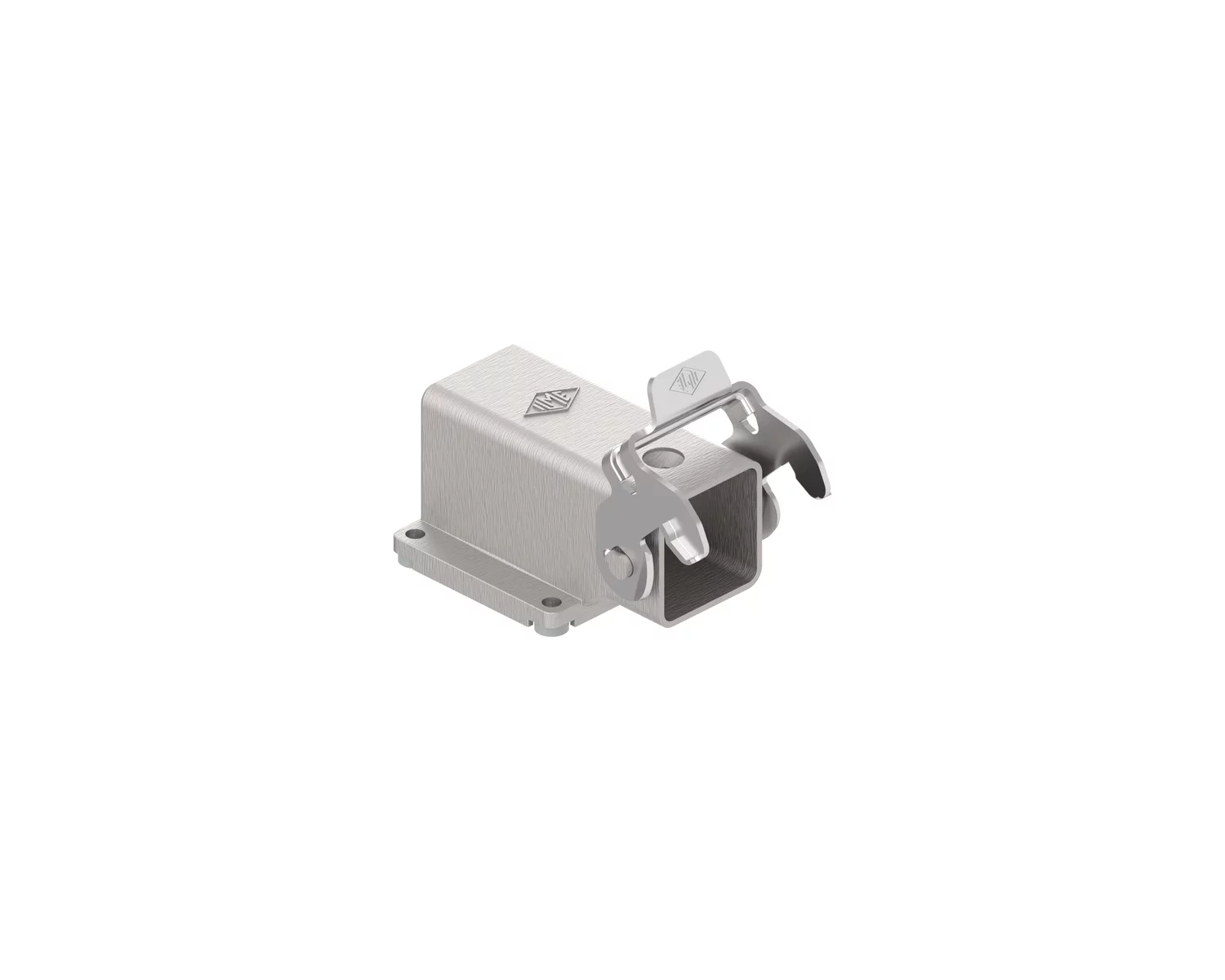

bulkhead mounting housing, angled, size 21.21, EMC zinc, 1 rigid lever stainless steel, large cable gland

CKAXXS 03IA4

Add the desired standard inserts to fully configure your connector.

Enclosure type	Angled bulkhead mounting housing
Size	21.21
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	53 mm
Width	38 mm
Length	56 mm

Material housing	Zinc die-cast
Coating housing	Chromate coating
