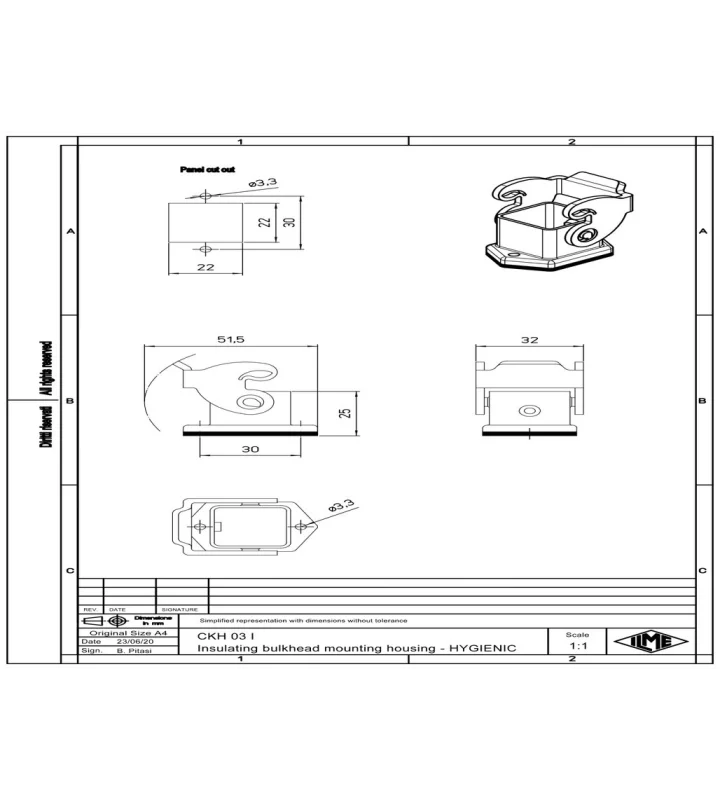

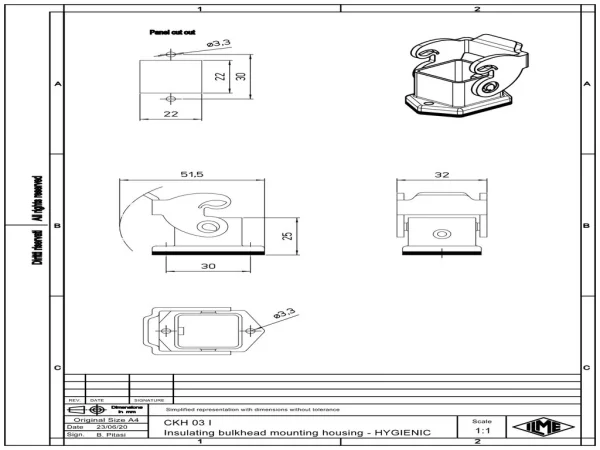

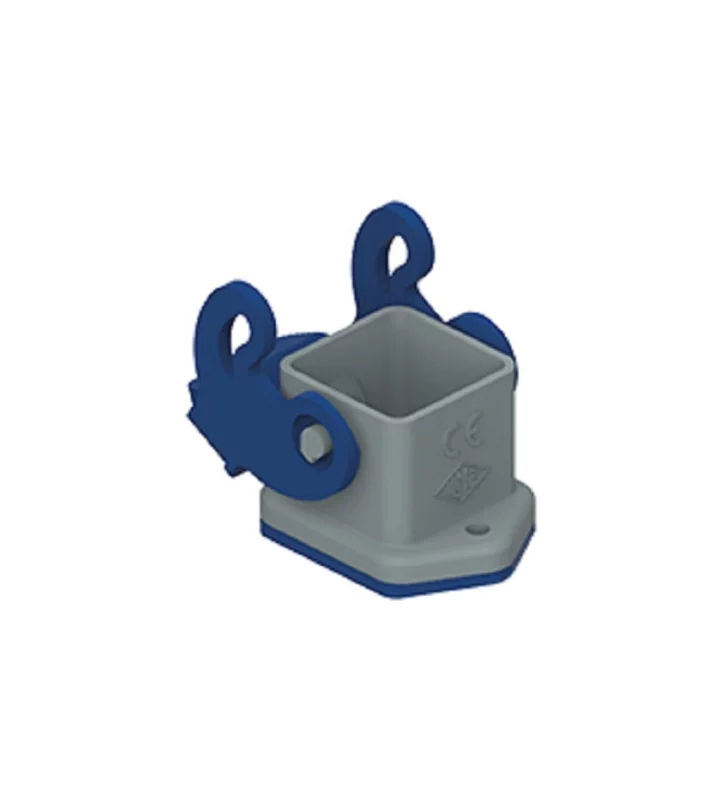

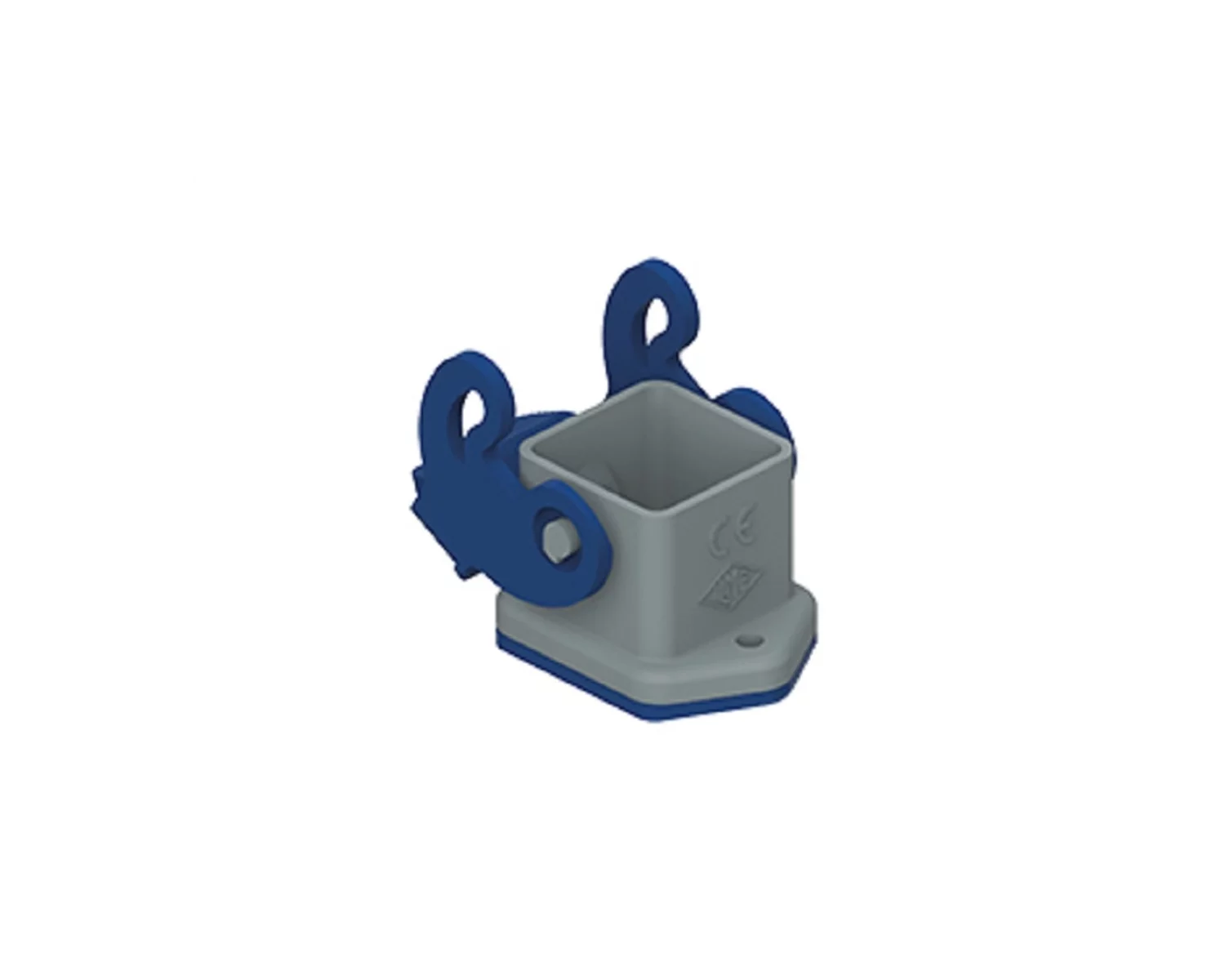

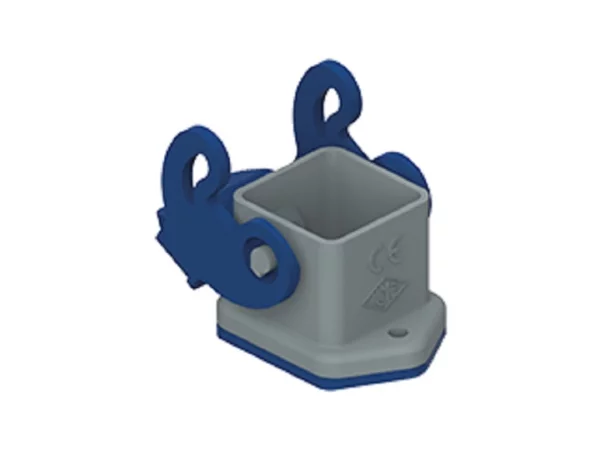

bulkhead mounting housing, size 21.21, CKH plastic, 1 lever, sealing kit

CKH 03 I

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	CKH
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	70 °C
Operation lower temperature	-40 °C
Operation upper temperature	70 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	25 mm
Width	32 mm
Length	30 mm

Material housing	Polyamide
