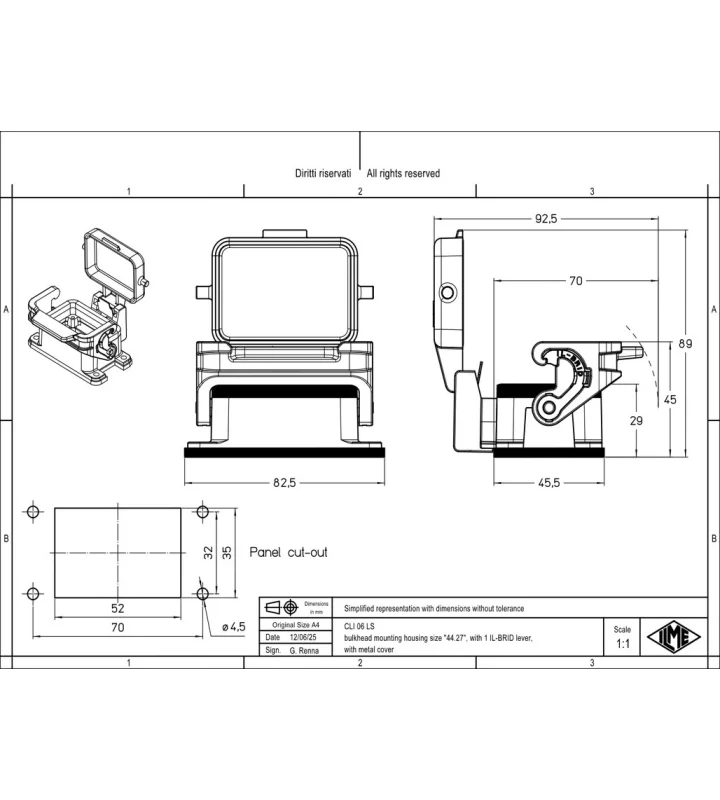

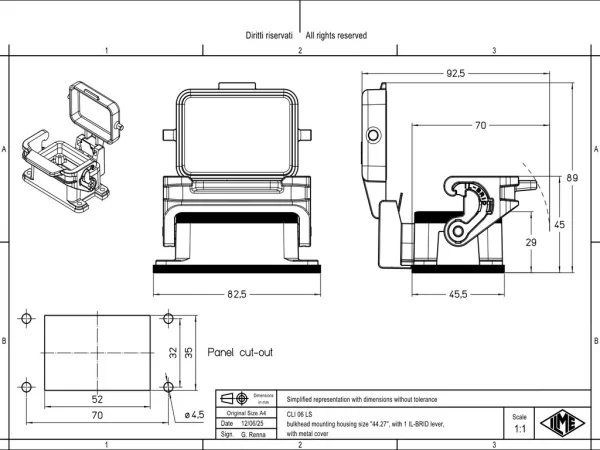

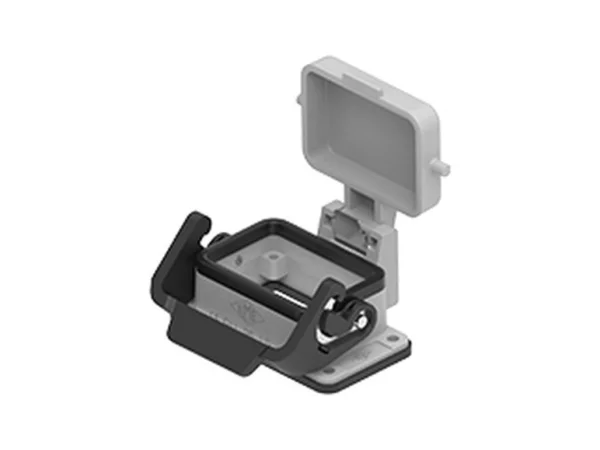

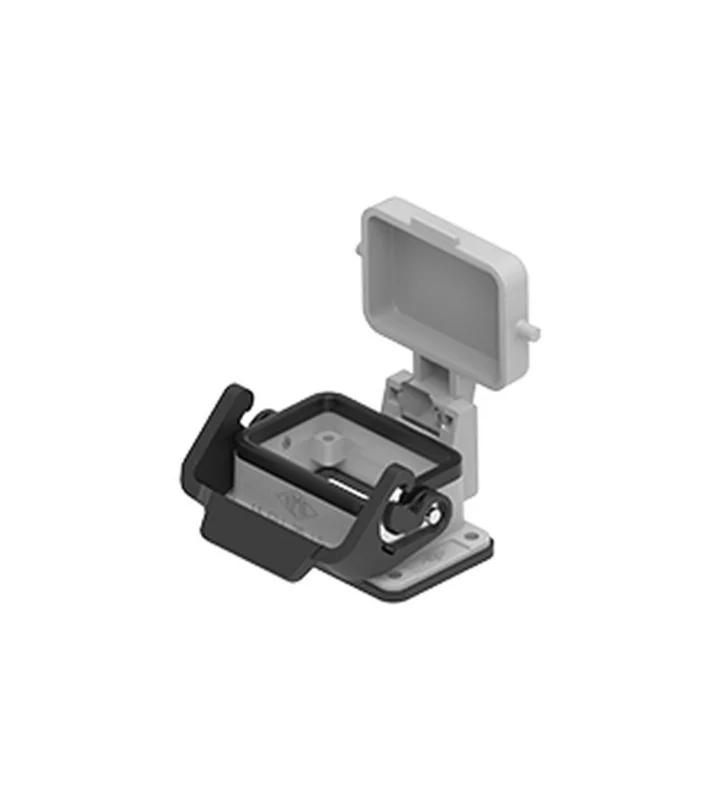

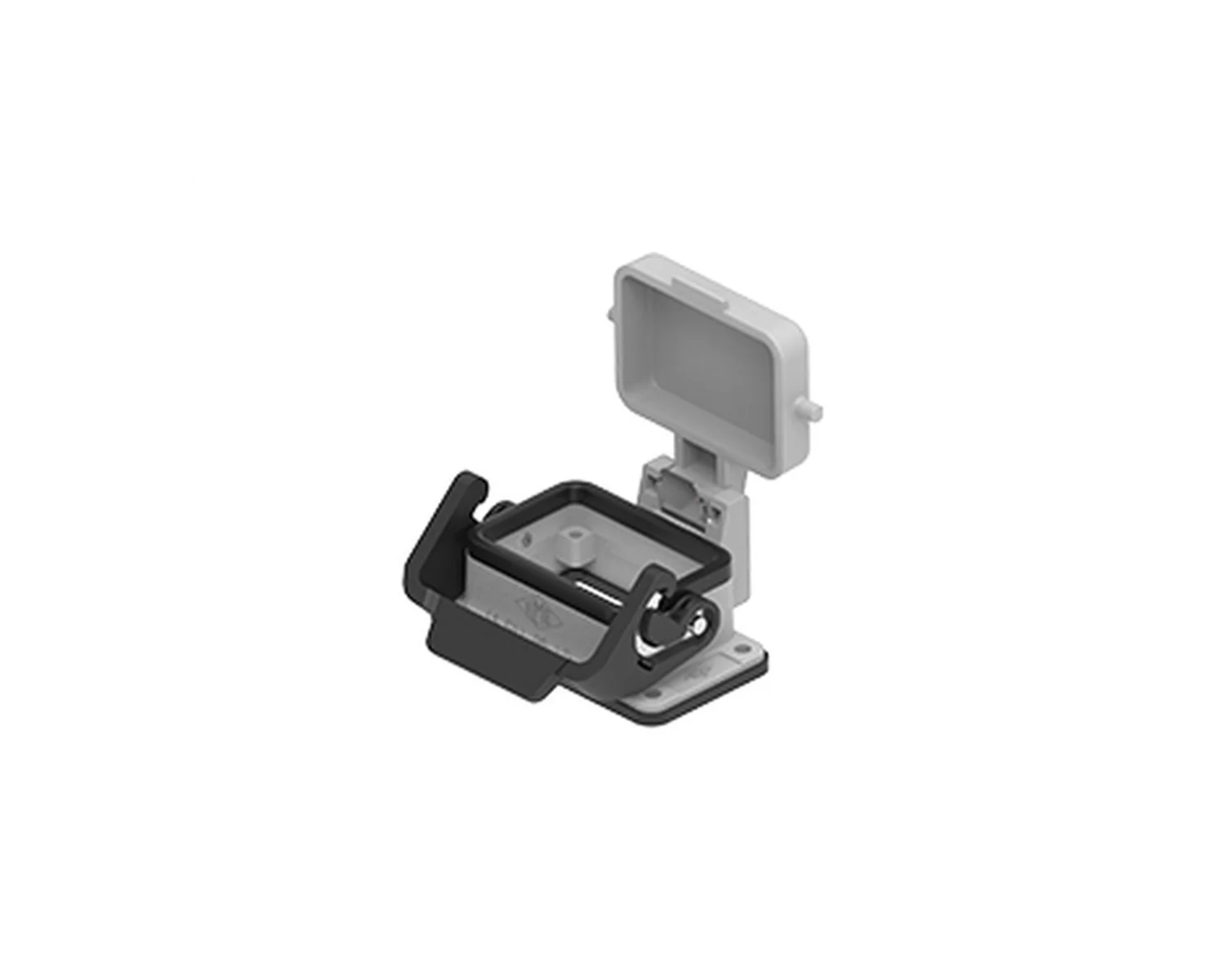

bulkhead mounting housing, size 44.27, IL-BRID stainless steel, 1 lever

CLI 06 LS

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	44.27
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	92.5 mm
Width	45.5 mm
Length	82.5 mm

Material housing	Stainless steel
