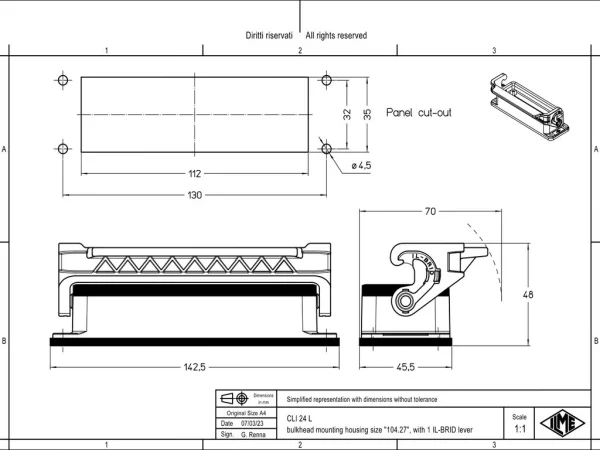

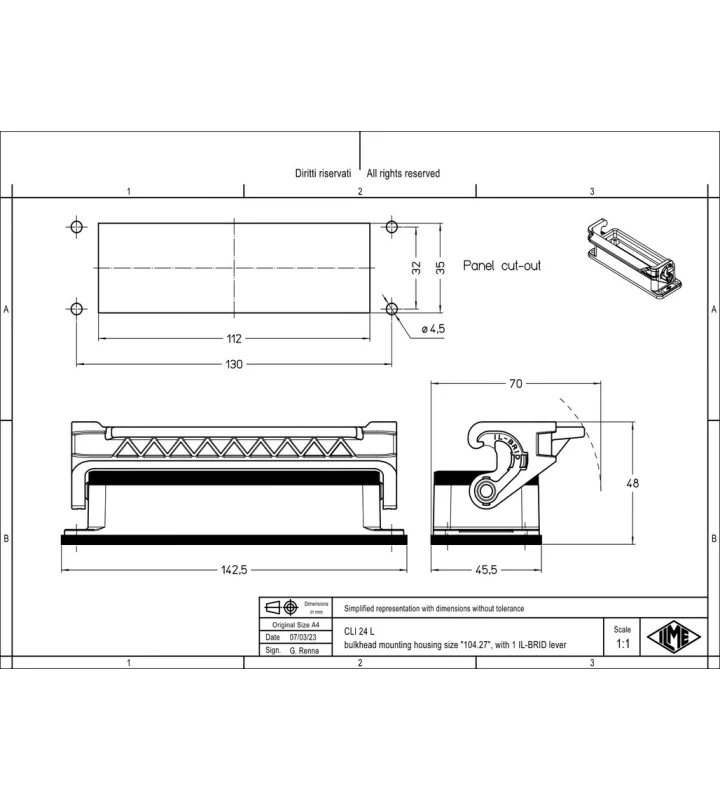

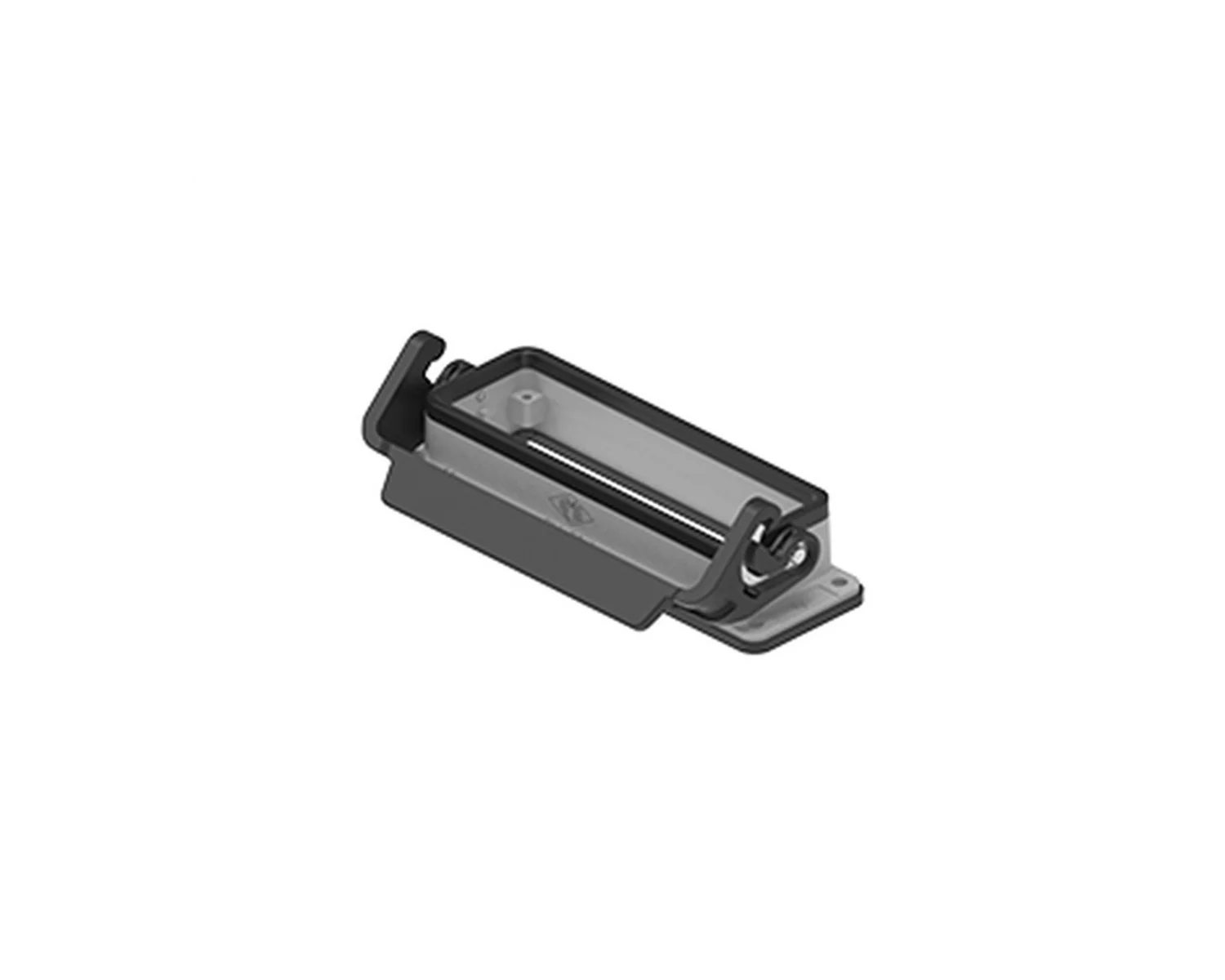

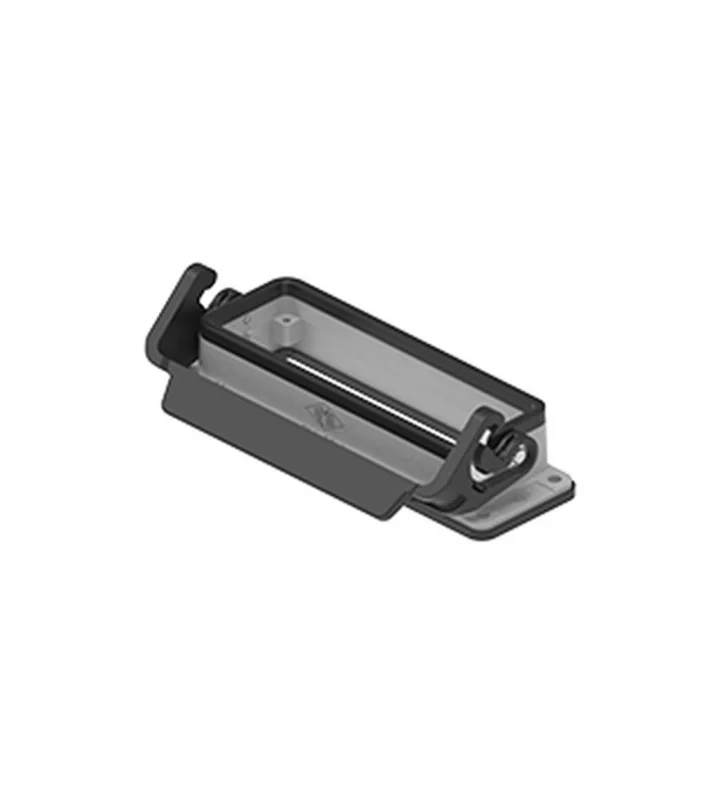

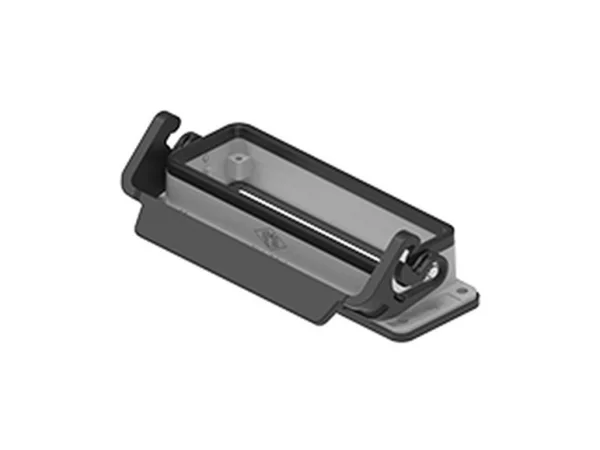

bulkhead mounting housing, size 104.27, IL-BRID stainless steel, 1 lever

CLI 24 L

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	104.27
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	48 mm
Width	45.5 mm
Length	142.5 mm

Material housing	Stainless steel
